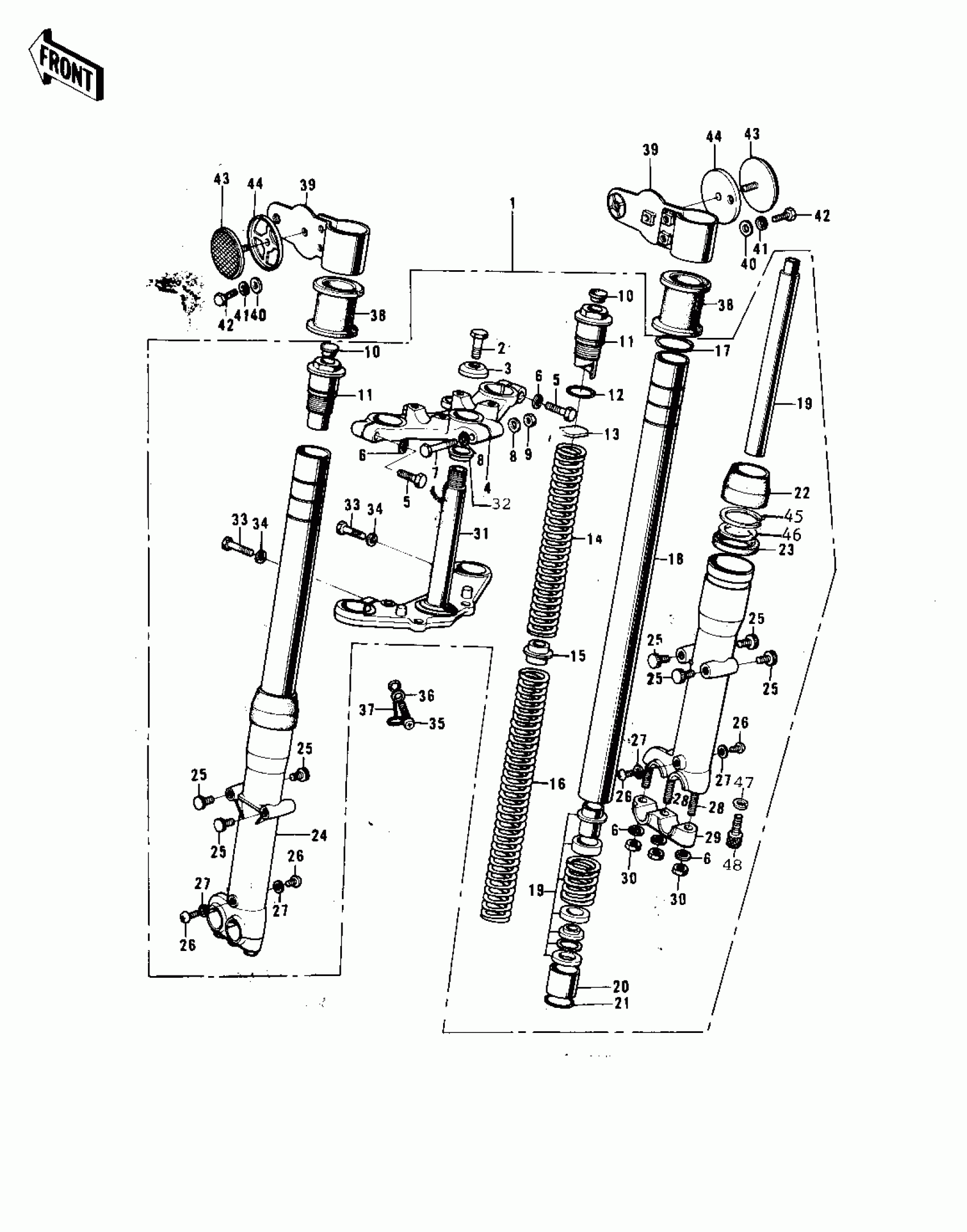

Kawasaki F7-D FRONT FORK Diagram
#
1~34
FRONT FORK ASSY
44001-064
Unavailable
1~34
FORK-FRONT,BUFF
44001-064-80
Unavailable
1~34
FORK-FRONT
44001-102
Unavailable
1
BOLT STRNG STEM HEAD
44041-007
Unavailable
2
WASHER STRNG STEM HD
44043-016
Unavailable
3
HEAD-STEERING STEM
44039-035
Unavailable
3
HEAD-STEERING STEM
44039-049
Unavailable
4 4403
STEM-STEERING
44037-054
Unavailable
5
CIRCLIP
44044-011
Unavailable
6
TUBE-FORK INNER
44013-027
Unavailable
7,29
CYLINDER-FORK
44022-005
Unavailable
8
DUST SHIELD FORK
44010-006
Unavailable
9
WASHER-OIL SEAL FIT
44043-045
Unavailable
10
OIL SEAL
92049-1049
Unavailable
11
TUBE,LH,FORK OUTER
44005-034-80
Unavailable
11
TUBE,LH,FORK OUTER
44005-034-80
Unavailable
12
CAP
44062-002
Unavailable
13
SCREW PAN HEAD 4X8
220B0408
Unavailable
14
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
15
BOLT-STUD,8X30
172G0830
Unavailable
16
HOLDER-FRONT AXLE
44063-002
Unavailable
17
WASHER SPRING 8MM
461F0800
Unavailable
17
WASHER SPRING 8MM
461F0800
Unavailable
18
NUT,8MM
311B0800
Unavailable
18
NUT,8MM
311B0800
Unavailable
19
CAP,RUBBER
14039-001
Unavailable
19
CAP-FORK TOP BOLT
44062-004
Unavailable
20
BOLT-FORK TOP
44041-035
Unavailable
20
BOLT-FORK TOP
44041-046
Unavailable
21
'O' RING INNER TUBE
44046-014
Unavailable
25
WASHER-FORK SPRG SEAT
44029-016
Unavailable
26
SPRING-FORK,SHORT
44026-035
Unavailable
27
GUIDE-FORK SPRING
44028-019
Unavailable
28
SPRING-FORK,LONG
44026-034
Unavailable
30
PISTON-FORK
44018-004
Unavailable
31
CIRCLIP
44044-010
Unavailable
32
BOLT
92001-1578
Unavailable
32
BOLT-STEERING STEM HD
44041-044
Unavailable
33
BOLT HEX HEAD 10X32
113B1032
Unavailable
34
WASHER SPRING 10MM
461F1000
Unavailable
35
RACE,LOWER BEARING
92047-004
Unavailable
36
CLAMP
92037-108
Unavailable
37
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
38
BOLT,6X10
112G0610
Unavailable
39
BOLT-UPSET
112G0618
Unavailable
40
WASHER SPRING 6MM
461F0600
Unavailable
41
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
42
BRACKET-HEAD LAMP
23064-006-21
Unavailable
42
BRACKET-HEAD LAMP,BLK
23064-003-21
Unavailable
42
BRACKET-HEAD LAMP,BLK
23064-011-21
Unavailable
43
REFLECTOR REFLEX
28001-007
Unavailable
43
REFLECTOR-REFLEX,FRNT
28012-006
Unavailable
44
WASHER SPRING 5MM
461F0500
Unavailable
45
NUT-HEX
311B0500
Unavailable
46
DAMPER RUBBER
92075-064
Unavailable
47
DAMPER RUBBER
92075-137
Unavailable
48
BOLT-STEERING STEM HD
44041-042
Unavailable
49
WASHER PLAIN 8MM
410B0800
Unavailable
50
NUT,LOCK,8MM
92015-1124
Unavailable
51
CIRCLIP-OIL SEAL FIT
44044-014
Unavailable
52
GASKET FORK CYL BOLT
44045-030
Unavailable
53
BOLT FORK CYLINDER
44041-027
Unavailable
