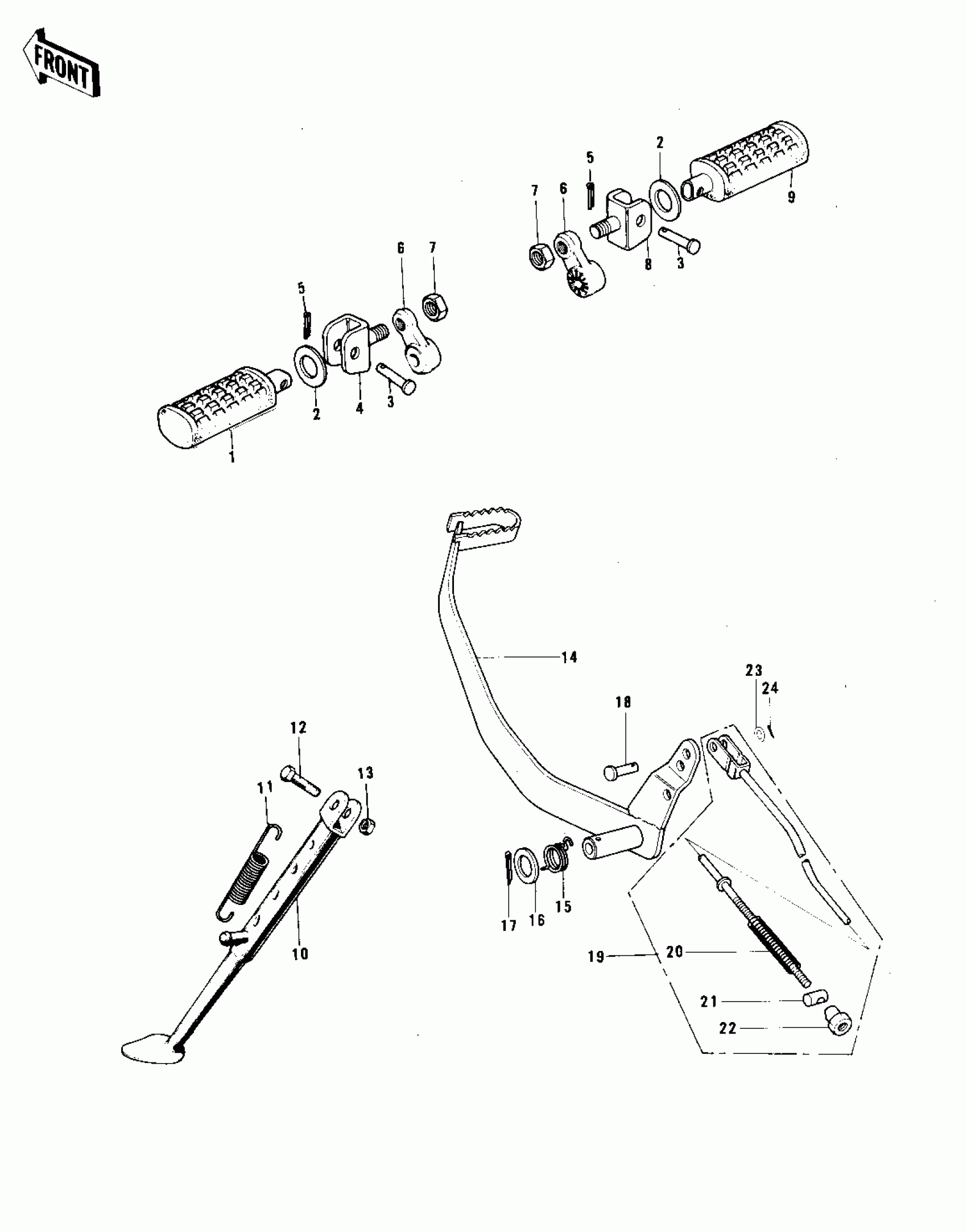

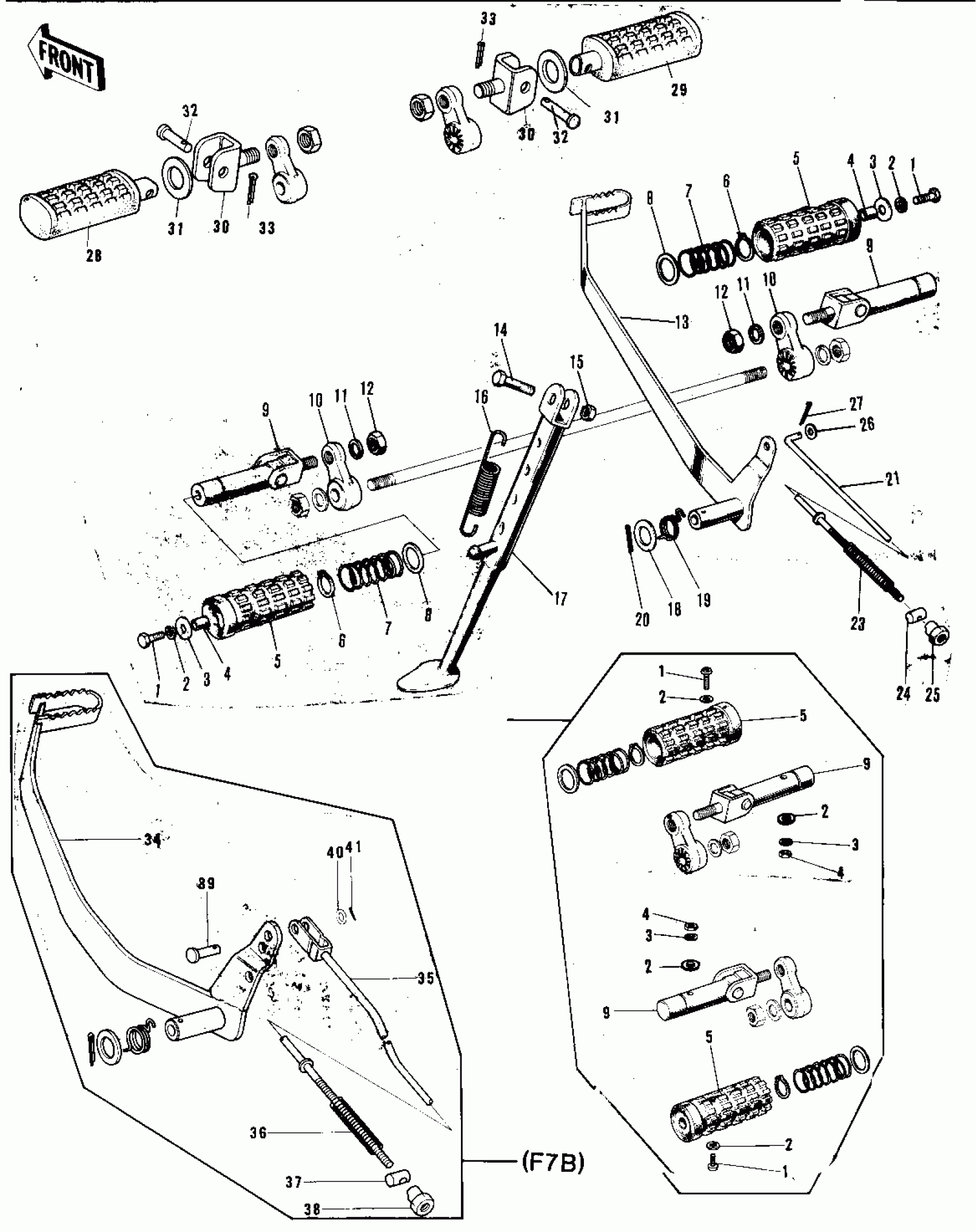

Kawasaki F7-D FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
1
BOLT-UPSET
112G0618
Unavailable
1
SCREW-PAN-CROS
220B0540
Unavailable
2
WASHER SPRING 6MM
461F0600
Unavailable
2
WASHER PLAIN
410F0500
Unavailable
3
WASHER,6.5X20X1.6
92022-125
Unavailable
3
WASHER SPRING 5MM
461F0500
Unavailable
4
COLLAR
92027-103
Unavailable
4
NUT-HEX
311B0500
Unavailable
5
RUBBER-FOOTREST
92076-023
Unavailable
5
RUBBER-FOOTREST
92076-023
Unavailable
6
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
7
SPRING FOOTREST PEG
34006-002
Unavailable
8
WASHER FOLDING PEG
92022-049
Unavailable
9, 10,
BAR ASSY,FOOTREST
34002-051
Unavailable
9
HOLDER-FOTREST BAR,LH
34003-030
Unavailable
9
BAR-FOOTREST
34003-032
Unavailable
9
BAR ASSY,FOOTREST
34002-051
Unavailable
10
BRACKET-FOOTREST BAR
34007-009
Unavailable
11
WASHER SPRING 10MM
461F1000
Unavailable
12
NUT-HEX-FINE,10MM
315B1000
Unavailable
12
NUT-LOCK,12MM
92019-009
Unavailable
13
PEDAL-BRAKE
43001-035
Unavailable
13
PEDAL-BRAKE
43001-046
Unavailable
14
BOLT,10X28
113G1028
Unavailable
15
NUT-HEX-FINE,10MM
315B1000
Unavailable
16
SPRING MAIN STAND
34023-005
Unavailable
17
STAND-SIDE
34024-028
Unavailable
18
WASHER BRAKE PEDAL
92022-085
Unavailable
19
SPRING,BRAKE PEDAL
43005-033
Unavailable
20
PIN-COTTER,3.0X30
550D3030
Unavailable
21~25
BRAKE ROD ASSY
43010-5003
Unavailable
21~25
ROD ASSY-BRAKE
43010-013
Unavailable
23
SPRING,BRAKE ROD
43012-001
Unavailable
24
PIN,BRAKE ROD
92043-039
Unavailable
25
NUT,BRAKE ROD
92015-042
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
PIN COTTER 2.0X15
550D2015
Unavailable
28
STEP-ASSY,FR,LH
34027-1114
Unavailable
29
STEP-ASSY,FR,RH
34027-1115
Unavailable
30
HOLDER,FOTRST BAR,LH
34021-001-10
Unavailable
31
WASHER PL 22.5X36X2.3
92022-204
Unavailable
32
PIN,8X31
92043-080
Unavailable
33
PIN-COTTER,2.5X15
550D2515
Unavailable
34
PEDAL-BRAKE
43001-046
Unavailable
35~38
ROD ASSY-BRAKE
43010-013
Unavailable
36
SPRING,BRAKE ROD
43012-001
Unavailable
37
PIN,BRAKE ROD
92043-039
Unavailable
38
NUT,BRAKE ROD
92015-042
Unavailable
39
PIN,6X17
92043-064
Unavailable
40
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
41
PIN COTTER 2.0X15
550D2015
Unavailable
