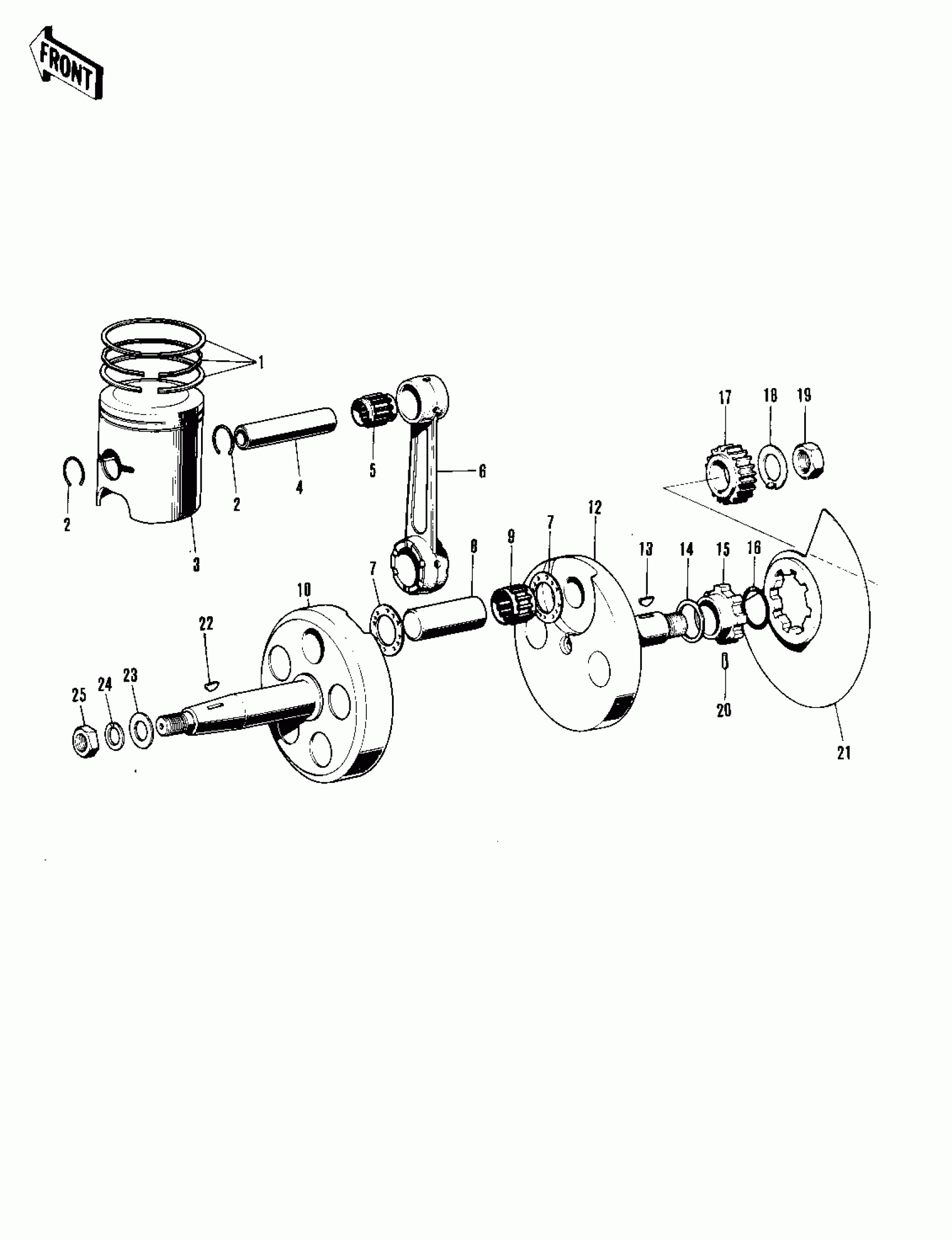

Kawasaki F7-D CRANKSHAFT/PISTON/ROTARY VALVE ('71-'73 Diagram
#
Description
Price
1
RING SET,STD
13008-027
Unavailable
1
RING SET,0.020'O.S
13025-032
Unavailable
1
RING SET,0.040'O.S
13024-035
Unavailable
2
RING-SNAP,PISTON PIN
92036-003
Unavailable
3
PISTON,STD
13001-042
Unavailable
3
PISTON,0.020'O.S
13029-048
Unavailable
3
PISTON,0.040'O.S
13027-046
Unavailable
4
PIN-PISTON
13002-018
Unavailable
5
BEARING,SMALL END
13033-034
Unavailable
6~9
CONNECTING ROD SET
13044-039
Unavailable
6~12
CRANKSHAFT ASSY
13036-049
Unavailable
7
SPACER,22.5X37X1.0
92026-011
Unavailable
8
CRANK PIN
13035-022
Unavailable
9
BEARING,BIG END
13034-042
Unavailable
10
CRANKSHAFT,L.H
13037-038
Unavailable
12
CRANKSHAFT,R.H
13038-034
Unavailable
13
KEY,WOODRUFF
92038-003
Unavailable
14
COLLAR-CRANKSHAFT
92027-118
Unavailable
15
COLLAR-R.H CRNK SHT
92027-100
Unavailable
16
"0" RING,22MM
92055-018
Unavailable
17
PINION,PRIMARY
13121-027
Unavailable
18
WASHER,LOCK,18MM
92024-067
Unavailable
19
NUT,18MM
92015-019
Unavailable
20
ROLLER,4X12
610A0412
Unavailable
21
VALVE-ROTARY DISC
12002-022
Unavailable
22
KEY,WOODRUFF
92038-001
Unavailable
23
WASHER-PLAIN,14MM
92022-172
Unavailable
24
WASHER-PLAIN, 14MM
461E1400
Unavailable
25
NUT 14MM
92015-043
Unavailable
