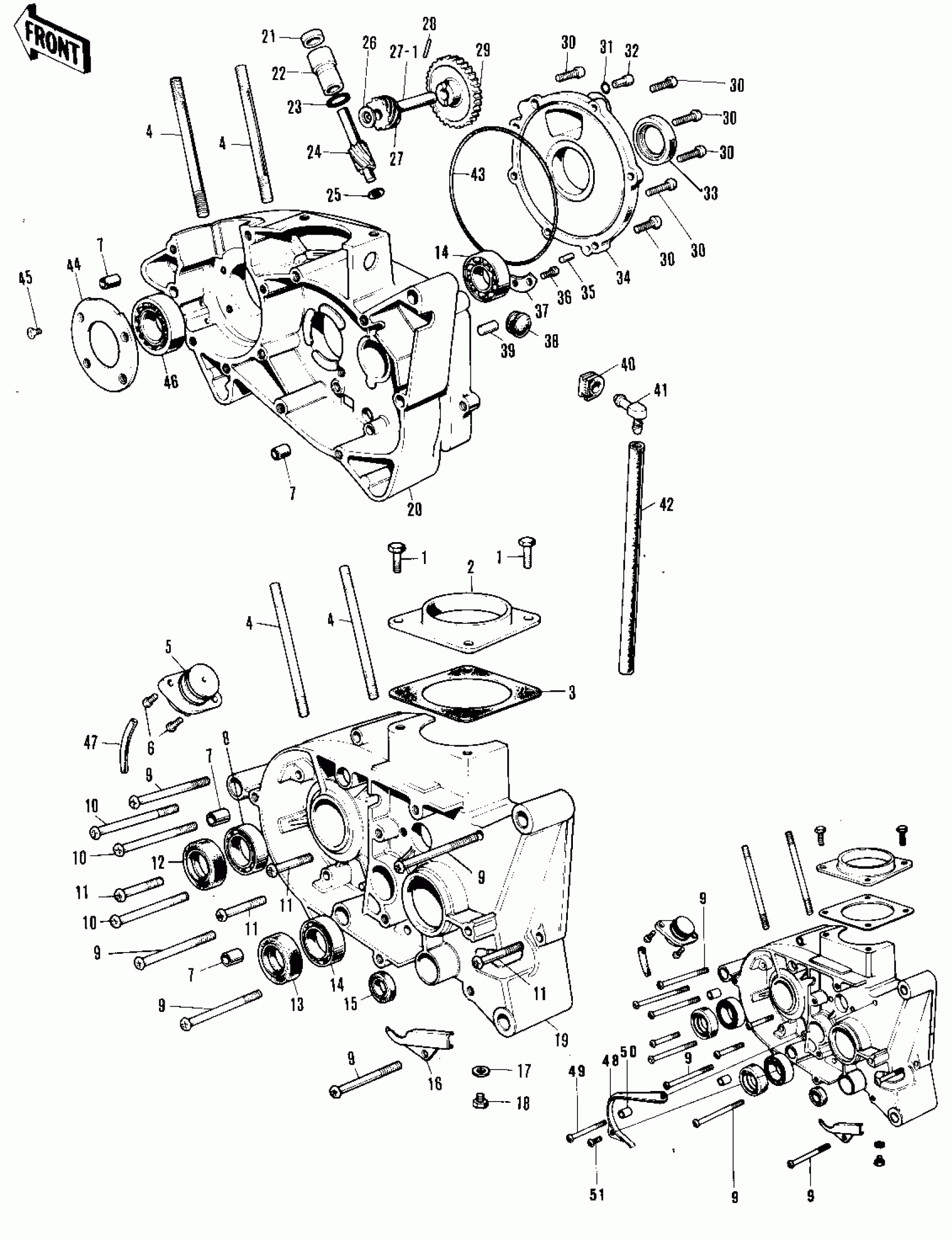

Kawasaki F7-D CRANKCASE ('71-'73 F7/F7-A/F7-B) Diagram
#
1
BOLT-UPSET,6X20
112G0620
Unavailable
2
INLET PIPE
11015-022
Unavailable
3
GASKET-INLET PIPE
11017-006
Unavailable
4
STUD,8X70
172G0870
Unavailable
5
PUMP-FUEL DRAIN
16137-002
Unavailable
5
PUMP-FUEL DRAIN
16137-002
Unavailable
6
SCREW-PAN-CROS,6X16
220B0616
Unavailable
7
PIN,DOWEL,10X14
92043-1037
Unavailable
8
BEARING-BALL,#6205C3
601B6205
Unavailable
9
SCREW PAN HEAD 6X65
220B0665
Unavailable
9
SCREW PAN HEAD 6X65
220B0665
Unavailable
10
SCREW PAN HEAD 6X55
220B0655
Unavailable
11
SCREW PAN HEAD 6X40
220B0640
Unavailable
12
SEAL-OIL
92049-1250
Unavailable
13
OIL SEAL SC30426
92050-039
Unavailable
14
BEARING-BALL,6204C3
92045-1046
Unavailable
15
SEAL-OIL,SB12205
92049-004
Unavailable
16
COVER-WIRING HARNESS
14076-002
Unavailable
17
GASKET,10.5X16X1
92065-058
Unavailable
18
PLUG,DRAIN,10X12
92067-001
Unavailable
19
CRANKCASE,L.H
14002-078
Unavailable
20
CRANKCASE,R.H
14003-046
Unavailable
21
OIL SEAL
92054-004
Unavailable
22
BUSH-TACHOMETER GEAR
92028-095
Unavailable
23
RING-O,12X1.5
92055-025
Unavailable
24
GEAR TACHOMETER
13223-003
Unavailable
25
WASHER THRUST
92026-026
Unavailable
26
WASHER THRUST
92026-025
Unavailable
27
GEAR-TACHOMETER
13224-007
Unavailable
27-1
SHAFT-OIL PUMP
16086-002
Unavailable
28
PIN,DOWEL
92042-035
Unavailable
29
GEAR-OIL PUMP
16085-016
Unavailable
30
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
31
"0" RING,CHECK VALVE
92055-037
Unavailable
32
VALVE-CHECK
16128-006
Unavailable
33
OIL SEAL TB32457
653B324507
Unavailable
34
COVER-ROTARY DISC VLV
14019-046
Unavailable
35
ROLLER,5X12
610A0512
Unavailable
36
SCREW PAN HEAD 6X12
220B0612
Unavailable
37
HOLDER-MISSION BERNG
14014-022
Unavailable
38
GROMMET,PIPE
92071-038
Unavailable
39
PIN DOWEL 8X16
551A0816
Unavailable
40
GROMMET,BREATHER
92071-042
Unavailable
41
BREATHER ASSY
14069-1001
Unavailable
42
PIPE-BREATHER
92059-061
Unavailable
43
"0" RING,120MM
92055-019
Unavailable
44
HOLDER-CRANK BEARING
14014-021
Unavailable
45
SCREW-CSK-CROS,6X16
221B0616
Unavailable
46
BEARING-BALL,#6305C3
601B6305
Unavailable
47
PIPE FUEL OVERFLOW
92059-031
Unavailable
48
GUIDE-CHAIN
14077-002
Unavailable
49
SCREW PAN HEAD 6X85
220B0685
Unavailable
50
COLLAR
92027-169
Unavailable
51
SCREW PAN HEAD 6X12
220B0612
Unavailable
