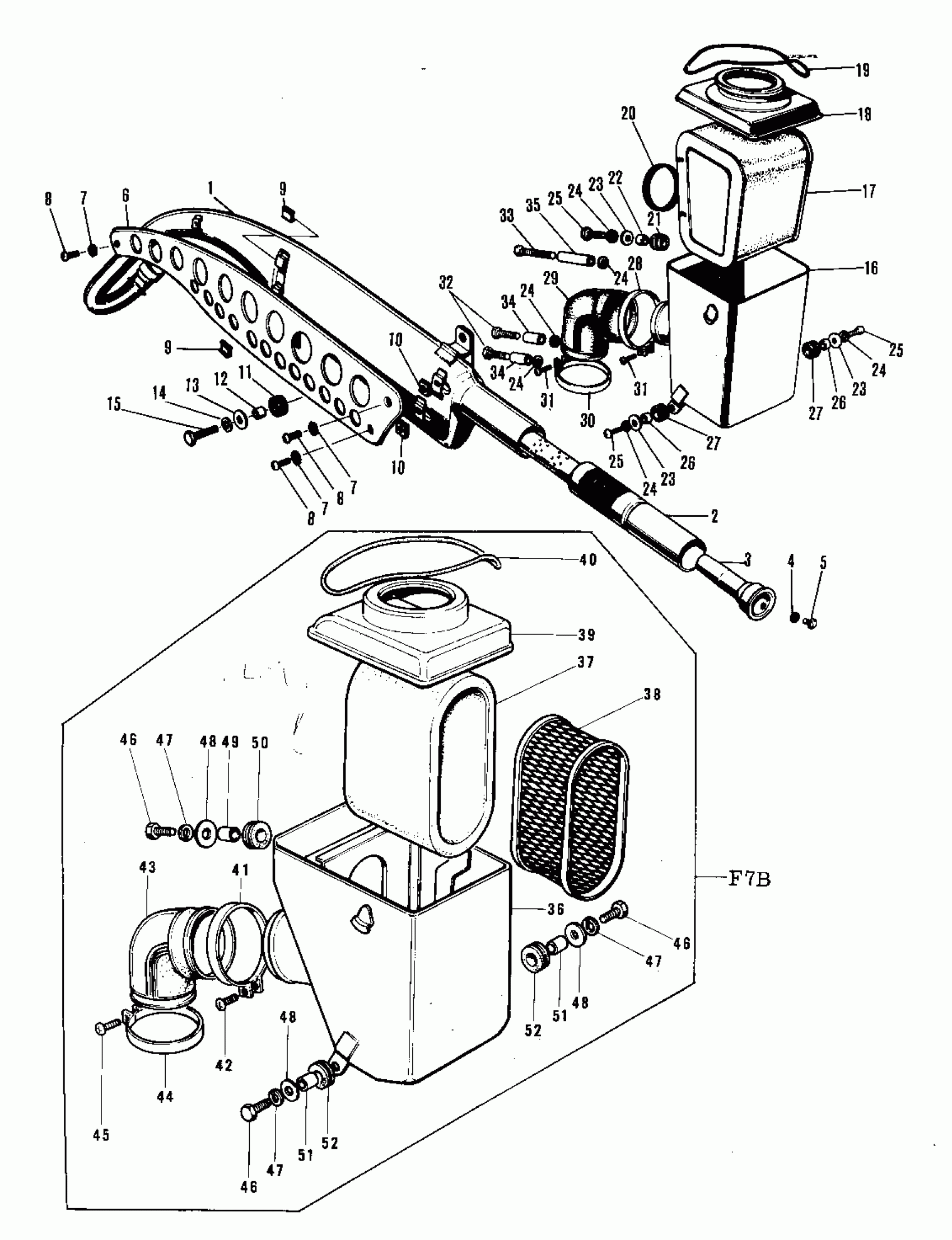

Kawasaki F7-D AIR CLEANER/MUFFLER ('71-'73 F7/F7-A/F7- Diagram
#
1~5
MUFFLER ASSY
18001-032
Unavailable
2~5
BAFFLE TUBE
18033-073
Unavailable
3
TAIL PIECE
18048-015
Unavailable
4
WASHER LOCK 6MM
463H0600
Unavailable
5
BOLT-UPSET,6X12
112G0612
Unavailable
6
COVER-MUFFLER
18064-005
Unavailable
7
WASHER LOCK 6MM
463H0600
Unavailable
8
SCREW PAN HEAD 6X12
220E0612
Unavailable
9
INSULATOR
18065-007
Unavailable
10
INSULATOR-HEAT
18065-009
Unavailable
11
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
12
COLLAR
92027-102
Unavailable
13
WASHER,8X26X2.3
92022-1564
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
16~20
AIR CLEANER ASSY
11010-040
Unavailable
16
BODY-AIR CLEANER
11011-012
Unavailable
17
ELEMENT,AIR CLNR
11013-020
Unavailable
18
CAP-AIR CLEANER
11012-015
Unavailable
19
"0" RING,100MM
671B25100
Unavailable
20
GASKET-AIR CLEANER
11017-007
Unavailable
21
DAMPER RUBBER
92075-051
Unavailable
22
COLLAR
92027-103
Unavailable
23
WASHER,6.5X20X1.6
92022-125
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
25
BOLT-UPSET,6X20
112G0620
Unavailable
26
COLLAR 6.8X10X10.5
92027-120
Unavailable
27
GROMMET
92071-046
Unavailable
28
CLAMP,AIR CLEANER
92037-129
Unavailable
29
CONNECTOR
11026-003
Unavailable
30
CLAMP,AIR CLEANER
92037-128
Unavailable
31
SCREW PAN HEAD 6X35
220B0635
Unavailable
32
BOLT-AIR CLEANER FIT
92003-066
Unavailable
33
BOLT-AIR CLNR. FITTNG
92003-067
Unavailable
34
COLLAR
92027-127
Unavailable
35
COLLAR
92027-128
Unavailable
36~40
AIR CLEANER ASSY
11010-061
Unavailable
36
BODY-AIR CLEANER
11011-024
Unavailable
37
ELEMENT,AIR,CLNR
11013-036
Unavailable
38
HOLDER-CLENER ELEM
11014-007
Unavailable
39
CAP-AIR CLEANER,BL
11012-028
Unavailable
42
SCREW PAN HEAD 6X35
220B0635
Unavailable
45
SCREW PAN HEAD 6X30
220B0630
Unavailable
46
BOLT-UPSET
112G0625
Unavailable
47
WASHER SPRING 6MM
461F0600
Unavailable
