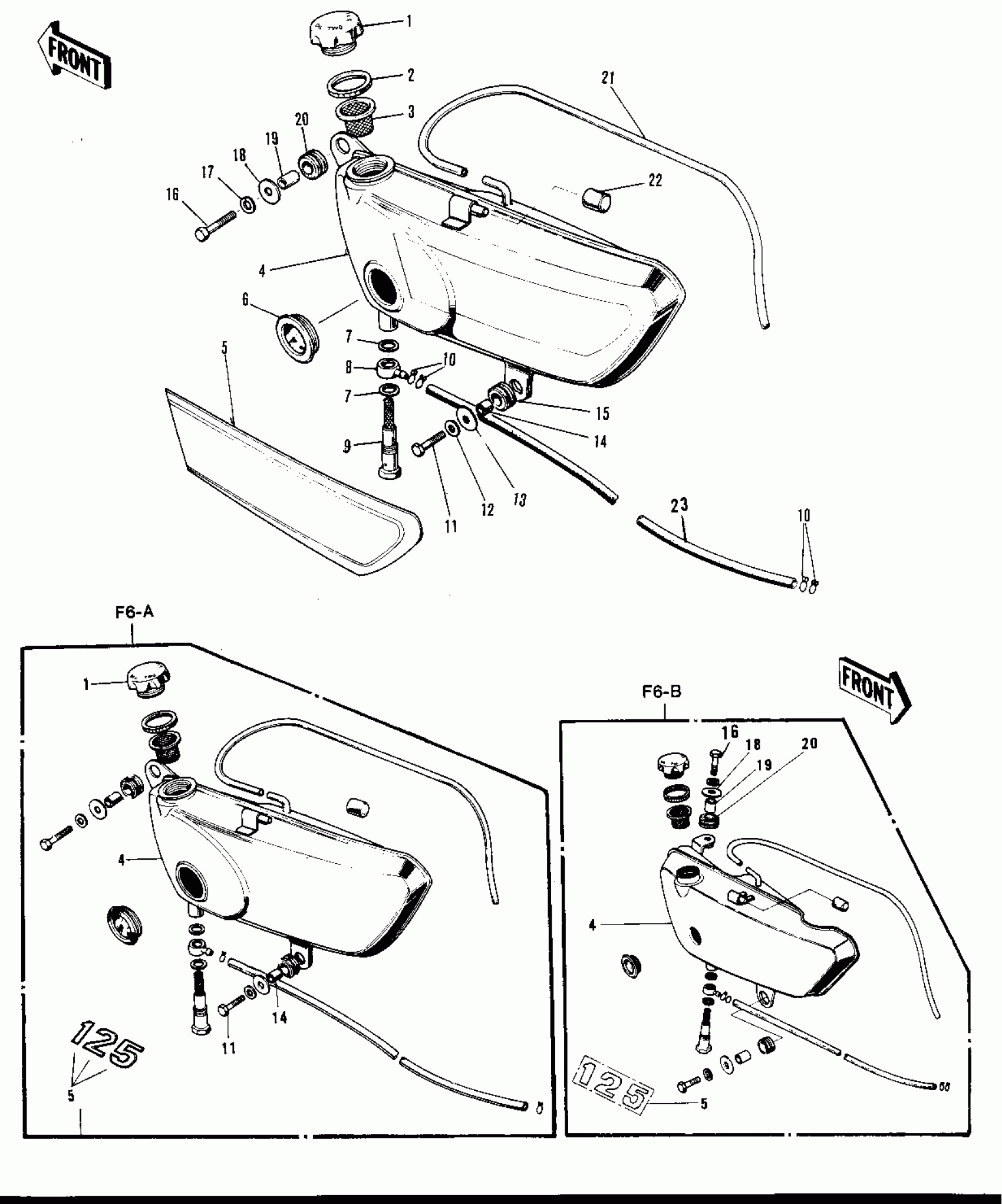

Kawasaki F6-B OIL TANK Diagram
#
Description
Price
1
CAP OIL TANK
52003-001
Unavailable
1
CAP-OIL TANK
52003-018
Unavailable
2
GASKET OIL TANK CAP
92065-018
Unavailable
3
GASKET OIL TANK CAP B
52004-001
Unavailable
4
TANK-OIL,YELLOW
52001-022-53
Unavailable
4
TANK-OIL,ORANGE
52001-022-71
Unavailable
4
TANK-OIL,F.BLACK
52001-032-21
Unavailable
5
EMBLEM-OIL TANK
56018-061
Unavailable
5
EMBLEM-OIL TANK
56018-109
Unavailable
5
F6-BEMBLEM-OIL TANK
56018-129
Unavailable
6
GAUGE OIL LEVEL
52015-001
Unavailable
7
GASKET,10.5X16X1
92065-058
Unavailable
8
CONNECTOR BANJO
92061-003
Unavailable
9
BOLT OIL TANK BANJO
92060-001
Unavailable
10
CLAMP,TUBE
92037-010
Unavailable
11
BOLT HEX HEAD 8X25
116B0825
Unavailable
11
BOLT HEX HEAD 8X28
116B0828
Unavailable
12
WASHER SPRING 8MM
461F0800
Unavailable
13
WASHER,8X26X2.3
92022-1564
Unavailable
14
SPACER FUEL TANK MONT
51065-001
Unavailable
14
COLLAR
92027-102
Unavailable
15
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
16
BOLT-UPSET,6X20
112G0620
Unavailable
17
WASHER SPRING 6MM
461F0600
Unavailable
18
WASHER,6.5X20X1.6
92022-125
Unavailable
18
WASHER,6.5X20X1.6
92022-125
Unavailable
19
COLLAR,6.8X10X8.5
92027-129
Unavailable
19
COLLAR
92027-103
Unavailable
20
DAMPER RUBBER
92075-112
Unavailable
20
DAMPER RUBBER
92075-105
Unavailable
21
UNAVAILABLE IN PRICE BOOK
700B05600
Unavailable
22
DAMPER RUBBER
92075-067
Unavailable
23
PIPE OIL TANK
92059-008
Unavailable
