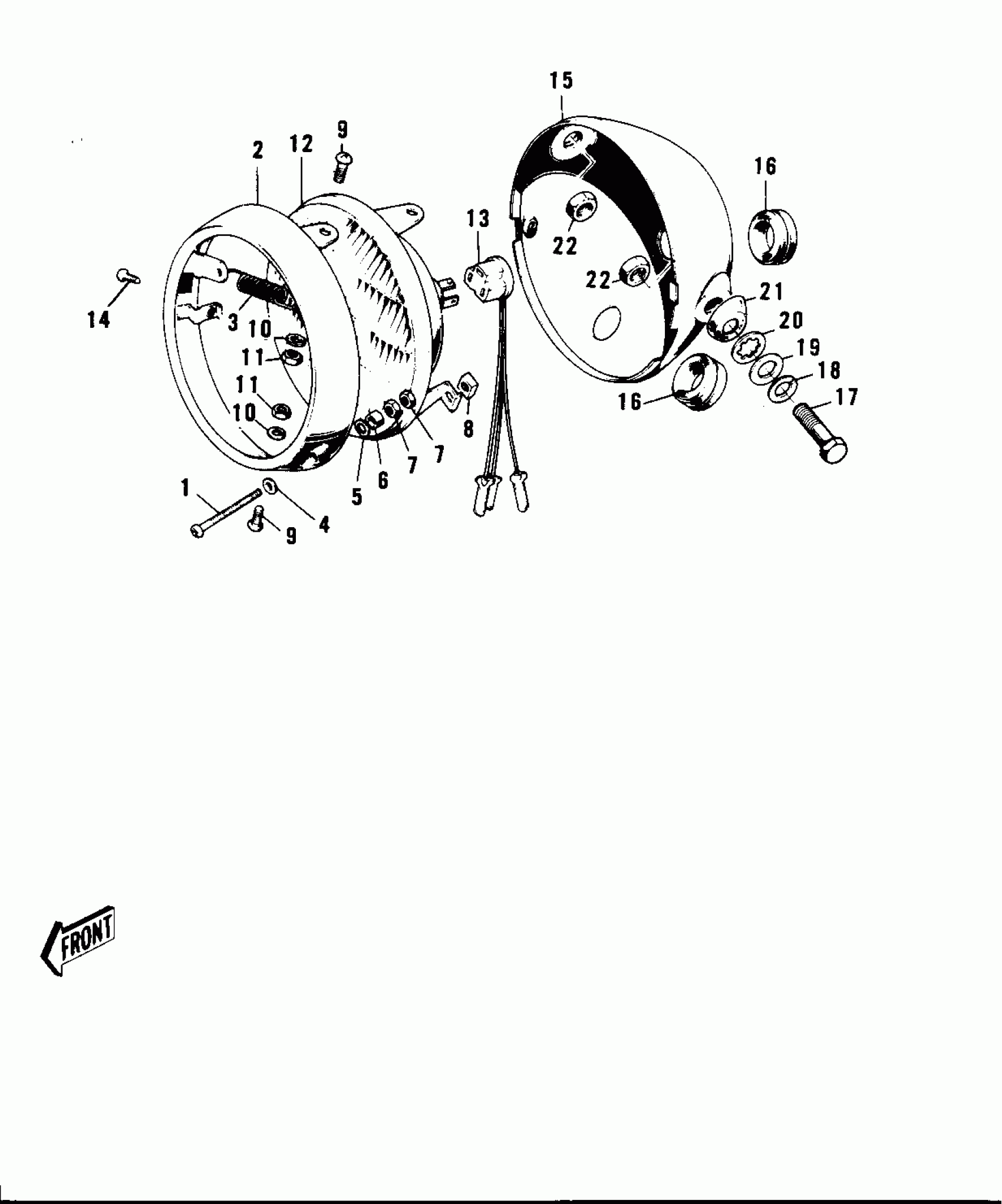

Kawasaki F6-B HEADLIGHT Diagram

#

Description

Price

1 ~ 13

LAMP UNIT HEAD

23003-009

Unavailable

1

SCREW ADJUST

23019-013

Unavailable

2

RIM HEAD LAMP

23006-020

Unavailable

3

SPRING LENS FITTING

23014-008

Unavailable

4

WASHER,FOCUS ADJUSTING

23021-008

Unavailable

5

WASHER ADJUST

23021-007

Unavailable

6

WASHER FITTING

23058-001

Unavailable

7

NUT ADJUST

23020-013

Unavailable

8

NUT,ADJUSTING

23020-012

Unavailable

9

SCREW FITTING

23019-014

Unavailable

10

WASHER SPRING 4MM

461F0400

Unavailable

11

NUT-HEX

311B0400

Unavailable

12

SEALED BEAM UNIT

23007-023

Unavailable

13

SOCKET-ASSY,HEAD LAMP

23008-044

Unavailable

14

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

15

CASE-HEAD LAMP,BLACK

23005-021-21

Unavailable

16

GROMMET WIRING HARNES

23023-007

Unavailable

17

BOLT HEX HEAD 10X20

113N1020

Unavailable

17

BOLT,HEX HEAD,10X25

92007-045

Unavailable

18

WASHER SPRING 10MM

461F1000

Unavailable

19

WASHER-PLAIN,10MM

411B1000

Unavailable

20

WASHER LOCK 10MM

463H1000

Unavailable

21

DAMPER RUBBER

92075-068

Unavailable

22

NUT 10MM

92016-027

Unavailable
