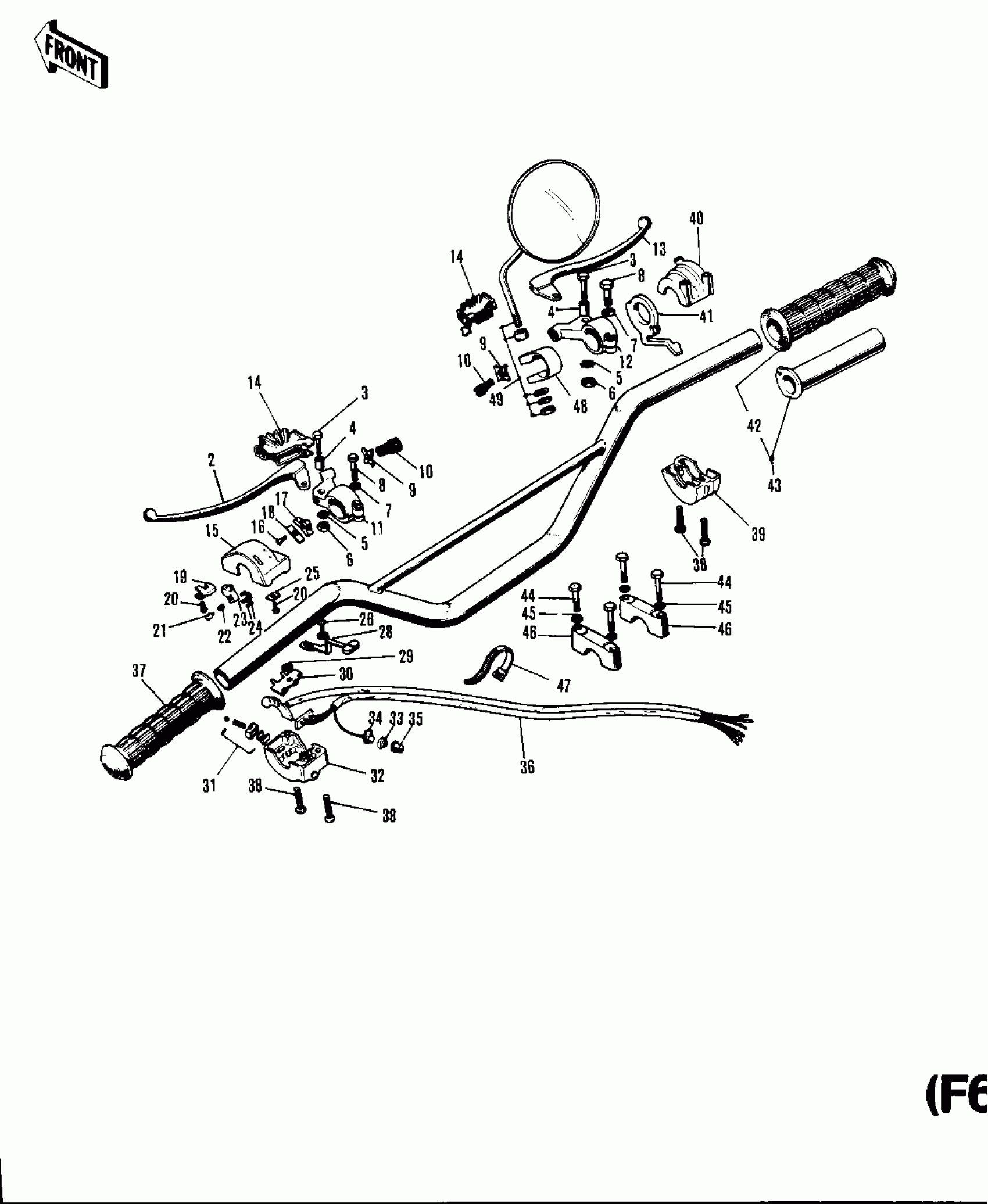

Kawasaki F6-B HANDLEBAR (F6/A) Diagram
#
1
HANDLEBAR
46004-016
Unavailable
2 ~ 11
LEVER ASSY-CLUTCH
46076-014
Unavailable
2
LEVER-GRIP,CLUTCH
46092-015
Unavailable
3
BOLT HEX HEAD 5X20
92007-020
Unavailable
4
COLLAR LEVER
46059-011
Unavailable
5
WASHER LOCK 5MM
464H0500
Unavailable
6
NUT-HEX,5MM
312B0500
Unavailable
7
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
8
BOLT,6X22
110N0622
Unavailable
9
NUT LOCK ADJUST SCREW
46056-001
Unavailable
10
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
11
HOLDER,CLUTCH LEVER
46094-010
Unavailable
12, 13
LEVER ASSY-FRNT BRAKE
46021-010
Unavailable
12
HOLDER-FR BRAKE LEVER
46060-006
Unavailable
13
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
14
DUST COVER
46071-001
Unavailable
15 ~ 3
CASE ASSY-L.H
46091-004
Unavailable
15
CASE L.H SWITCH UPPER
46086-013
Unavailable
16
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
17
KNOB-L.H SWITCH
46044-011
Unavailable
18
SPRING L.H SW KNOB
46031-003
Unavailable
19
HOLDER L.H SW LOWER B
46085-014
Unavailable
20
SCREW PAN HEAD 3X5
220B0305A
Unavailable
21
CONTACT L.H SWITCH
46079-002
Unavailable
22
SPRING L.H SWITCH
46031-004
Unavailable
23
SWITCH L.H
46089-003
Unavailable
24
PLATE L.H SW CONTACT
46080-002
Unavailable
25
HOLDER L.H SW UPPER A
46085-013
Unavailable
26
SCREW-PAN-CROS,3X8
220B0308
Unavailable
28
KNOB-SWITCH
46044-006
Unavailable
29
WASHER
92095-010
Unavailable
30
HOLDER L.H SW LOWER
46085-015
Unavailable
31
SLIDE BLOCK AY-L.H SW
46089-004
Unavailable
32
CASE L.H SWITCH LOWER
46077-015
Unavailable
33
SWITCH,PUSH BUTTON
27010-1009
Unavailable
34
SWITCH,PUSH BUTTON
27010-1009
Unavailable
35
SWITCH,PUSH BUTTON
27010-1009
Unavailable
36
WIRING HARNESS-L.H SW
46082-017
Unavailable
37
RUBBER-L.H GRIP
46075-017
Unavailable
38
SCREW PAN HEAD 5X22
220B0522
Unavailable
38 ~ 4
CASE ASSY-R.H
46018-019
Unavailable
39
CASE-R.H LOWER
46023-005
Unavailable
39
CASE-R.H LOWER
46023-005
Unavailable
40
CASE-R.H.UPPER
46041-005
Unavailable
41
LEVER-STARTER
46096-006
Unavailable
42
RUBBER-R.H GRIP
46061-012
Unavailable
43
GRIP ASSY-THROTTLE
46019-013
Unavailable
43
GRIP ASSY-THROTTLE
46019-018
Unavailable
44
BOLT 8X38
92001-1405
Unavailable
45
WASHER SPRING 8MM
461F0800
Unavailable
46
HOLDER-HANDLE,UPP
46012-008
Unavailable
46
HOLDER-HANDLE,UPP
46012-004
Unavailable
47
BAND,L=123
92072-030
Unavailable
48
BRACKET
56006-001
Unavailable
49
REAR VIEW MIRROR LH
56003-016
Unavailable
49
REAR VIEW MIRROR R.H.
56002-024
Unavailable
