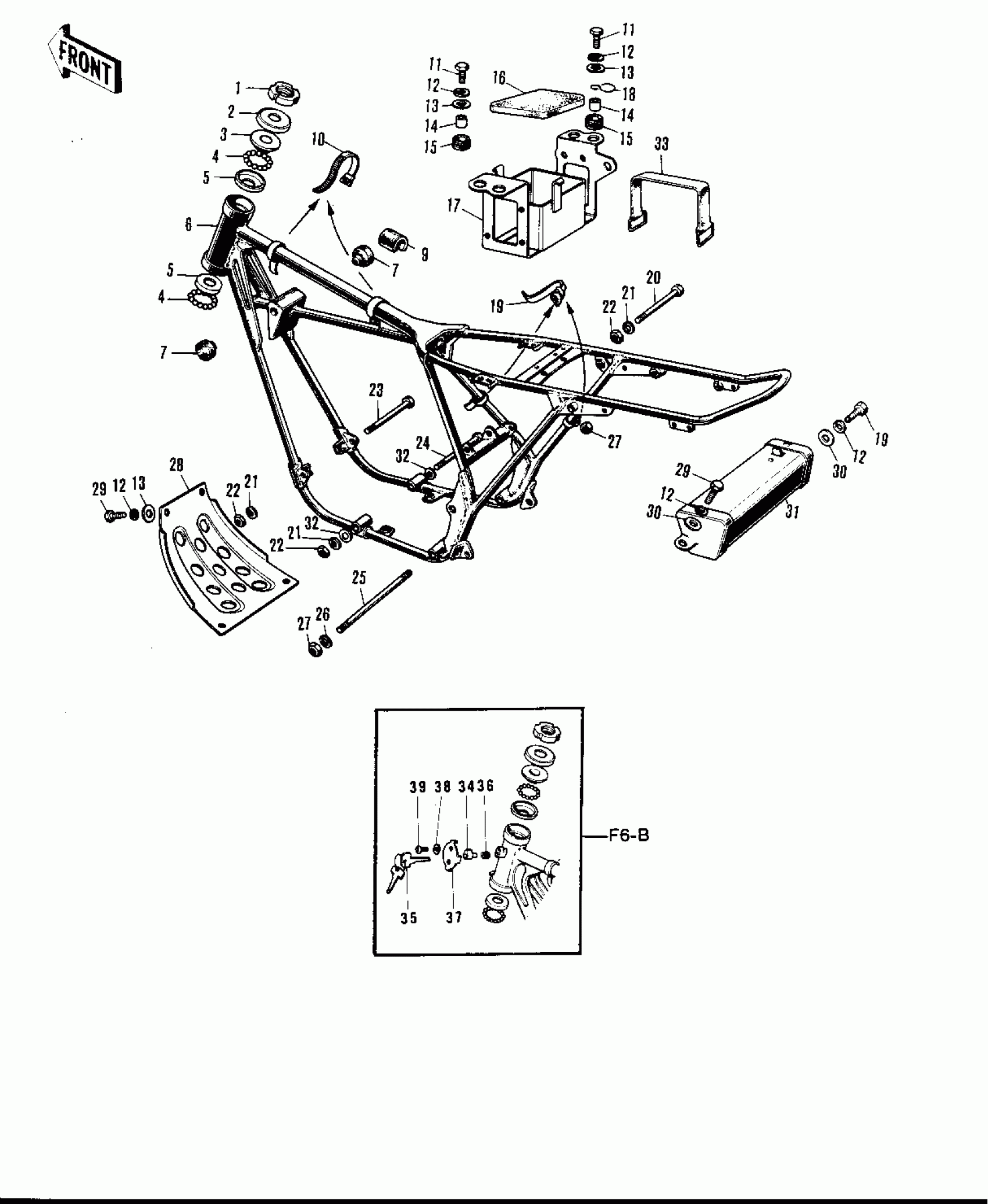

Kawasaki F6-B FRAME/FRAME FITTINGS Diagram
#
1
NUT STEERING STEM LCK
92090-006
Unavailable
2
CAP STEERING STEM
46098-005
Unavailable
3
RACE,UPPER BEARING
92047-005
Unavailable
4
BALL-STEEL,3/16
600A0600
Unavailable
5
RACE,BEARING
92048-004
Unavailable
6
UNAVAILABLE IN PRICE BOOK
32002-043
Unavailable
6
FRAME
32002-060
Unavailable
7
DAMPER RUBB FUEL TANK
92075-050
Unavailable
9
MAT FUEL TANK
51067-002
Unavailable
10
BAND,L=218
92072-032
Unavailable
11
BOLT-UPSET,6X20
112G0620
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
WASHER,6.5X20X1.6
92022-125
Unavailable
14
COLLAR
92027-103
Unavailable
15
DAMPER RUBBER
92075-051
Unavailable
16
MAT-BATTERY
32103-019
Unavailable
17
CASE-BATTERY
32097-018
Unavailable
18
CLAMP CABLE
92037-026
Unavailable
19
BAND,L=149
92072-031
Unavailable
20
BOLT,FLANGED,10X115
92001-1603
Unavailable
21
WASHER SPRING 10MM
461F1000
Unavailable
22
NUT-HEX-FINE,10MM
314B1000
Unavailable
23
BOLT-HEX HEAD,10X145
113B10145
Unavailable
23
BOLT,HEX HEAD,10X150
92001-1251
Unavailable
24
BOLT-HEX HEAD,10X225
113B10225
Unavailable
24
BOLT-HEX HEAD,10X225
113B10225
Unavailable
25
STUD,12X290
92006-003
Unavailable
26
WASHER-SPRING,12MM
461F1200
Unavailable
27
NUT-HEX-FINE
314B1200
Unavailable
28
GUARD-ENGINE
55011-012
Unavailable
29
BOLT-UPSET,6X12
112G0612
Unavailable
30
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
31
BOX-TOOL
32098-013
Unavailable
32
WASHER-PLAIN,10MM
411B1000
Unavailable
33
BAND
92072-012
Unavailable
34, 35
LOCK ASSY-STEERING
27016-029
Unavailable
35
KEY SET-STRNG #270
27018-015-70
Unavailable
35
KEY SET-STRNG #271
27018-015-71
Unavailable
35
KEY SET-STRNG #272
27018-015-72
Unavailable
35
KEY SET-STRNG #273
27018-015-73
Unavailable
35
KEY SET-STRNG #274
27018-015-74
Unavailable
36
SPRING,STEERING LOCK
27032-001
Unavailable
37
CAP,STEERING LOCK
11012-1134
Unavailable
38
WASHER,WAVE
92097-003
Unavailable
39
SCREW,3.51MM
92008-007
Unavailable
