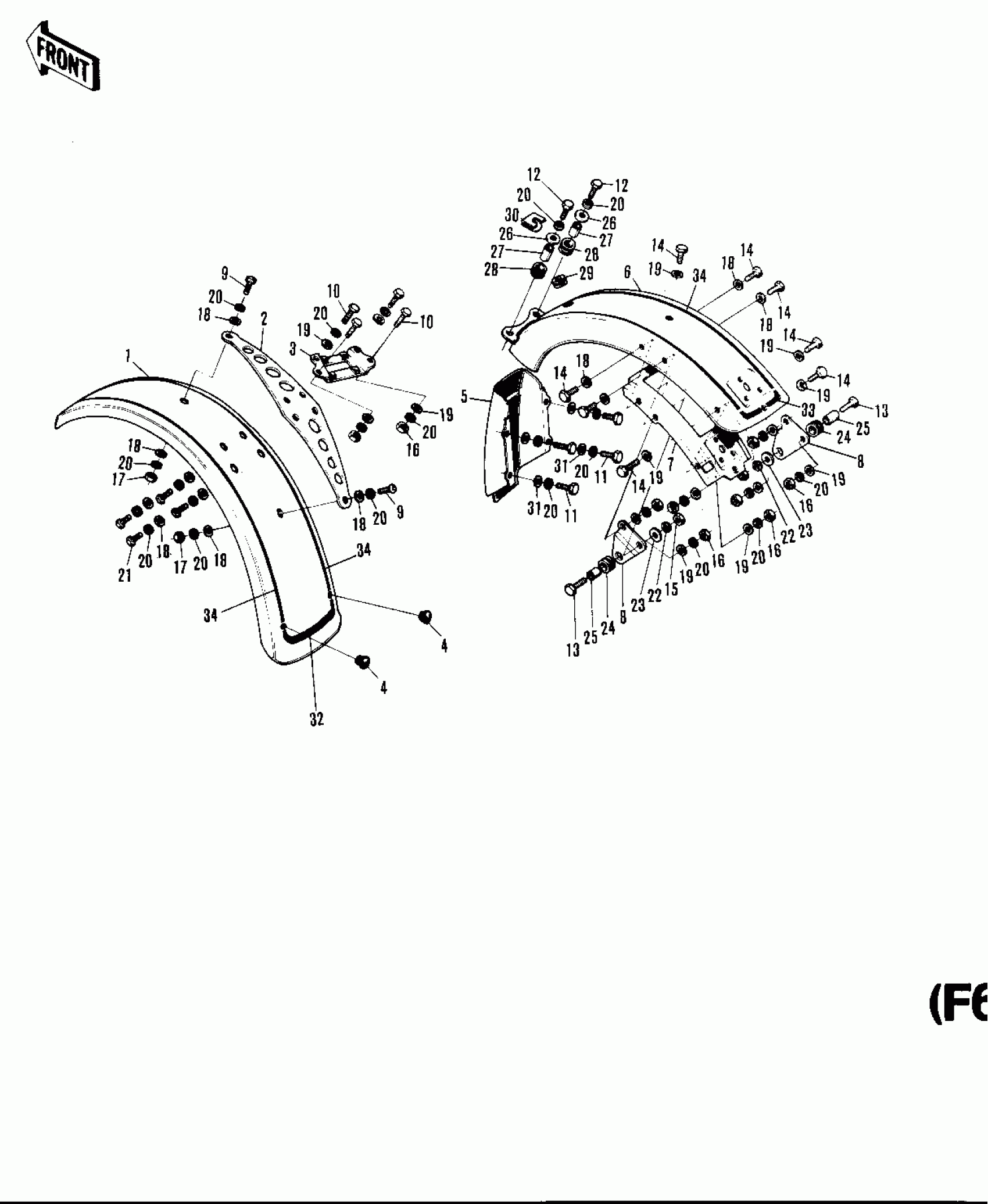

Kawasaki F6-B FENDERS (F6/A) Diagram
#
1
FENDER-FR,YELLOW
35004-055-53
Unavailable
1
FENDER-FR,ORANGE
35004-055-71
Unavailable
2
PLATE FRONT FENDER
35013-003
Unavailable
3
BRACKET-FRONT FENDER
35012-013
Unavailable
4
PLUG RUBBER
92074-005
Unavailable
5
FENDER-RR
35022-053
Unavailable
6
FENDER-REAR,B YELLOW
35022-054-53
Unavailable
6
FENDER-RR,ORANGE
35022-054-71
Unavailable
7
BRACE-REAR FENDER
35034-012
Unavailable
8
BRACKET-REAR FENDER
35025-019
Unavailable
9
SCREW PAN HEAD 6X12
220E0612
Unavailable
10
BOLT-UPSET
112G0625
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
12
BOLT-UPSET
112G0618
Unavailable
13
BOLT HEX HEAD 8X32
116B0832
Unavailable
14
SCREW-PAN-CROS,6X14
220B0614
Unavailable
15
NUT,8MM
311B0800
Unavailable
16
NUT 6MM
311B0600
Unavailable
17
NUT 6MM
312B0600
Unavailable
18
WASHER,6.5X20X1.6
92022-125
Unavailable
19
WASHER PLAIN 6MM
411B0600
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
BOLT-UPSET,6X12
112G0612
Unavailable
22
WASHER SPRING 8MM
461F0800
Unavailable
23
WASHER,8X26X2.3
92022-1564
Unavailable
24
DAMPER RUBB TANK FRNT
92075-013
Unavailable
25
COLLAR,8.8X12X14
92027-012
Unavailable
26
WASHER,6.5X20X1.6
92022-125
Unavailable
27
COLLAR
92027-103
Unavailable
28
DAMPER RUBBER
92075-051
Unavailable
29
GROMMET HARNESS 10MM
92071-010
Unavailable
30
PLATE-GROUND WIRE
26015-001
Unavailable
31
COLLAR
92027-122
Unavailable
32
EMBLEM-FRONT FENDER
56027-020
Unavailable
33
EMBLEM-FENDER
56027-022
Unavailable
34
EMBLEM-REARFENDER
56027-023
Unavailable
