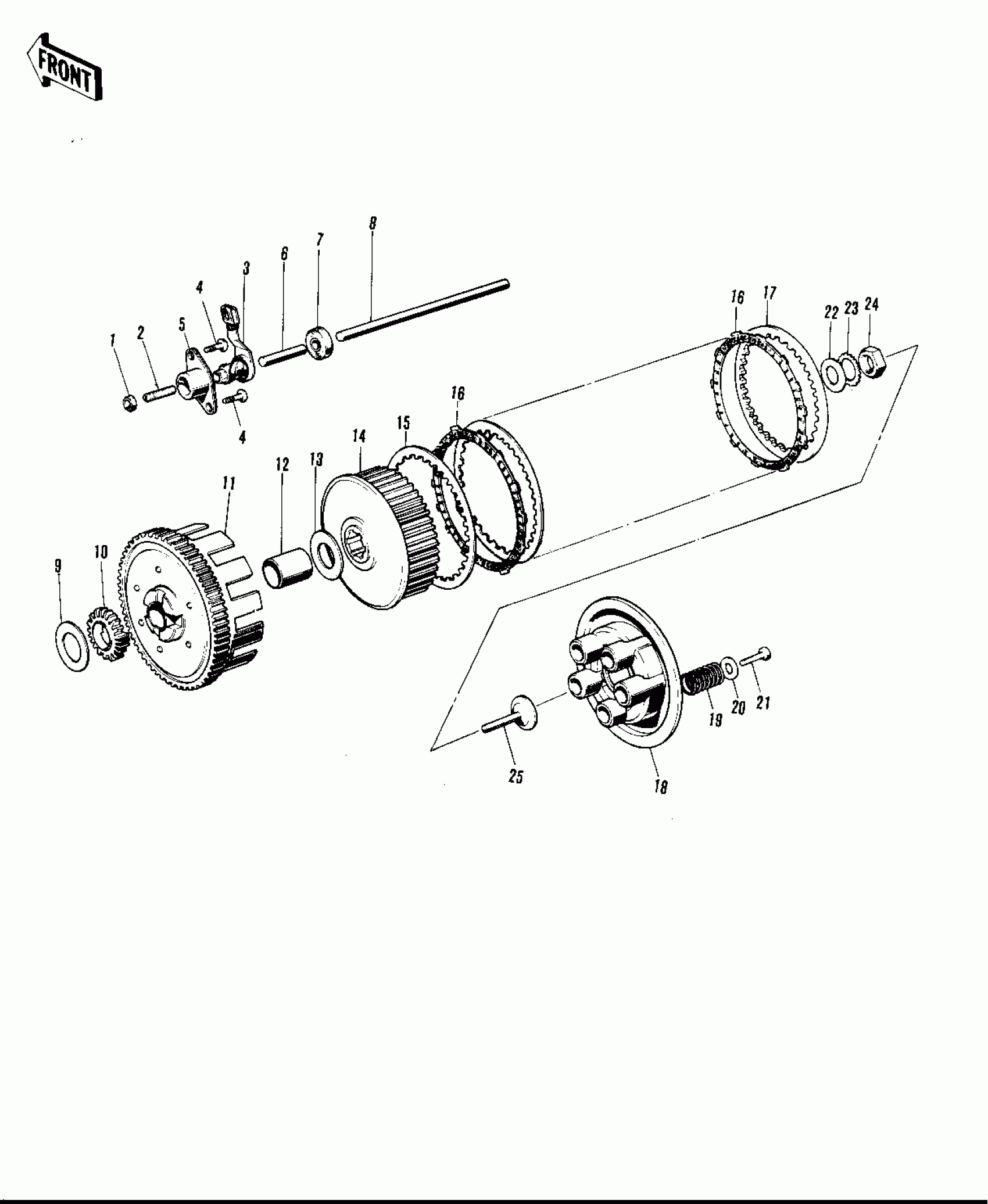

Kawasaki F6-B CLUTCH Diagram
#
Description
Price
1
NUT 6MM
311B0600
Unavailable
1
NUT 6MM
311B0600
Unavailable
2
SCREW SLOTTED
291Z0625
Unavailable
3
RELEASE INNER-CLUTCH
13102-011
Unavailable
4
SCREW-PAN-CROS,6X14
220B0614
Unavailable
5
RELEASE OUTER-CLUTCH
13118-006
Unavailable
6
ROD-CLUTCH PUSH,SHORT
13116-018
Unavailable
7
OIL SEAL TB7246
92052-010
Unavailable
8
ROD-CLUTCH PUSH,LONG
13116-017
Unavailable
9
WASHER,20.5X34X1.4
92022-168
Unavailable
10
PINION-KICKSTARTER
13075-006
Unavailable
11-12
CLUTCH-ASSY
13081-058
Unavailable
11
HOUSING-COMP-CLUTCH
13095-1024
Unavailable
12
BUSH-CLUTCH
92028-014
Unavailable
13
WASHER,20.5X34X1.4
92022-168
Unavailable
14
HUB,CLUTCH
13087-032
Unavailable
15
PLATE CLUTCH STEEL
13089-003
Unavailable
16
PLATE,FRICTION
13088-1104
Unavailable
17
PLATE CLUTCH OUTER
13090-002
Unavailable
18
PLATE-CLUTCH SPRING
13187-004
Unavailable
19
SPRING,CLUTCH
92081-080
Unavailable
20
WASHER-PLAIN,5MM
92022-167
Unavailable
21
BOLT
110B0518
Unavailable
22
WASHER-LOCK,14MM
92024-046
Unavailable
22
WASHER-LOCK,14MM
92024-046
Unavailable
23
WASHER-LOCK,14MM
463G1400
Unavailable
24
NUT-HEX-FINE,14MM
315B1400
Unavailable
25
PUSHER-CLTCH SPRG PLT
13116-016
Unavailable
