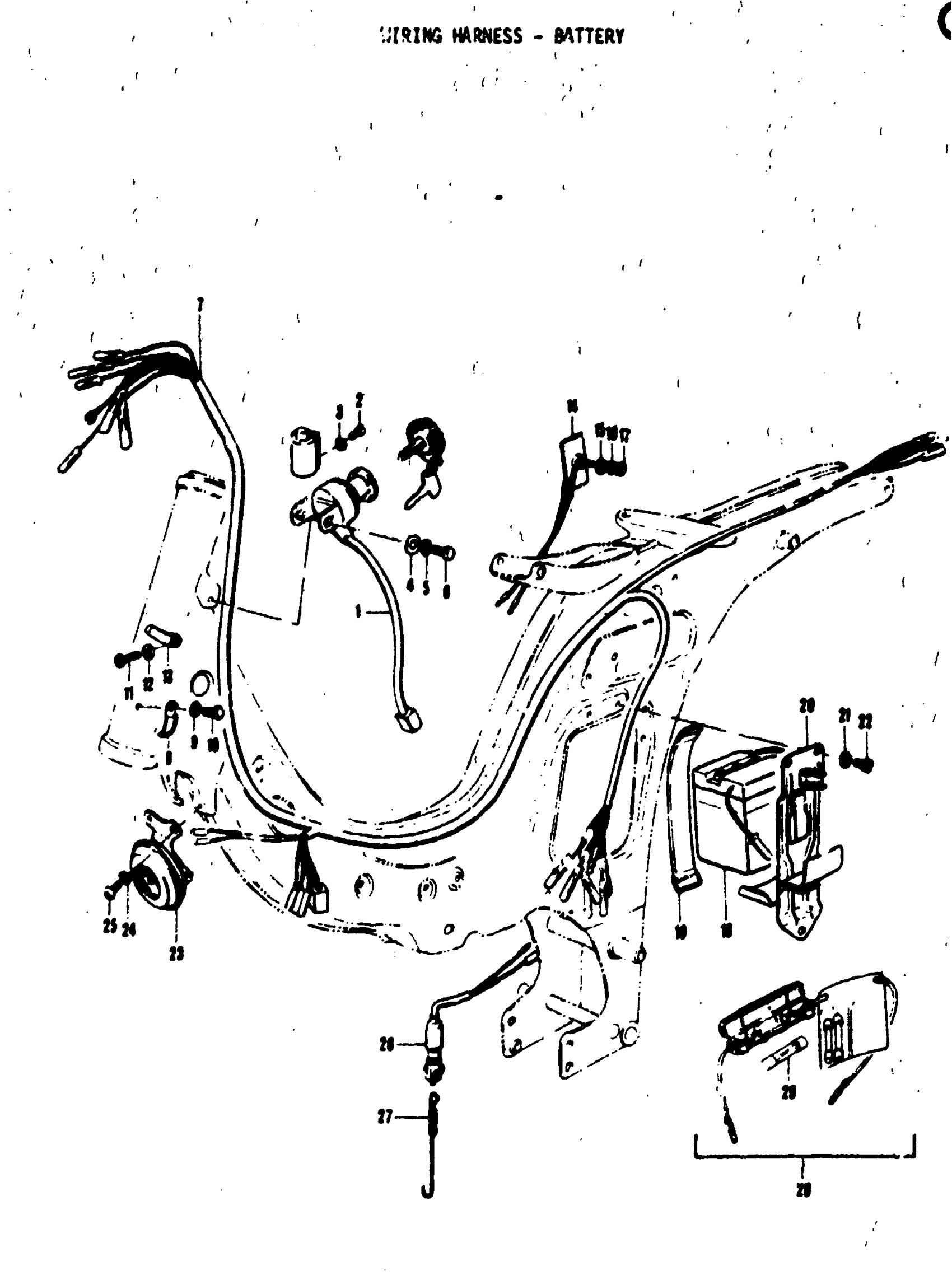

Find the part on the Wiring Harness - Battery diagram for your 1971 Suzuki F50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki F50 Wiring Harness - Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION SWITCH ASS'Y

37110-19610

—
Out of stock

2

SCREW

02111-05128

—
Out of stock

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

4

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

5

3

$2.28

In stock

6

BOLT

01111-06128

—
Out of stock

7

MAIN WIRING HARNESS

36610-19601

—
Out of stock

8

WIRING HARNESS CLIP

09403-00007

—
Out of stock

9

1

$2.28

In stock

10

HARNESS CLIP BOLT

09100-06005

2
Out of stock

11

WIRING HARNESS CLAMP

09403-00066

—
Out of stock

12

1

$2.28

In stock

13

SCREW

02111-06068

—
Out of stock

14

DIODE This part replaces 32800-01020.

32800-16A00

1
Out of stock

15

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

17

NUT This part replaces 08311-11058.

08310-00057

1
Out of stock

18

BATTERY ASS'Y | 6V, 4AH

33610-03010

1
Out of stock

19

BATTERY BAND | L:160

09462-00007

1
Out of stock

20

BATTERY HOLDER

41540-19000

1
Out of stock

21

3

$2.28

In stock

22

SCREW (6X10) | 6SCREW, L:10 This part replaces 09128-06004.

09128-06044

3
Out of stock

23

HORN

38500-19031

—
Out of stock

24

2

$2.28

In stock

25

BOLT

01111-06108

—
Out of stock

26

BRAKE LAMP SWITCH ASS'Y

37740-11010

—
Out of stock

27

SPRING This part replaces 09443-06015.

09443-06031

1
Out of stock

28

FUSE CASE ASSY | Includes Item(s) 29 This part replaces 36740-15010.

36740-15011

1
Out of stock

29

FUSE | 15A

09481-15001

1
Out of stock
