1971 Suzuki F50 Front Fork - Headlamp Housing Diagram

← All diagrams

Find the part on the Front Fork - Headlamp Housing diagram for your 1971 Suzuki F50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

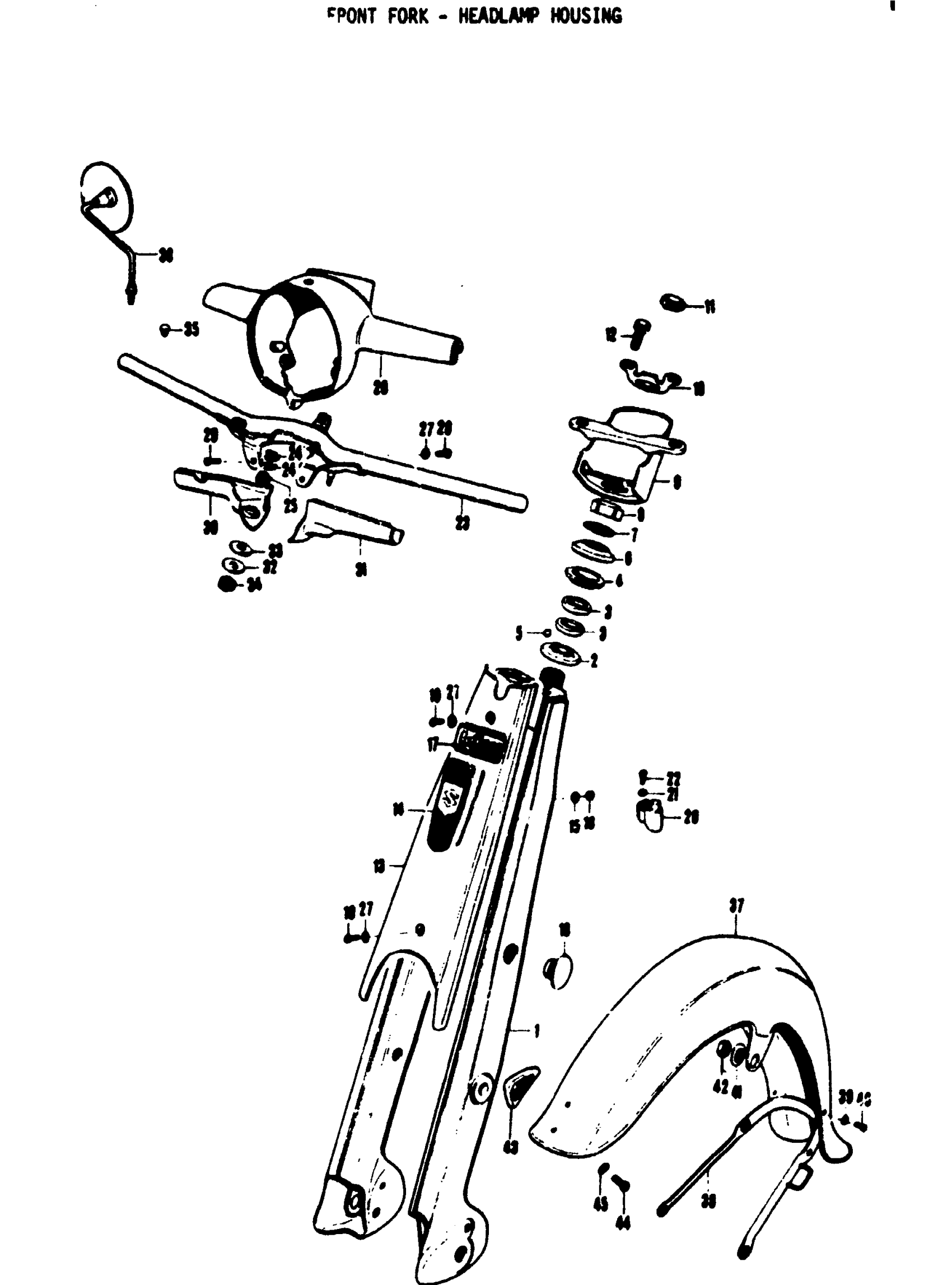

1971 Suzuki F50 Front Fork - Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | F50 This part replaces 51000-19812-153.

51200-35830-799

1
Out of stock

1

FRONT FORK BODY COMP. | F50

51000-19812-061

—
Out of stock

2

STEERING LOWER OUTER RACE

51622-20000

—
Out of stock

3

STEERING INNER RACE

51611-20000

—
Out of stock

4

RACE, STEERING OUTER UPPER This part replaces 51621-05000.

51621-25000

1
Out of stock

5

STEEL BALL

06111-06004

—
Out of stock

6

DUST SEAL This part replaces 51643-05000.

51643-06001

1
Out of stock

7

STEERING SHIM | 0~1

09160-28002

1
Out of stock

8

STEERING STEM NUT

51631-06000

1
Out of stock

9

STEERING STEM HEAD | F50R

51310-19000-153

—
Out of stock

9

STEERING STEM HEAD | F50R

51310-19000-061

—
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 51355-19000.

51355-35100

1
Out of stock

11

STEERING STEM HEAD NUT

51353-06000

1
Out of stock

12

2

$2.68

In stock

13

FRONT FORK COYER | F50

51871-19000-153

—
Out of stock

13

NO DESCRIPTION AVAILABLE | F50R This part replaces 51871-19000-061.

51871-19100

1
Out of stock

14

FRONT FORK COVER EMTLEM

68210-19000

—
Out of stock

15

WASHER This part replaces 08322-21048.

08322-01047

2
Out of stock

16

NUT This part replaces 08311-11048.

08310-00047

2
Out of stock

17

PET NAME EMBLEM

68221-19600

—
Out of stock

18

FRONT FORK CAP

51512-06000

—
Out of stock

19

SCREW

02111-05128

—
Out of stock

20

STEERING LOCK ASS'Y

51900-19010

—
Out of stock

21

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

22

SCREW

02111-05128

—
Out of stock

23

HANDLEBAR

56110-19000

—
Out of stock

24

CUSHION This part replaces 09320-10004.

09320-10003

4
Out of stock

25

2

$1.93

In stock

26

NO DESCRIPTION AVAILABLE This part replaces 51810-19000-153.

51810-19000

1
Out of stock

26

HEADLAMP HOUSING

51810-19000-061

—
Out of stock

27

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

28

SCREW

02141-05108

—
Out of stock

29

SCREW

02141-06168

—
Out of stock

30

HANDLE LOWER RH COVER

51841-19000-153

—
Out of stock

30

NO DESCRIPTION AVAILABLE This part replaces 51841-19000-061.

51841-19000

1
Out of stock

31

HANDLE LOWER LH COVER

51842-19000-153

—
Out of stock

31

NO DESCRIPTION AVAILABLE This part replaces 51842-19000-061.

51842-19000

1
Out of stock

32

WASHER (8.5X26X1.6) | 8.2x26x1.6 This part replaces 09160-08004.

09160-08134

4
Out of stock

33

HANDLE LOWER COVER CUSHION

09161-14006

2
Out of stock

34

2

$1.93

In stock

35

PLUG This part replaces 09250-06001.

09250-06005

1
Out of stock

36

MIRROR ASSY,REA This part replaces 56500-19600.

56500-35611

1
Out of stock

37

NO DESCRIPTION AVAILABLE This part replaces 53111-19100-153.

53111-35201

1
Out of stock

37

FRONT FENDER

53111-19000-061

—
Out of stock

38

FRONT FENDER LOWER BRACE

53210-19000

1
Out of stock

39

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

40

BOLT

02111-05088

—
Out of stock

41

FRONT FENDER UPPER WASHER

09169-08002

—
Out of stock

42

2

$1.93

In stock

43

FRONT REFLECTER ASS'Y

35950-19020

—
Out of stock

44

SCREW

02111-04108

—
Out of stock

45

WASHER This part replaces 08322-21048.

08322-01047

4
Out of stock
