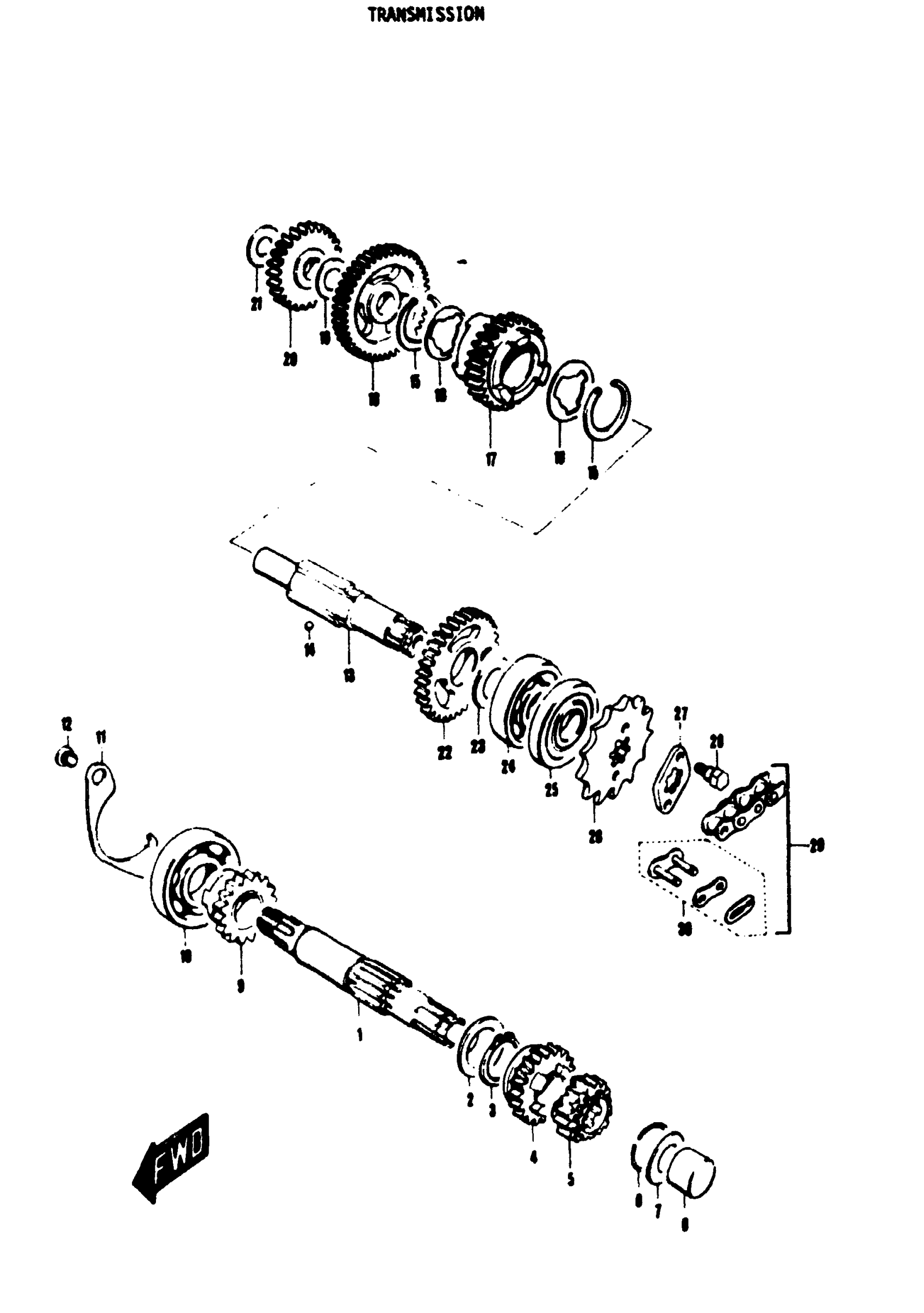

Suzuki F50 (1971) TRANSMISSION Diagram

#

Description
Price

1

COUNTER SHAFT | NT:11

24121-19002

Unavailable

2

COUNTER SHAFT THRUST WASHER | 21x30x1

09160-21005

$2.06

3

CIRCLIP This part replaces 08331-11219.

08331-31219

$2.43

4

3RD DRIVE GEAR | NT:20

24231-19001

Unavailable

5

2ND DRIVE GEAR | NT:15

24221-19002

Unavailable

6

2ND DRIVE GEAR CIRCLIP

09380-17005

Unavailable

7

THRUST WASHER

08211-12241

$2.06

8

BUSH | 12x19x11 This part replaces 09300-12007.

09300-12008

Unavailable

9

KICK DRIVEN GEAR | NT:16

26280-19000

Unavailable

10

COUNTER SHAFT BEARING | 30x62x10

09262-30003

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 24741-05000.

24741-35000

Unavailable

12

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

13

NO DESCRIPTION AVAILABLE This part replaces 24131-19001.

24131-19002

Unavailable

14

STEEL BALL

06111-05004

$1.49

15

BALL SET RING

09381-30001

Unavailable

16

WASHER

09167-26001

Unavailable

17

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 24331-19001.

24331-19002

Unavailable

18

1ST DRIVEN GEAR | NT:46

24310-19002

Unavailable

19

THRUST WASHER | OF.NO.191043

08211-12241

$2.06

20

KICK IDLE GEAR | NT:26

26260-03002

Unavailable

21

THRUST WASHER

08211-12241

$2.06

22

2ND DRIVEN GEAR | NT:33

24321-19001

Unavailable

23

WASHER, 2ND DRIVE GEAR | 17x29x1 This part replaces 09160-17001.

09181-17223

$2.96

24

BEARING

08113-63030

$23.65

25

DRIVE SHAFT OIL SEAL | 17x40x7

09283-17006

Unavailable

26

ENGINE SPROCKET | NT:13

27511-19000

$14.98

26

ENGINE SPROCKET | NT:14, OPT

27511-19700

Unavailable

27

ENGINE SPROCKET PLATE

27512-19000

Unavailable

28

ENGINE SPROCKET BOLT

09111-06007

Unavailable

29

DRIVE CHAIN ASS'Y | #420x102L; Includes Item(s) 30

27600-05012

Unavailable

30

JOINT (DID) This part replaces 27620-01011.

27620-01012

$6.87
