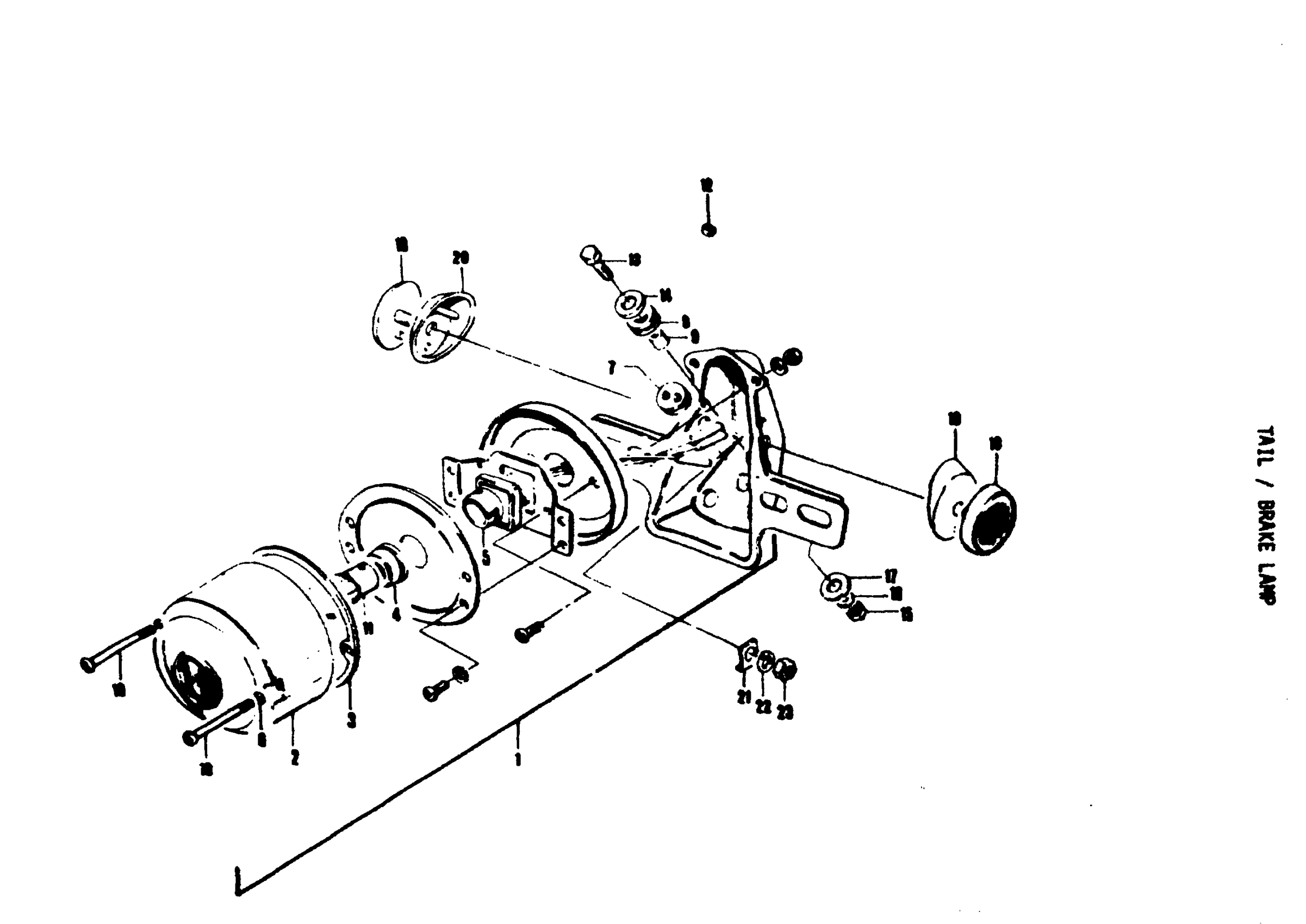

Suzuki F50 (1971) TAIL / BRAKE LAMP Diagram

#

Description
Price

1

TAIL/BRAKE LAMP ASS'Y | 6V; Includes Item(s) 2 - 11

35710-20601

Unavailable

2

LENS, RR COMB L This part replaces 35712-15011.

35712-06112

$35.16

3

LENS GASKET

35713-15010

Unavailable

4

SOCKET This part replaces 35718-05610.

35718-05611

Unavailable

5

BRACKET

35726-18600

Unavailable

6

LENS WASHER

35727-03010

Unavailable

7

GROMMET

35728-18610

Unavailable

8

CUSHIO

35765-15010

Unavailable

9

SPACER This part replaces 35766-15010.

35766-37110

$5.28

10

SCREW

02113-04558

Unavailable

11

BULB | 6V, 21/3CP

09471-06009

$3.99

12

GROMMET

09308-05005

$3.00

13

BOLT This part replaces 01111-06208.

01500-06207

$2.28

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

REAR REFLECTER

35970-18602

Unavailable

19

RH REFLECTER SPACER

35995-18600

Unavailable

20

LH REFLECTER SPACER

35996-18600

Unavailable

21

REFLECTER WASHER

35997-18600

Unavailable

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

NUT This part replaces 08311-11058.

08310-00057

$1.84
