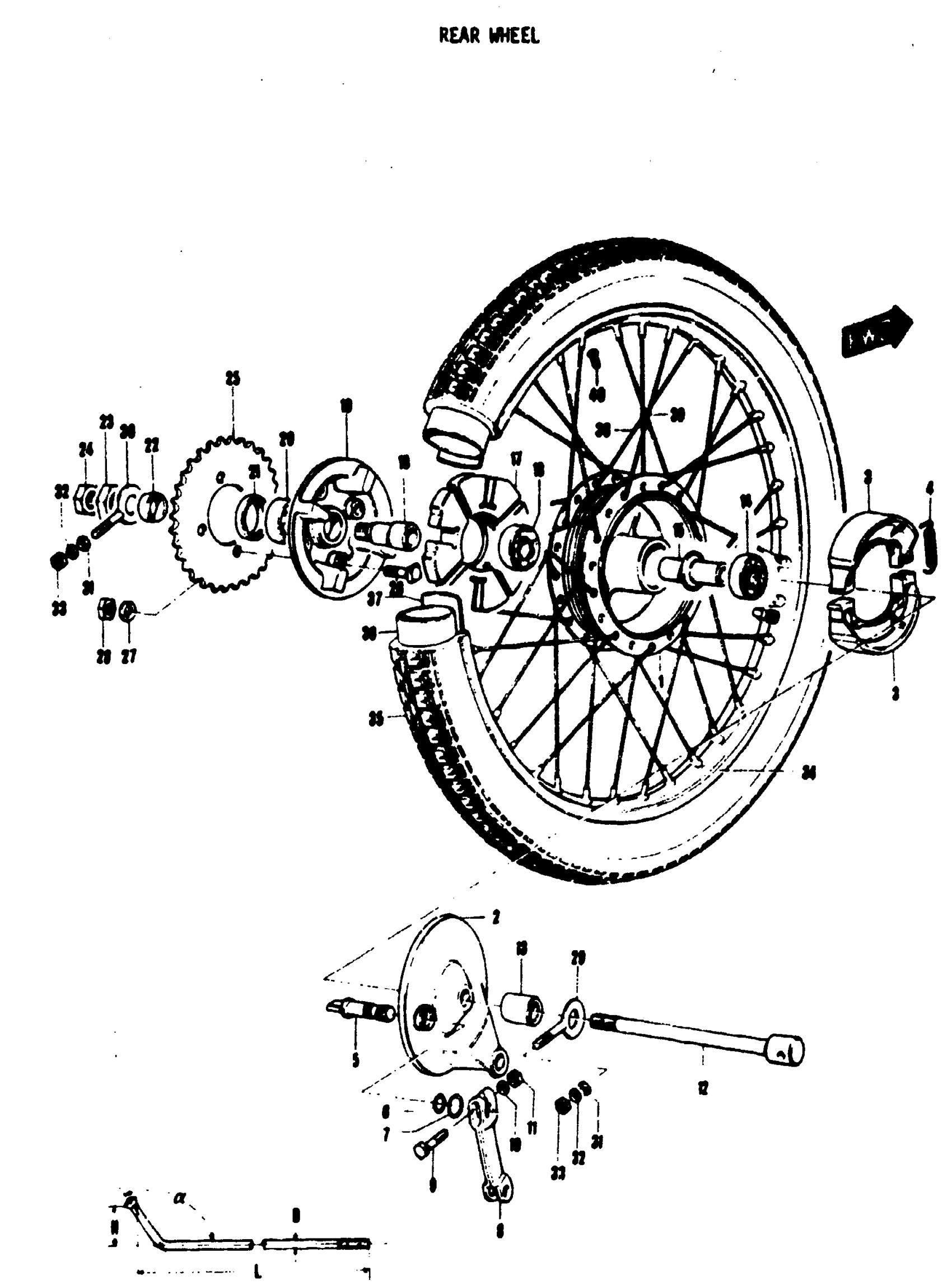

Suzuki F50 (1971) REAR WHEEL Diagram

#

Description
Price

0

REAR HUB ASS'Y | Includes Item(s) 1 - 24

64100-20000

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 64110-01000.

64100-22820

Unavailable

2

PANEL, REAR HUB This part replaces 64210-01003.

64210-01004

Unavailable

3

BRAKE SHOE

54410-01002

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

BRAKE CAM SHAFT

54441-01000

Unavailable

6

BRAKE CAM SHAFT O RING | ID:12, D.:2.4

09280-12001

$2.90

7

BRAKE CAM SHAFT O RING WASHER | 12.5x20x1

09160-12011

$1.54

8

RR BRAKE LEVER This part replaces 64451-20000.

64451-20001

Unavailable

9

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

AXLE,REAR This part replaces 64711-20000.

64711-35400

$28.92

13

REAR AXLE SPACER | 12.2x22x30.5

64741-01601

Unavailable

14

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

15

REAR HUB BEARING SPACER | ID:12.7, W:58

64730-01000

Unavailable

16

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

17

ABSORBER,RR WHL This part replaces 64651-01000.

64651-010B1

$21.50

18

REAR SPROCKET DRUM SHAFT

64761-01000

Unavailable

19

REAR SPROCKET DRUM

64611-01000

Unavailable

20

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

21

SEAL,OIL | 25 40x6 This part replaces 09285-25001.

09285-25007

$7.05

22

SPROCKET DRUM SHAFT SPACER | 17x25x10.5

09180-17004

$6.63

23

REAR SPROCKET DRUM SHAFT NUT

09140-16005

$3.75

24

NUT

08311-21108

Unavailable

25

SPROCKET, REAR | NT:32 This part replaces 64511-01780.

64511-27750

Unavailable

26

REAR SPROCKET BOLT | OD:8, L:33.5

09105-08001

$2.06

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

NUT This part replaces 08312-31088.

08310-00087

$2.13

29

ADJUSTER, CHAIN This part replaces 61411-01001.

61411-01002

$7.37

30

LH CHAIN ADJUSTER

61421-01001

Unavailable

31

WASHER This part replaces 08322-21068.

08322-01067

$2.13

32

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

33

.NUT This part replaces 08311-11068.

08310-00067

$2.13

34

RIM WHEEL | 1.20x17 This part replaces 55311-01020.

55311-01021

Unavailable

35

REAR TIRE | 2.25-17

65100-01010

Unavailable

36

INNER TUBE ASS'Y | 2.25-17

55200-01600

Unavailable

37

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

$6.88

37

NO DESCRIPTION AVAILABLE | Includes Item(s) 38 - 40 This part replaces 65301-01817.

65320-01010

Unavailable

38

REAR INNER SPOKE | D:2.9, L:161 H:6.5, L:101

65321-01021

Unavailable

39

REAR OUTER SPOKE | D:2.9, L:160.5 H:8, A:83.5

65322-01021

Unavailable

40

REAR SPOKE NIPPLE

65325-01020

Unavailable
