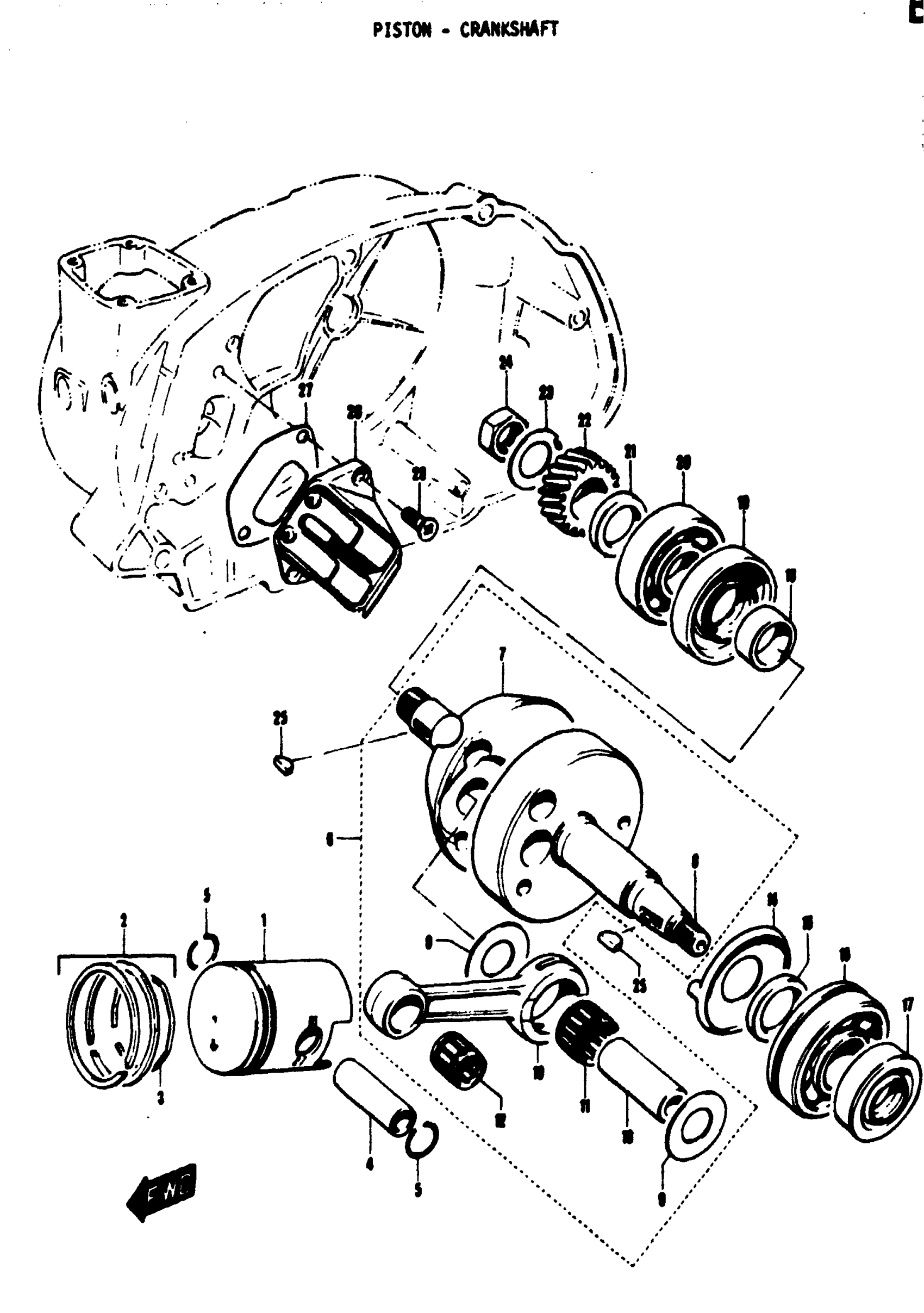

Suzuki F50 (1971) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

PISTON/RING SET This part replaces 12110-19600.

12100-92820

Unavailable

1

PISTON, SET | OS:0.5, OPT This part replaces 12110-19720.

12103-35810-050

Unavailable

1

PISTON SET | OS:1.0, OPT This part replaces 12110-19730.

12103-35810-100

Unavailable

2

PISTON RING SET This part replaces 12140-05828.

12140-05100

Unavailable

2

NO DESCRIPTION AVAILABLE | OS:0.5, OPT This part replaces 12140-05829.

12140-05100-050

Unavailable

2

NO DESCRIPTION AVAILABLE | OS:1.0, OPT This part replaces 12140-05830.

12140-05100-100

Unavailable

3

EXPANDER RING

12149-06110

Unavailable

4

PIN, PISTON | 8x12x34 This part replaces 12151-02000.

12151-04700

$7.22

5

SNAP RING

09381-12001

$1.49

6

CRANKSHAFT ASS'Y | Includes Item(s) 7 - 13

12000-19803

Unavailable

7

RH CRANKSHAFT

12221-19001

Unavailable

8

LH CRANKSHAFT

12261-19000

Unavailable

9

CONNECTING ROD THRUST WASHER | 16x32x1

09160-16011

Unavailable

10

CONNECTING ROD This part replaces 12161-13100.

12161-04710

$82.35

11

BEARING, 16X22X11.8 | 16x22x12 This part replaces 09263-16002.

09263-16034

$19.20

12

BEARING (12X16X16) | 12x16x16 This part replaces 09263-12003.

09263-12023

$10.19

13

CRANK PIN

12211-19000

Unavailable

14

OIL GUIDE PLATE

12511-06100

Unavailable

15

CRANKSHAFT LH SPACER | 20x28x1.5

09180-20017

$5.63

16

LH CRANKSHAFT BEARING | 20x40x14

09269-20004

Unavailable

17

OIL SEAL, RH | 20x37x8 This part replaces 09283-20011.

09283-20034

$5.18

18

RH CRANKSHAFT SPACER | 17x23x9

09180-17026

Unavailable

19

OIL SEAL | 23x47x8 This part replaces 09283-23001.

09283-23002

$7.63

20

BEARING

08113-63030

$23.65

21

PRIMARY DRIVE GEAR SPACER | 17x28x4.5

09180-17027

Unavailable

22

PRIMARY DRIVE GEAR | NT: 21

21111-19001

Unavailable

23

PRIMARY DRIVE GEAR WASHER

09166-14003

Unavailable

24

PRIMARY DRIVE GEAR NUT

09140-14002

$3.40

25

KEY

08341-31039

$1.89

26

REED VALVE ASS'Y

13150-19013

Unavailable

27

REED VALVE GASKET

13156-19001

Unavailable

28

SCREW

02121-05168

Unavailable
