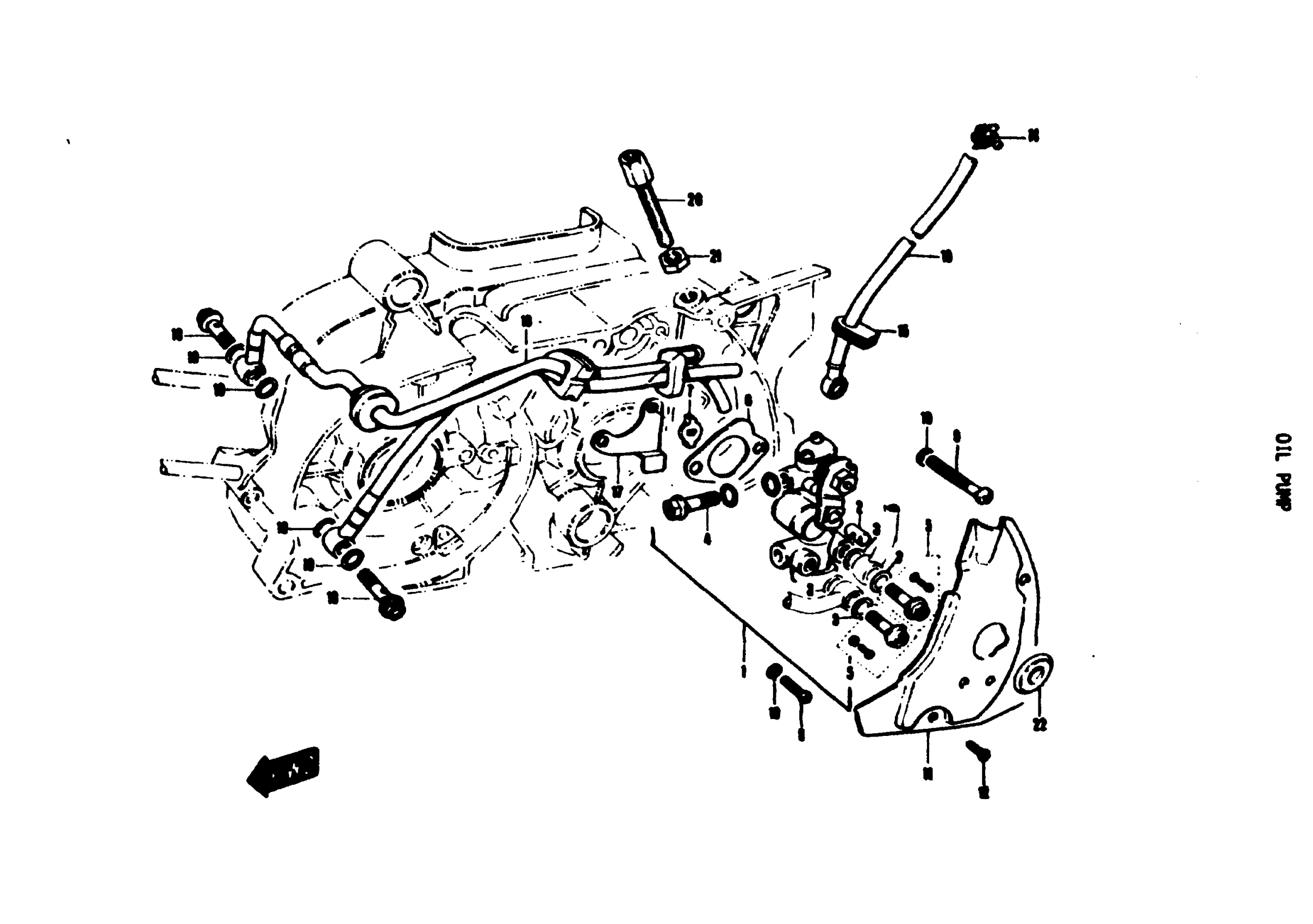

Suzuki F50 (1971) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASS'Y | Includes Item(s) 2 - 5

16001-19804

Unavailable

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

3

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

4

UNION BOLT

09360-06005

Unavailable

5

OIL PUMP UNION BOLT ASS'Y

16760-19001

Unavailable

6

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

7

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

8

SCREW This part replaces 02111-05168.

02112-05167

$1.97

9

SCREW

02111-05308

Unavailable

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

OIL PUMP COVER

11385-19000

Unavailable

12

SCREW

02111-06108

Unavailable

13

HOSE, OIL (L:512!97) This part replaces 16810-05031.

16810-07520

Unavailable

14

OIL HOSE CLAMP This part replaces 09400-00107.

09400-10302

Unavailable

15

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

16

OIL OUTLET PIPE

16820-19032

Unavailable

17

OUTLET HOSE CLAMP

16816-19000

Unavailable

18

UNION BOLT

09360-06005

Unavailable

19

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

20

OIL PUMP CABLE ADJUSTER

09119-08003

Unavailable

21

NUT This part replaces 08312-21088.

08310-00087

$2.13

22

PUMP ADJUST HOLE PLUG

09250-20008

Unavailable
