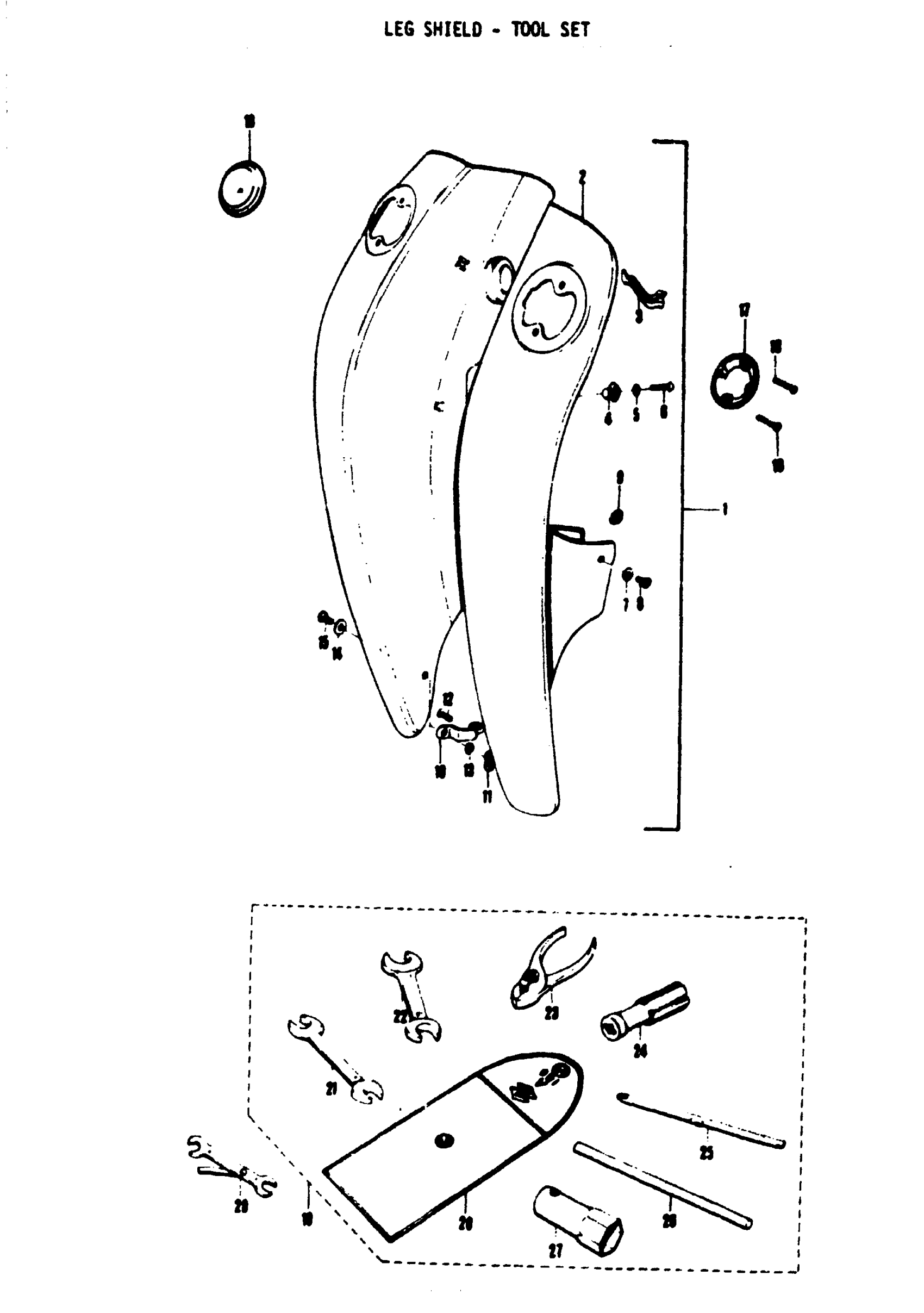

Suzuki F50 (1971) LEG SHIELD - TOOL SET Diagram

#

Description
Price

1

LEG SHIELD ASS'Y | Includes Item(s) 2 - 18

48100-19001-148

Unavailable

2

LEG SHIELD

48111-19001-148

Unavailable

2

LEG SHIELD FITTINGS

48200-19813-148

Unavailable

3

TURN SIGNAL LEAD COAD COVER

48481-19001-148

Unavailable

4

LEG SHIELD UPPER SPACER | 6.5x24x14.5

48191-19000

Unavailable

5

WASHER | 6.5x18x1.6 This part replaces 09160-06006.

09160-06084

$1.78

6

SCREW This part replaces 02141-06308.

02142-06307

$1.57

7

WASHER | 6.5x18x1.6 This part replaces 09160-06006.

09160-06084

$1.78

8

SCREW

02141-06128

Unavailable

9

LEG SHIELD LOWER SPACER

48211-02000

Unavailable

10

LEG SHIELD LOWER RH BRACE

48171-19001

Unavailable

11

LEG SHIELD LOWER LH BRACE

48181-19001

Unavailable

12

SCREW This part replaces 02111-06128.

02112-06127

$1.84

13

.NUT This part replaces 08311-11068.

08310-00067

$2.13

14

WASHER | 6.5x18x1.6 This part replaces 09160-06006.

09160-06084

$1.78

15

SCREW

02141-06208

Unavailable

16

LEG SHIELD FRONT COVER

35622-19010

Unavailable

17

LEG SHIELD REAR COVER

35623-19900-148

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 02131-04168.

02131-04167

Unavailable

19

TOOL SET | Includes Item(s) 20 - 27

09800-00101

Unavailable

20

TOOL BAG

09811-00114

Unavailable

21

10x12M/M OPEN END WRENCH

09813-00006

Unavailable

22

14x17M/M OPEN END WRENCH

09813-00009

Unavailable

23

135M/M PILERS

09812-00001

Unavailable

24

DRIVER GRIP

09814-00007

Unavailable

25

COMBINATION SCREW DRIVER

09814-00001

Unavailable

26

BOX WRENCH HANDLEBAR

09816-00023

Unavailable

27

21M/M BOX WRENCH

09816-00007

Unavailable

28

POINT WRENCH | OPT.

09930-20111

Unavailable
