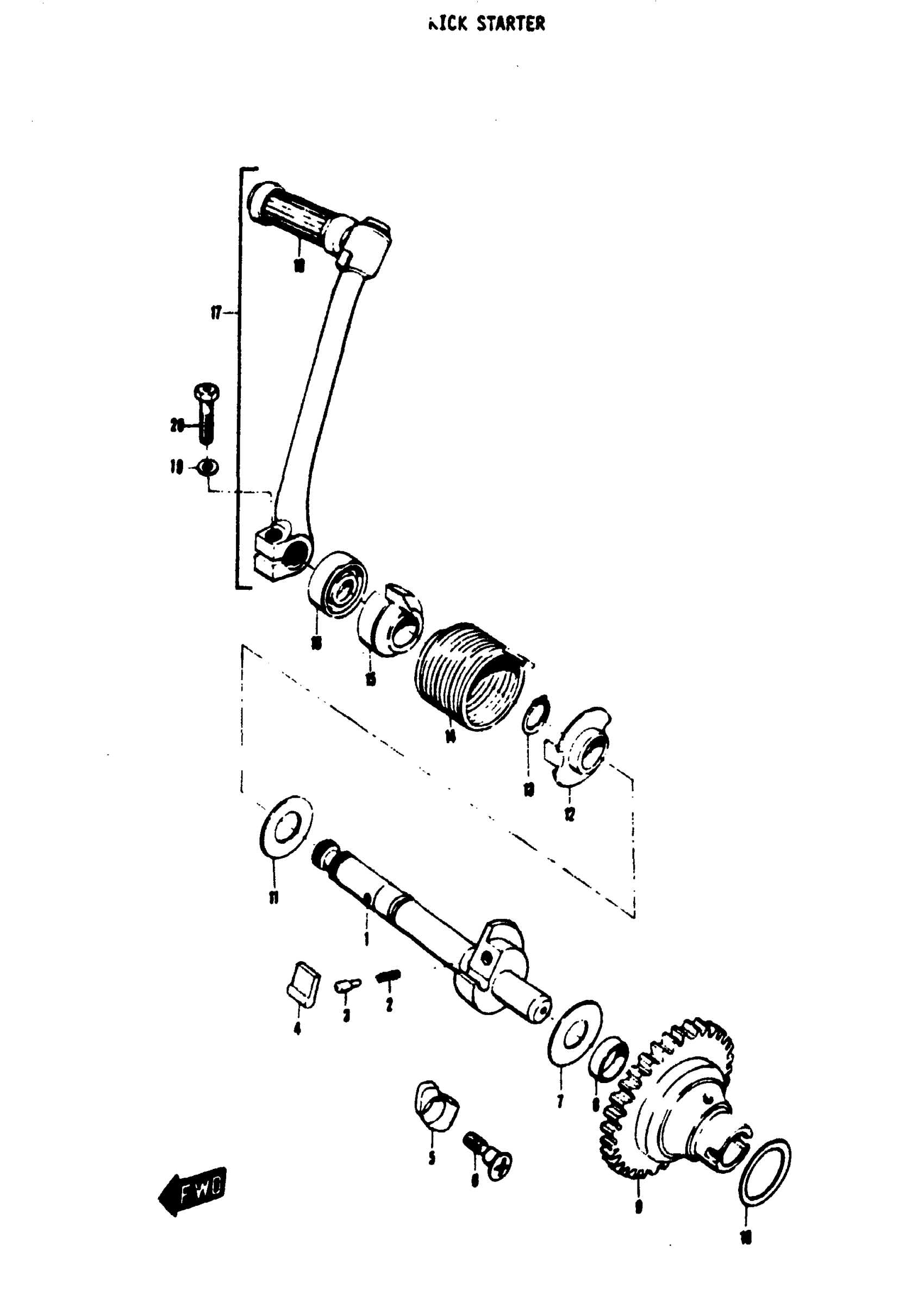

Suzuki F50 (1971) KICK STARTER Diagram

#

Description
Price

1

KICK SHAFT

26211-05000

Unavailable

2

KICK PAWL SPRING | 3.4x4.5x12.5

09440-04010

$1.54

3

KICK PAWL PIN

09209-05012

Unavailable

4

KICK PAWL

26231-01000

Unavailable

5

KICK PAWL LIFTER

26332-06000

Unavailable

6

KICK PAWL LIFTER SCREW

09139-06002

$2.38

7

THRUST WASHER

08211-12302

$2.16

8

KICK DRIVE GEAR RUBBER

09284-12006

Unavailable

9

KICK DRIVE GEAR | NT:33

26241-19001

Unavailable

10

KICK DRIVE GEAR RH WASHER | 20x27x1

09160-20009

Unavailable

11

WASHER (14X29X1.5) This part replaces 09160-14005.

09160-14046-XC0

$4.83

12

KICK SHAFT SPRING HOLDER

26222-01001

Unavailable

13

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

14

KICK SHAFT SPRING

09448-38001

Unavailable

15

KICK SHAFT SPRING GUIDE

26221-01030

Unavailable

16

OIL SEAL (14X24X6) | 14x24x6 This part replaces 09285-14001.

09285-14002

$16.88

17

KICK LEVER ASS'Y

26300-06100

Unavailable

18

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

BOLT This part replaces 01112-06258.

01500-06257

$1.97
