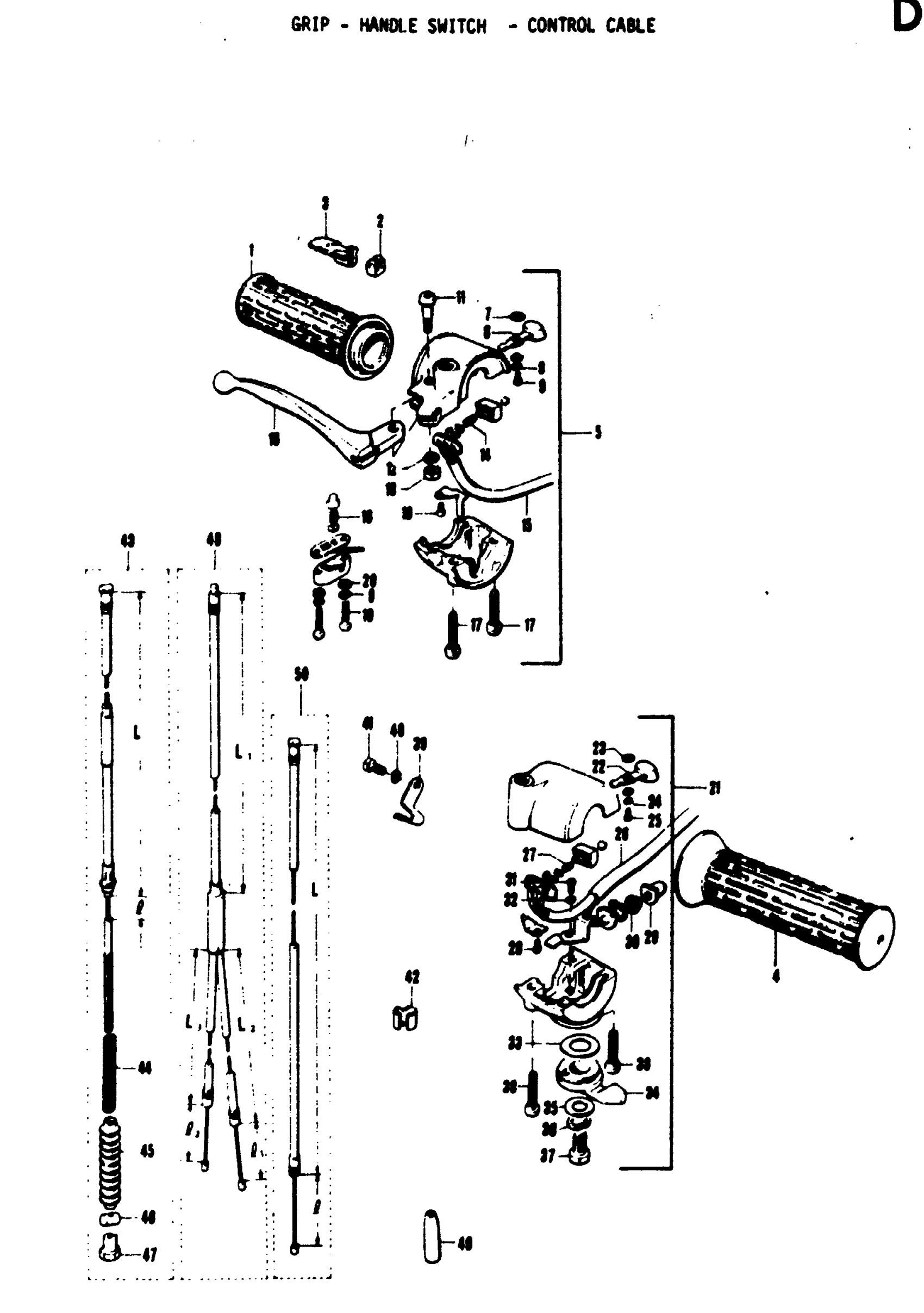

Suzuki F50 (1971) GRIP - HANDLE SWITCH - CONTROL CABLE Diagram

#

Description
Price

1

THROTTLE GRIP COMP.

57110-03813

Unavailable

2

THROTTLE END PIECE

57121-01010

Unavailable

3

THROTTLE SLIDING PIECE

57122-01011

Unavailable

4

LH GRIP

57211-03010

Unavailable

5

RH SWITCH ASS'Y | Includes Item(s) 6 - 20

57300-19110

Unavailable

6

SWITCH KNOB

57320-01011

Unavailable

7

SWITCH KNOB SPRING WASHER

57334-01010

Unavailable

8

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

9

SWITCH KNOB SCREW | 3SCREW, L:5

09125-03103

Unavailable

10

BRAKE LEVER

57421-19110

Unavailable

11

SCREW This part replaces 57431-01011.

57431-01012

$5.24

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

SWITCH CONTACT SPRING

57337-01010

Unavailable

15

RH SWITCH WIRING HARNESS

57340-19110

Unavailable

16

SCREW | 3SCREW, L:5

09125-03103

Unavailable

17

SCREW,5X22 | 5SCREW, L:22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

18

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

19

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

20

WASHER This part replaces 08322-21038.

08322-01037

$1.93

21

LH SWITCH ASS'Y | Includes Item(s) 22 - 35

57500-19010

Unavailable

22

SWITCH KNOB

57320-01011

Unavailable

23

SWITCH KNOB SPRING WASHER

57334-01010

Unavailable

24

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

25

SWITCH KNOB SCREW | 3SCREW, L:5

09125-03103

Unavailable

26

LH SWITCH WIRING HARNESS

57540-03010

Unavailable

27

SWITCH CONTACT SPRING

57337-01010

Unavailable

28

SCREW | 3SCREW, L:5

09125-03103

Unavailable

29

SWITCH PUSH BUTTON

57370-01311

Unavailable

30

SWITCH PUSH BUTTON SPRING

57382-01311

Unavailable

31

SCREW | 3SCREW, L:5

09125-03103

Unavailable

32

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

33

STARTER LEVER ADJUST WASHER | 10x21x1.6

58722-03010

$3.71

34

LEVER, STARTER This part replaces 58721-03011.

58721-25611

Unavailable

35

.WASHER (6.5X16X1) | 6.5x16x1.0 This part replaces 58723-03010.

09160-06129

$2.30

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

BOLT

01111-06108

Unavailable

38

SCREW,5X22 | 5SCREW, L:22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

39

THROTTLE CABLE CLAMP

09403-00019

Unavailable

40

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

41

BOLT

01111-06108

Unavailable

42

CONTROL CABLE CLIP

09408-00002

$2.30

43

FRONT BRAKE CABLE ASS'Y | L:1110, 2:40; Includes Item(s) 44 - 47

58100-07731

Unavailable

44

SPRING

09440-06003

$2.44

45

DUST SEAL

09287-07001

$2.00

46

PIN

09209-10001

$1.49

47

NUT

09150-05101

$3.04

48

THROTTLE CABLE COMP. | L1:650, L2:450, L3:280 L1:87, L2:50; Includes Item(s) 49

58300-19000

Unavailable

49

DUST SEAL

09287-10003

Unavailable

50

STARTER CABLE | L:930, L:63

58410-05700

Unavailable
