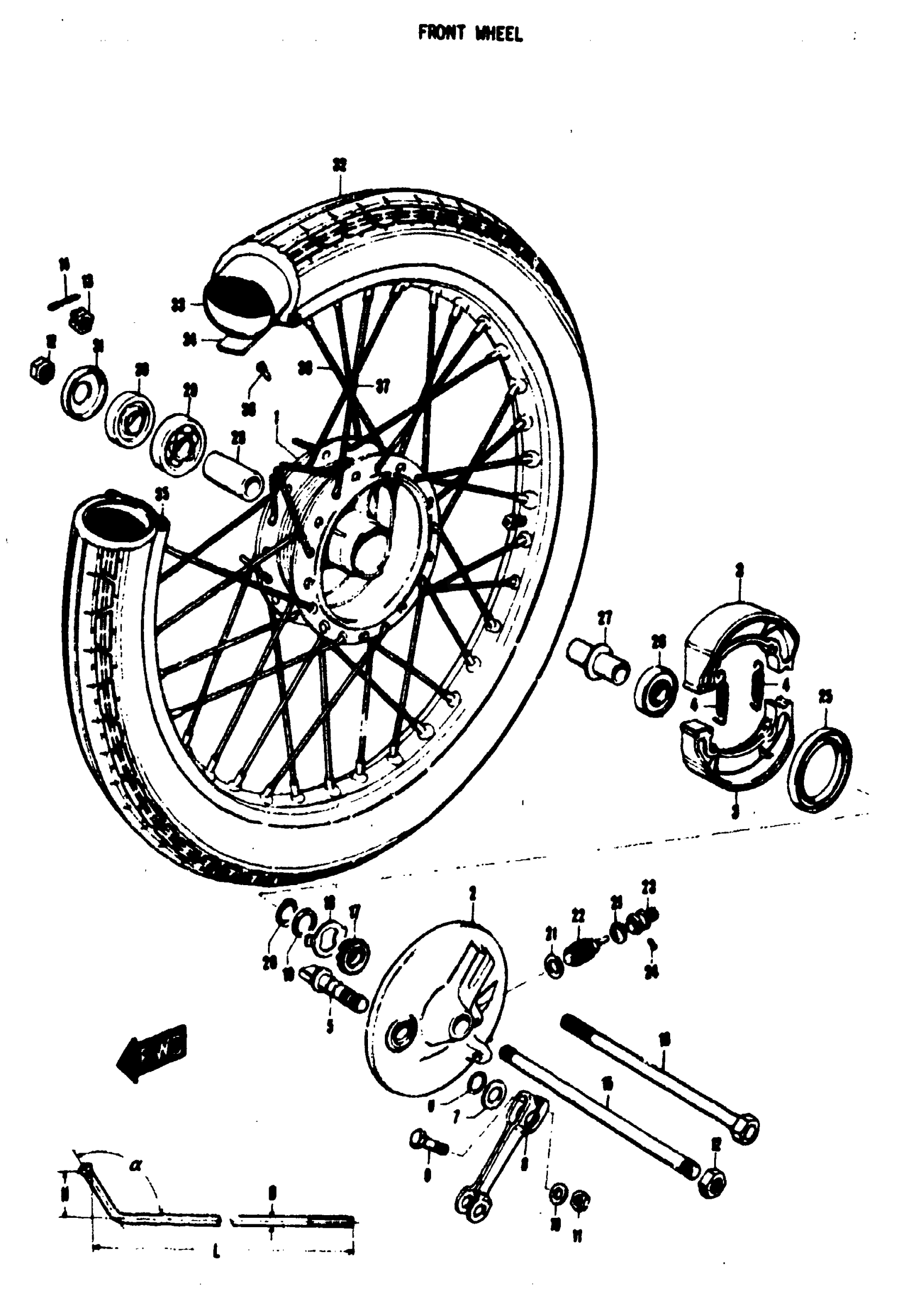

Suzuki F50 (1971) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | Includes Item(s) 1 - 31

54100-06611

Unavailable

1

FRONT HUB DRUM

54110-01004

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 54210-06003.

54210-06004

Unavailable

3

BRAKE SHOE

54410-01002

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

BRAKE CAM SHAFT

54441-01000

Unavailable

6

BRAKE CAM SHAFT O RING | ID:12, D.:2.4

09280-12001

$2.90

7

BRAKE CAM SHAFT O RING WASHER | 12.5x20x1

09160-12011

$1.54

8

BRAKE CAM LEVER

54451-02002

Unavailable

9

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

NUT

08311-21108

Unavailable

13

NUT This part replaces 08314-11107.

08314-3110A

$1.99

14

COTTER PIN

04111-20258

Unavailable

15

FRONT AXIE

54711-03100

Unavailable

16

FRONT AXIE

54710-03601

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 54611-03000.

54611-03002

Unavailable

18

SPEEDOMETER GEAR DRIVER | F50

54661-03000

Unavailable

19

SPEEDOMETER GEAR WASHER | 16x22x1

09160-16005

Unavailable

20

CIRCLIP This part replaces 08331-11159.

08331-3115A

$2.25

21

WASHER,5.1X9X0. | 5x9x0.45x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

22

NO DESCRIPTION AVAILABLE This part replaces 54621-03000.

54621-03001

Unavailable

23

SPEEDOMETER DRIVEN GEAR OUTER

54632-01001

$12.80

24

SCREW,3X4.3 | 3SCREW, L:4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

25

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

26

BEARING This part replaces 08143-63000.

08143-6300B

$15.33

27

FRONT HUB BEARING SPACER

54730-01000

Unavailable

28

FRONT AXLE SPACER | 10x15x12.4

09180-10003

Unavailable

29

BEARING

08113-62000

$13.63

30

OIL SEAL (15X31X5)

09284-15001

$4.73

31

FRONT HUB DUST SEAL COVER

54892-01000

Unavailable

32

FRONT TIRE | 2.25-17

55100-01010

Unavailable

33

INNER TUBE ASS'Y | 2.25-17

55200-01600

Unavailable

34

PROTECTOR, INNER TUBE | 1.20x17 This part replaces 55261-01010.

55261-02B40

$6.88

35

RIM WHEEL This part replaces 55311-01020.

55311-01021

Unavailable

35

SPOKE SET FR | Includes Item(s) 36 - 38 This part replaces 55301-01812.

55320-01012

$36.58

36

FRONT INNER SPORK | D:2.6, L:160.5 H:5.8, A:104

55321-01021

Unavailable

37

FRONT OUTER SPORK | D:2.6, L:160 H:7.1, A:87.5

55322-01021

Unavailable

38

FRONT SPORK NIPPLE

55325-01020

Unavailable
