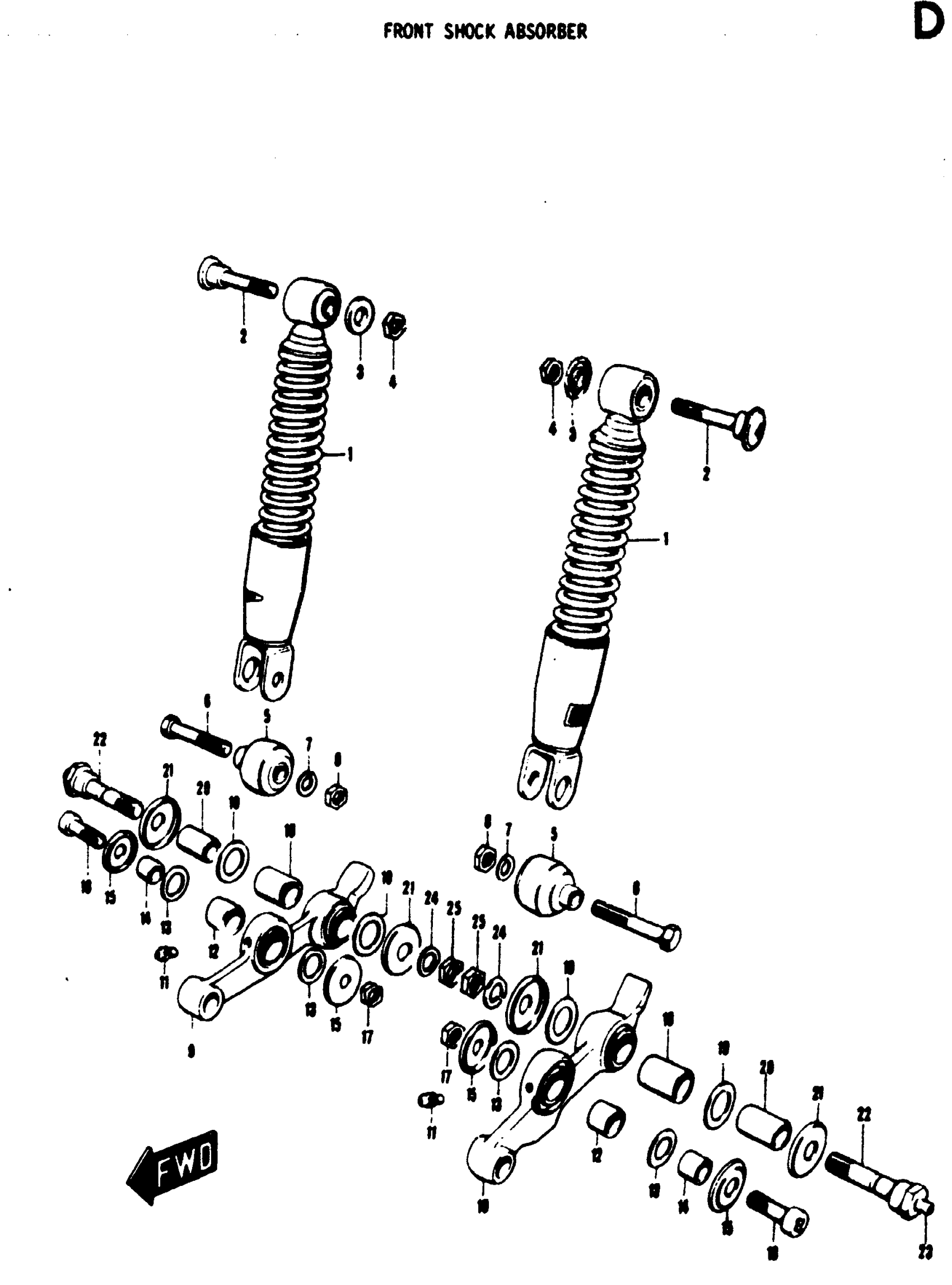

Suzuki F50 (1971) FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

FRONT SHOCK ABSORBER ASS'Y

52100-19010

Unavailable

2

FRONT SHOCK ABSORBER UPPER SCR

09139-08001

Unavailable

3

UPPER WASHER

09169-08002

Unavailable

4

NUT This part replaces 08312-31088.

08310-00087

$2.13

5

FRONT BRAKE STOPPER

54350-19000

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 09100-08002.

09100-08290

Unavailable

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

NUT This part replaces 08312-31088.

08310-00087

$2.13

9

RH ROCKET ARM COMP.

52410-06000

Unavailable

10

LH ROCKET ARM COMP.

52420-06000

Unavailable

11

GREASE NIPPLE

08351-11009

$7.51

12

ROCKER ARM CENTER BUSHING | 12x16x11.8

09307-12002

Unavailable

13

ROCKER ARM CENTER DUST SEAL | 19x24x2.5

09281-19001

Unavailable

14

SPACER, CENTER | 8x12x12.5 This part replaces 09180-08004.

09180-08074

Unavailable

15

ROCKER ARM CENTER DUST SEAL CA

52451-02000

Unavailable

16

FRONT SHOCK ABSORBER LOWER BOL

09130-08001

Unavailable

17

NUT This part replaces 08312-31088.

08310-00087

$2.13

18

ROCKER ARM REAR BUSHING | 14x17x24

09307-14001

Unavailable

19

ROCKER ARM REAR DUST SEAT | 22x28x2.5

09281-22001

Unavailable

20

NO DESCRIPTION AVAILABLE | 10x14x24.5 This part replaces 09319-10002.

52433-16D00

Unavailable

21

ROCKER ARM REAR DUST SEAL CAP

52452-02000

Unavailable

22

ROCKER ARM REAR BOLT

52471-19000

Unavailable

23

GREASE NIPPLE

08351-11009

$7.51

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

NUT This part replaces 08312-11108.

08310-00107

$2.19
