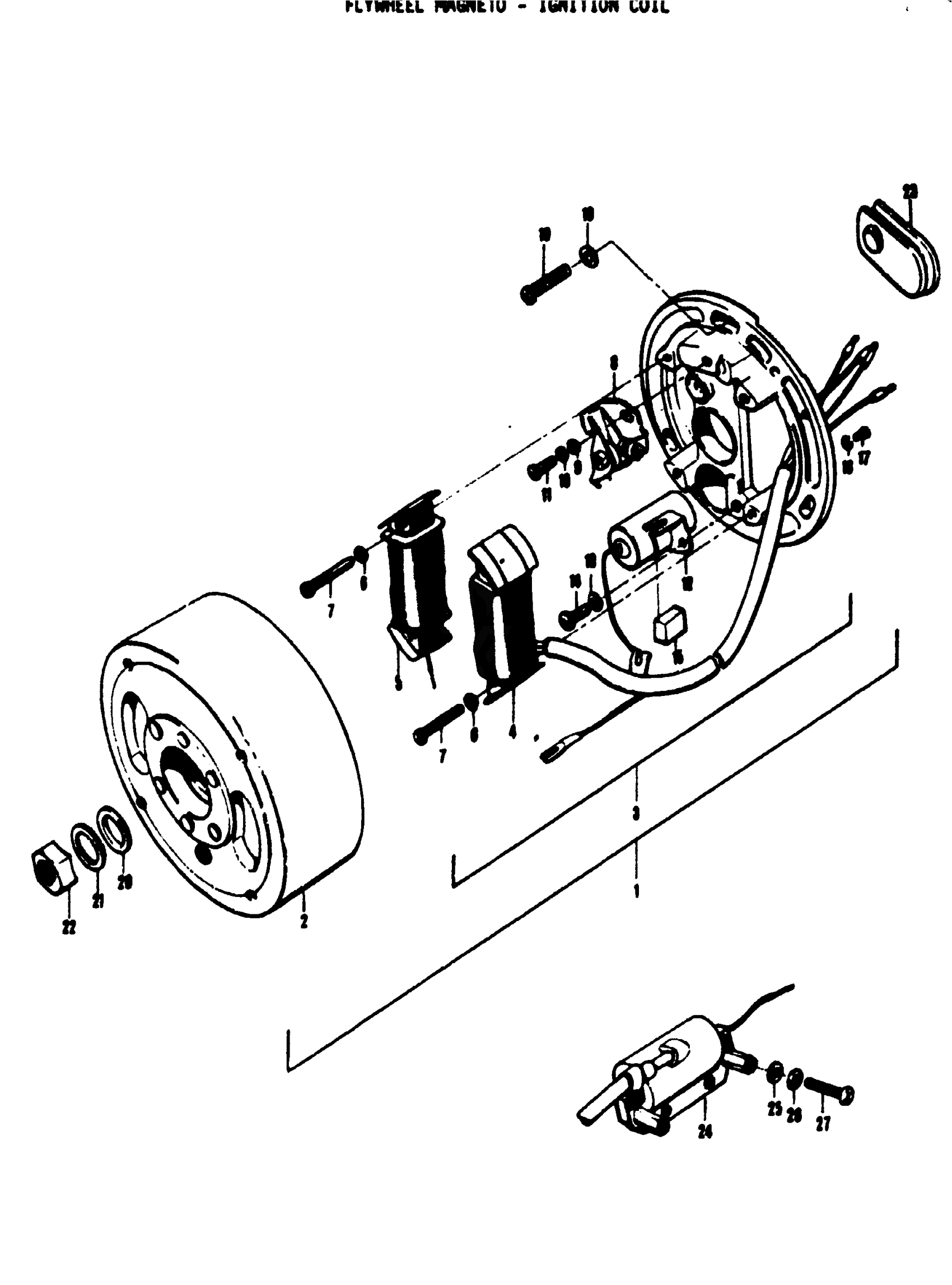

Suzuki F50 (1971) FLYWHEEL MAGNETO - IGNITION COIL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 17 This part replaces 32100-22010.

32100-43010

Unavailable

2

FLYWHEEL ROTOR

32102-22010

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 32101-22010.

32101-22011

Unavailable

4

LAMP COIL

32120-03110

Unavailable

5

COIL, PRIMARY This part replaces 32140-03110.

32140-26612

Unavailable

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

SCREW

02111-04258

Unavailable

8

CONTACT POINT This part replaces 32240-03010.

32240-43012

$38.45

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

12

CONDENSER

32341-03110

Unavailable

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

15

CONTACT BREAKER CAM

32338-03110

Unavailable

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

SCREW This part replaces 02111-04068.

02112-0406B

$1.55

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

NUT This part replaces 08311-11108.

08310-00107

$2.19

23

GROMMET This part replaces 09309-09006.

09309-09007

Unavailable

24

IGNITION COIL ASS'Y

33410-19010

Unavailable

25

WASHER This part replaces 08322-21058.

08322-01057

$2.13

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

SCREW

02111-05128

Unavailable
