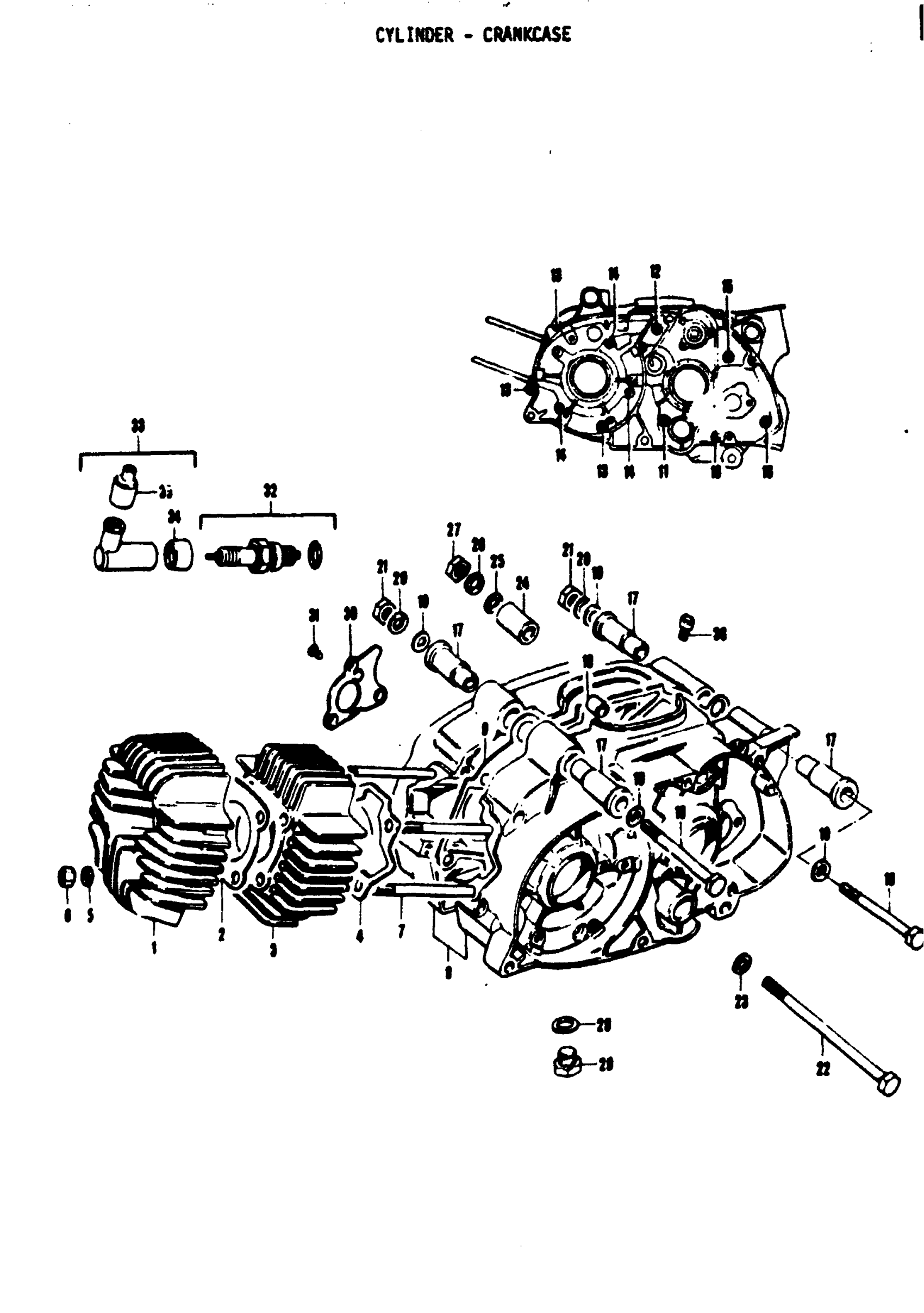

Suzuki F50 (1971) CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CYLINDER HEAD

11111-19001

Unavailable

2

GASKET, CYLINDER HEAD This part replaces 11141-06101.

11141-06110

$5.05

3

CYLINDER

11211-19000

Unavailable

4

GASKET,CYLINDER This part replaces 11241-19000.

11241-19010

$5.13

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

.NUT This part replaces 08311-11068.

08310-00067

$2.13

7

BOLT,STUD This part replaces 01421-06958.

01421-0695A

$2.32

8

CRANKCASE ASSY

11305-19802

Unavailable

9

CRANKCASE GASKET

11481-19000

Unavailable

10

DOWEL PIN | Includes Item(s) 11 - 16

04211-09129

$1.65

11

SCREW This part replaces 02112-06608.

02112-06607

$2.57

12

SCREW This part replaces 02112-06558.

02112-06557

$2.53

13

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

14

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

15

SCREW This part replaces 02112-06358.

02112-06357

$1.78

16

SCREW This part replaces 02112-06308.

02112-06307

$1.97

17

ENGINE MOUNTING BUSH

09319-08005

Unavailable

18

BOLT | 8x105 This part replaces 09100-08024.

09100-08228

$7.02

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

ENGINE MOUNTING BOLT (B) | 8x110

09100-08026

Unavailable

22

NO DESCRIPTION AVAILABLE | 8x140 ~F.NO.207780 This part replaces 09100-08046.

09100-08171

Unavailable

23

WASHER This part replaces 09160-08030.

09160-08128

$2.80

24

MUFFLER MOUNTING SPACER | 8.5x18x29.1 ~F.NO.207780

09180-08010

Unavailable

25

WASHER | 8.2x22x3.2 This part replaces 09160-08030.

09160-08128

$2.80

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

NUT This part replaces 08312-11088.

08310-00087

$2.13

28

CRANK DRAIN PLUG GASKET

09168-10002

$2.13

29

CRANK DRAIN PLUG

09247-10001

$2.20

30

OIL RESERVOIR PLATE

12561-19002

Unavailable

31

SCREW This part replaces 02121-06168.

02122-06167

$1.49

32

SPARK PLUG (NGK, BP4H) | NGK, BP-4H. This part replaces 09482-00036.

09482-00290

$2.92

32

SPARK PLUG ASS'Y | NGK, B-4H, OPT

09482-00011

Unavailable

32

SPARK PLUG B6HS | NGK, B-6HS, OPT This part replaces 09482-00048.

09482-00095

$3.32

33

SPARK PLUG CAP ASS'Y | Includes Item(s) 34 - 35

33501-10801

Unavailable

34

CAP SEAL

33541-11000

Unavailable

35

HIGH TENSION CORD SEAL

33542-51000

Unavailable

36

BREATHER PLUG

09250-10005

Unavailable
