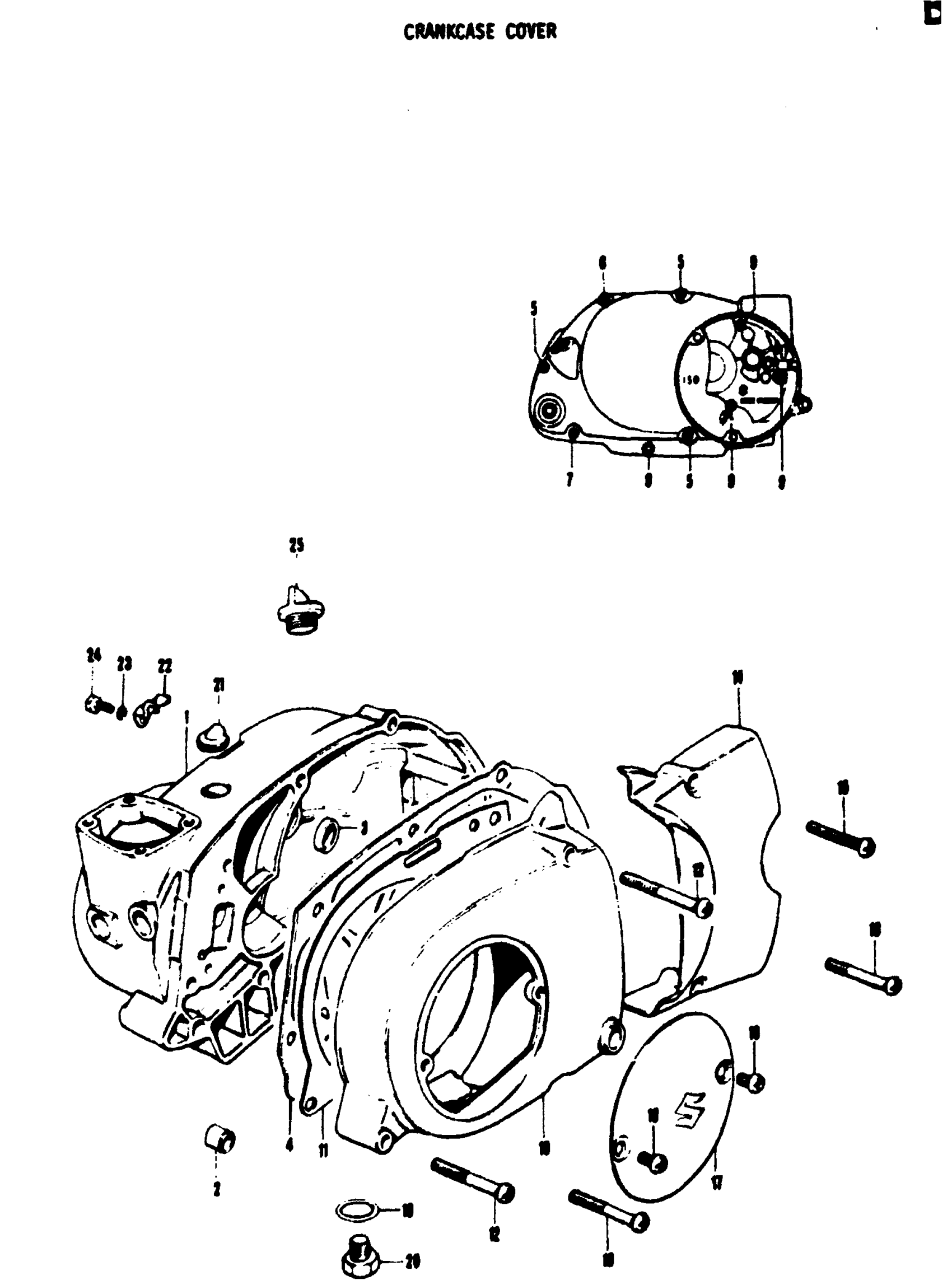

Suzuki F50 (1971) CRANKCASE COVER Diagram

#

Description
Price

1

CRANKCASE RH COVER

11340-19003

Unavailable

2

DOWEL PIN

04211-09129

$1.65

3

CRANKCASE RH COVER OIL SEAL | 10x17x5

09284-10002

$2.90

4

CRANKCASE RH COVER GASKET

11482-19003

Unavailable

5

SCREW This part replaces 02112-06708.

02112-06707

$2.53

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

8

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

9

SCREW This part replaces 02112-06258.

02112-06257

$1.78

10

NO DESCRIPTION AVAILABLE This part replaces 11351-22000.

11351-22001

Unavailable

11

CRANKCASE LH COVER GASKET

11483-22000

Unavailable

12

SCREW

02111-06508

Unavailable

13

SCREW

02111-06408

Unavailable

14

ENGINE SPROCKET COVER

11360-19300

Unavailable

15

SCREW

02111-06458

Unavailable

16

SCREW

02111-06358

Unavailable

17

GENERATOR INSPECTION CAP

11381-01000

Unavailable

18

SCREW

02111-05088

Unavailable

19

DRAIN PLUG GASKET

09168-14002

$2.26

20

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

21

BOOST HOSE GROMMET

09308-07003

Unavailable

22

FUEL HOSE PROTECTOR

15859-19000

Unavailable

23

OIL LEVEL PLUG GASKET

09168-06001

$1.49

24

OIL LEVEL PLUG

09247-06001

Unavailable

25

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02
