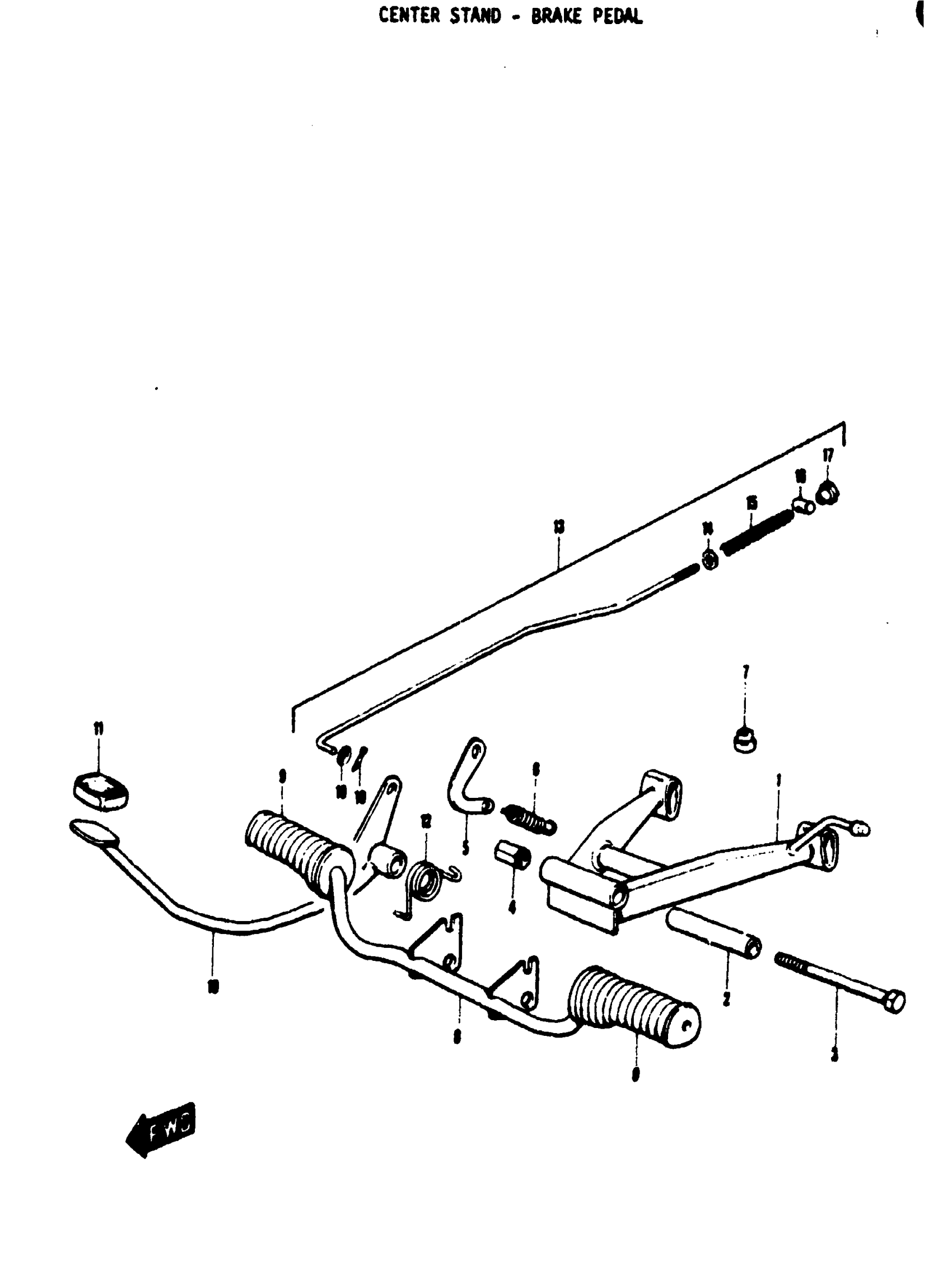

Suzuki F50 (1971) CENTER STAND - BRAKE PEDAL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42100-19000.

42100-19010

Unavailable

2

CENTER STAND SPACER | 10.4x16.1x84.4

42211-03001

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 42221-03000.

42221-03001

Unavailable

4

CENTER STAND NUT

42231-09000

Unavailable

5

HOOK,CENTER STA This part replaces 42251-03002.

42251-03004

Unavailable

6

SPRING This part replaces 09443-16002.

09443-16007

Unavailable

7

CENTER STAND CUSHION

09321-10001

$2.61

8

FRONT FOOTREST BAR

43510-19100

Unavailable

9

RUBBER This part replaces 43551-03000.

43551-03001

$7.22

10

BRAKE PEDAL COMP.

43110-19000

Unavailable

11

BRAKE PEDAL RUBBER

43151-01000

Unavailable

12

BRAKE PEDAL RETURN SPRING

09448-32001

Unavailable

13

BRAKE ROD ASS'Y | Includes Item(s) 14 - 17

43300-20000

Unavailable

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

SPRING

09440-09004

$2.20

16

PIN

09209-11002

$2.19

17

.NUT This part replaces 09150-06001.

09150-06010

$3.10

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

COTTER PIN

04111-20188

Unavailable
