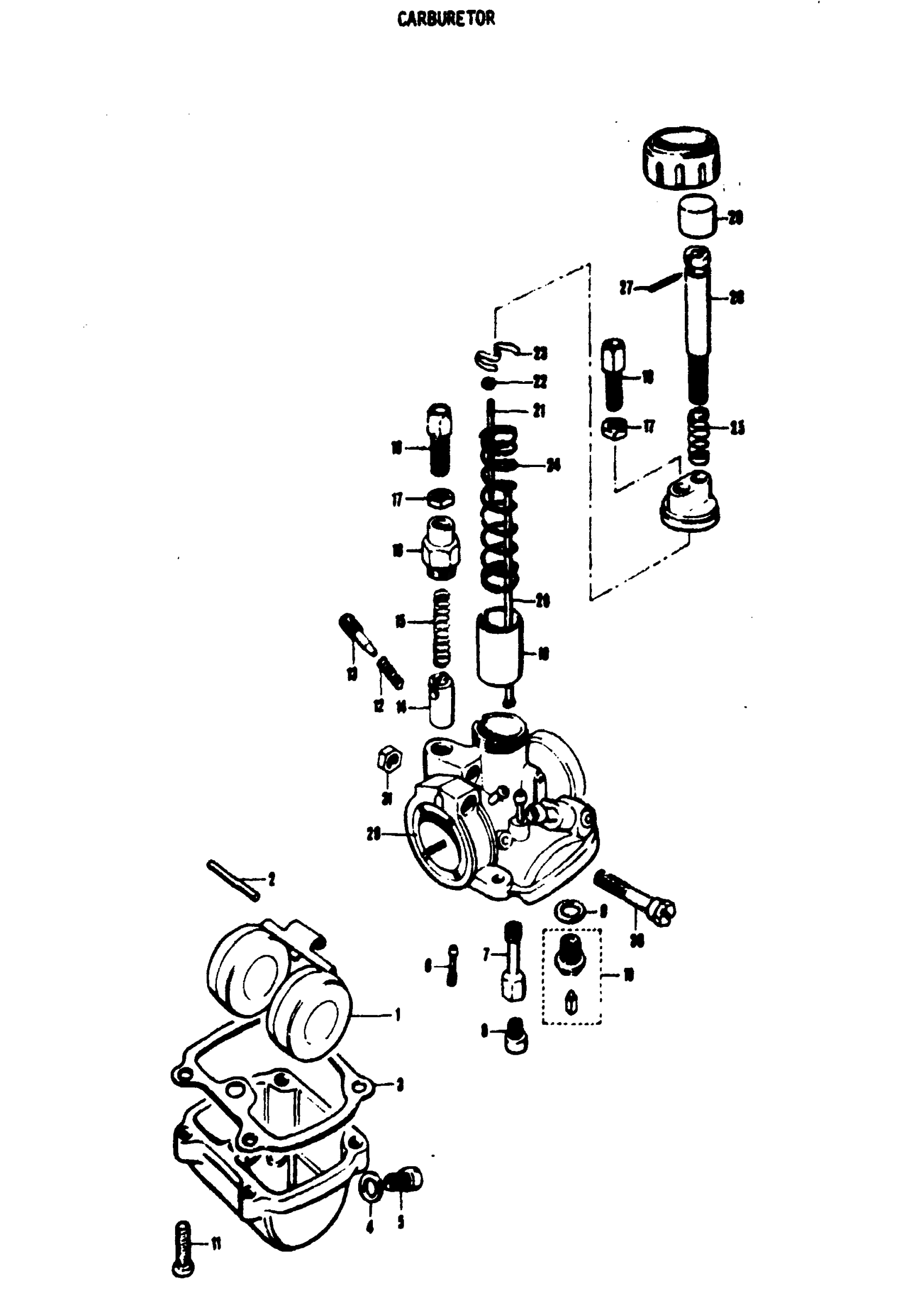

Suzuki F50 (1971) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 31

13200-19013

Unavailable

1

FLOAT COMP.

13252-06110

Unavailable

2

.PIN, FLOAT

13254-01010

$3.62

3

FLOAT CHAMBER GASKET

13251-01011

$5.45

4

DRAIN PLUG GASKET

13249-05010

$1.98

5

DRAIN PLUG

13247-05010

$5.11

6

JET, PILOT (17.5) | #17.5 This part replaces 09492-17002.

09492-17006

$9.50

7

NEEDLE LET | E-0

09494-00049

Unavailable

8

.JET (#102.5) | #102.5 This part replaces 09491-20004.

09491-20012

$11.38

8

JET, MAIN (100) | #100, OPT This part replaces 09491-20003.

09491-20017

$9.69

9

NEEDLE VALVE SEAT GASKET

13392-01010

$2.15

10

VALVE,NEEDLE This part replaces 13370-01011.

13370-03310

Unavailable

11

FLOAT CHAMBER SCREW

13243-05110

Unavailable

12

PILOT AIR ADJUSTING SPRING

13268-01010

$5.28

13

PILOT AIR ADJUSTING SCREW

13269-01010

$14.20

14

STARTER PLUNGER

13411-01010

$18.43

15

STARTER PLUNGER SPRING

13417-01010

$4.62

16

STARTER PLUNGER This part replaces 13418-03110.

13418-63110

Unavailable

17

CABLE ADJUSTER NUT

13661-03010

$5.67

18

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

19

THROTTLE VALVE | CA:2.5

13551-19010

Unavailable

20

THROTTLE VALVE ADJUSTING ROD

13296-05010

$7.95

21

NEEDLE, JET | 3F3-3 This part replaces 13383-19011.

13383-04110

Unavailable

22

E RING This part replaces 13394-12110.

13394-40D00

$5.43

23

PLATE This part replaces 13581-01010.

13581-07910

Unavailable

24

THROTTLE VALVE SPRING

13573-05010

Unavailable

25

THROTTLE ADJUSTER SPRING

13268-05010

$5.67

26

THROTTLE VALVE STOP SCREW

13267-05010

$14.20

27

COTTER PIN

04111-12068

Unavailable

28

THROTTLE ADJUSTER CAP

13688-08010

$4.43

29

CARBURETOR INSULATOR

13285-05010

Unavailable

30

CARBURETOR CLIP BOLT

13323-05110

Unavailable

31

CARBURETOR CLIP NUT

13324-05110

Unavailable
