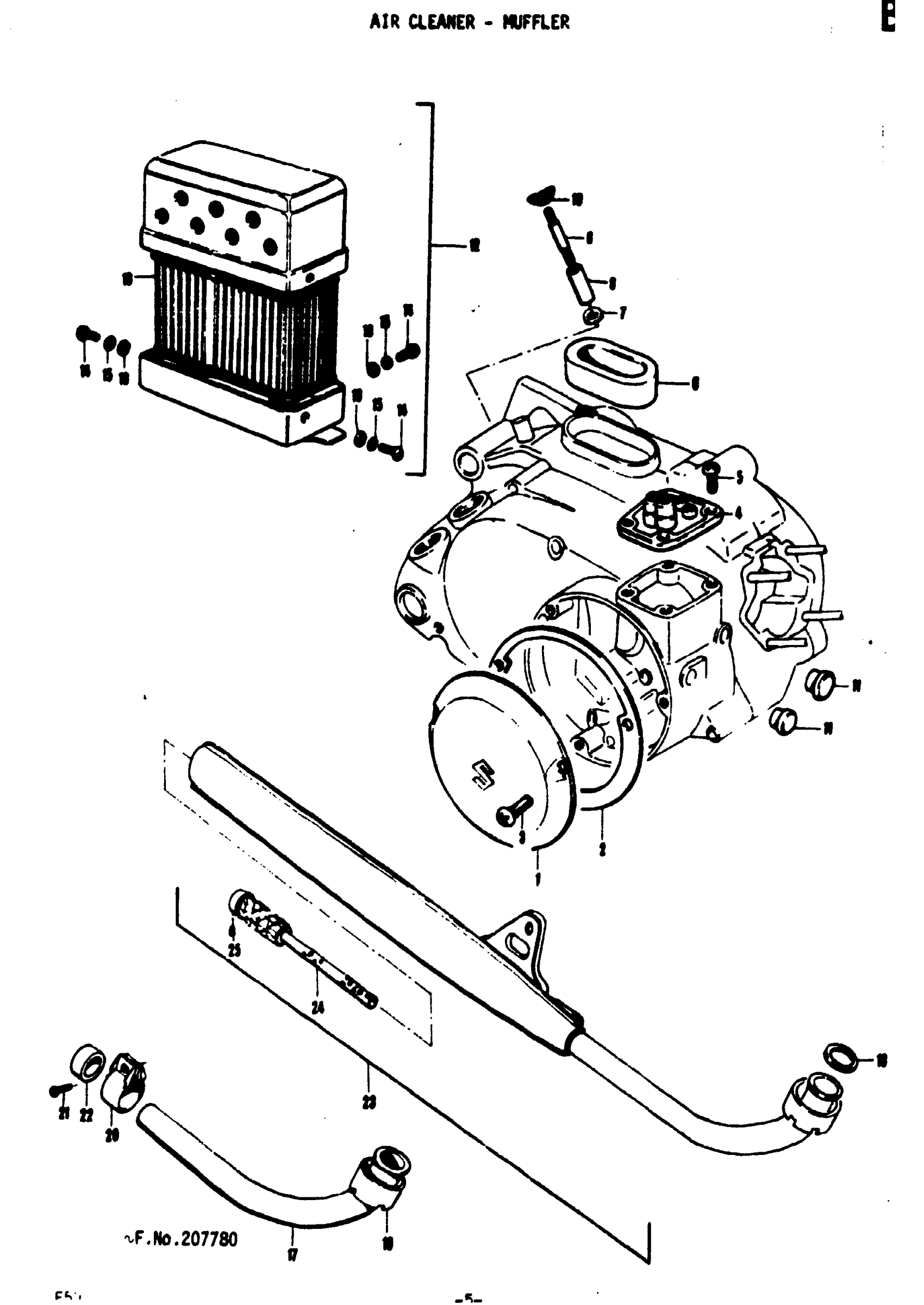

Suzuki F50 (1971) AIR CLEANER - MUFFLER Diagram

#

Description
Price

1

CARBURETOR INSPECTION CAP

11383-19001

Unavailable

2

CARBURETOR INSPECTION CAP GASK

11492-05002

$6.77

3

INSPECTION CAP SCREW | 5SCREW, L:14

09125-05102

$1.61

4

CARBURETOR TOP COVER COMP.

11440-05004

Unavailable

5

CARBURETOR COVER SCREW | 5SCREW, L:14

09125-05102

$1.61

6

CARBURETOR AIR INLET HOSE

13880-19000

Unavailable

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

SPACER (6.5X10X20) This part replaces 09180-06031.

09180-06296

$2.45

9

STUD BOLT This part replaces 01421-06308.

01421-06307

$2.62

10

NUT This part replaces 09144-06003.

08317-1206A

$2.40

11

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.25

12

AIR CLEANER ASS'Y | Includes Item(s) 13 - 16

13700-19011

Unavailable

13

AIR CLEANER ELEMENT

13780-19011

Unavailable

14

SCREW

02111-04088

Unavailable

15

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

16

WASHER This part replaces 08322-21048.

08322-01047

$1.86

17

EXHAUST PIPE | PM; ~F.NO.207780

14150-19002

Unavailable

18

GASKET,EXHAUST | 27.5x37.5x2 This part replaces 14181-19000.

14181-19001

$7.73

18

EXHAUST PIPE GASKET | PM; ~F.NO.122127 26.5x38x5

14181-19010

Unavailable

19

NO DESCRIPTION AVAILABLE | PM; ~F.NO.207780 This part replaces 14182-19000.

14182-43000

Unavailable

20

MUFFLER CONNECTING CLAMP | PM; ~F.NO.207780

09402-00081

Unavailable

21

SCREW | PM; ~F.NO.207780

02111-06208

Unavailable

22

MUFFLER CONNECTOR | PM; ~F.NO.207780

14771-19010

Unavailable

23

MUFFLER ASSY | Includes Item(s) 24 - 25

14301-19002

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 14510-06104.

14510-23040

Unavailable

25

SCREW This part replaces 02111-05068.

09125-05122

$2.06
