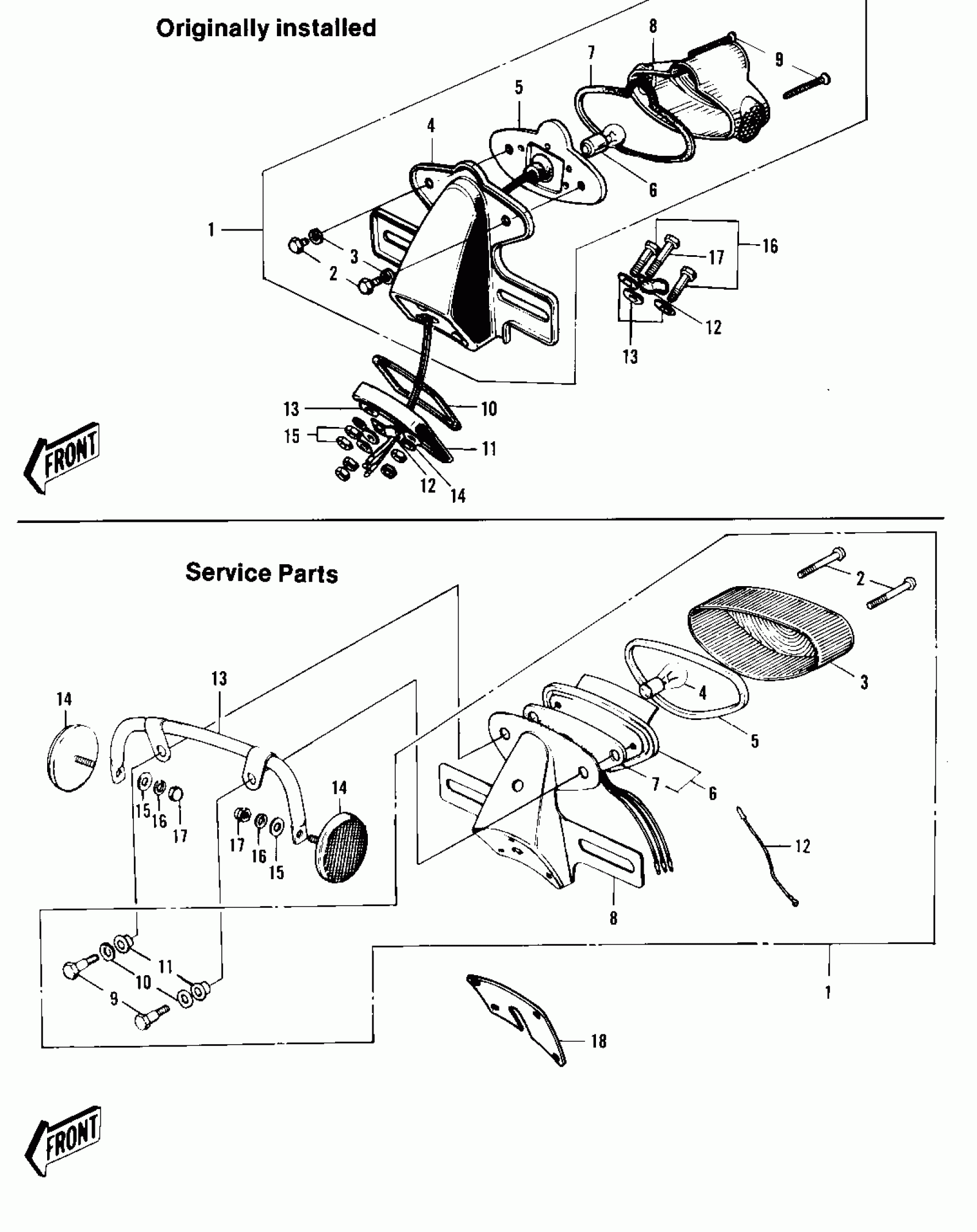

Kawasaki F5-A TAILLIGHT Diagram

#

Description
Price

1

LAMP ASSY-TAIL,BLACK

23024-019-21

$146.81

2

.BOLT HEX HEAD 5X10

110N0510A

$3.19

3

WASHER SPRING 5MM

461F0500

$0.69

4

BKT LICENSE PLT BLACK

23036-007-10

$55.29

5

SOCKET TAIL LAMP

23027-009

Unavailable

6

BULB 6V 3/21CP

92069-023

Unavailable

7

GASKET TAIL LAMP

23028-008

Unavailable

8

LENS TAIL LAMP

23026-010

Unavailable

9

SCREW PAN HEAD 4X50

220E0450

$6.15

10

STAY-TAIL LAMP

35031-005

Unavailable

11

DAMPER RUBBER

35016-004

Unavailable

12

CLIP WIRING HARNESS

35024-002

Unavailable

13

WASHER,6.5X20X1.6

92022-125

$1.40

14

WASHER SPRING 6MM

461F0600

$0.69

15

NUT 6MM

312B0600

$0.72

16

BOLT-HEX HEAD,6X32

110N0632

Unavailable

17

BOLT-UPSET,6X40

112G0640

$2.22

1

LAMP ASSY-TAIL,BLACK

23024-019-21

$146.81

2

SCREW

220R0455

$5.03

2

SCREW

220R0455

$5.03

3

LENS-TAIL LAMP

23026-022

Unavailable

4

BULB 6V 3/21CP

92069-023

Unavailable

5

GASKET-TAIL LAMP LENS

23028-016

$10.56

6

CASE-TAIL LAMP

23027-029

Unavailable

7

GASKET-TAIL LAMP CASE

23028-015

Unavailable

8

BKT-LICENSE PLT,BLACK

23036-014-21

Unavailable

9

BOLT

92001-111

$2.43

10

WASHER,8.5X20X1.6

92022-1561

$4.31

11

DAMPER RUBBER

92075-091

Unavailable

12

WIRE IGNITION LEAD

26011-014

$1.52

13

BRACKET-REFLECTOR

28013-002

Unavailable

14

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

15

WASHER-PLAIN,5MM

411B0500

$0.46

16

WASHER SPRING 5MM

461F0500

$0.69

17

NUT-CAP,5MM

322N0500

$2.85

18

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

18

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable
