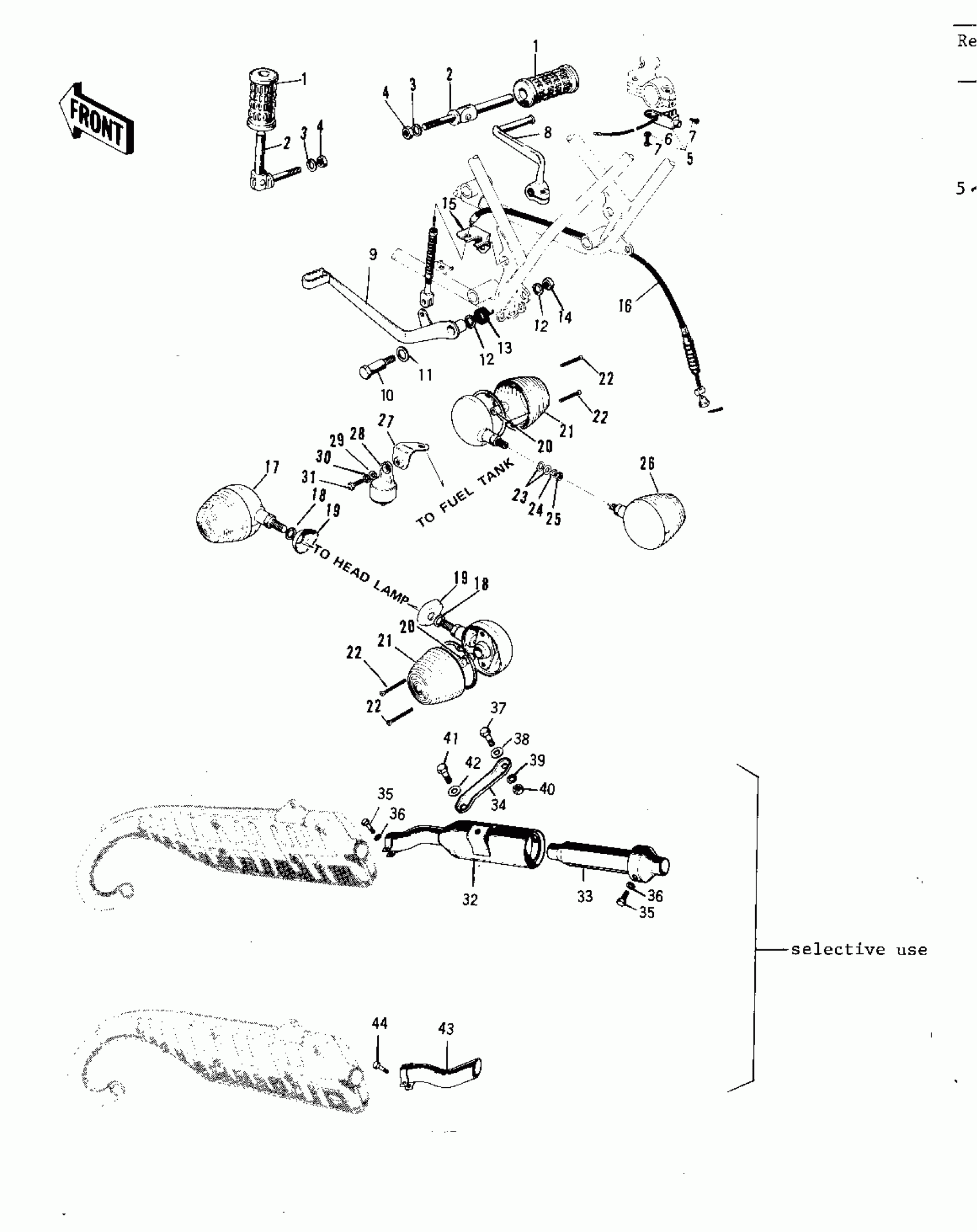

Kawasaki F5-A OPTIONAL PARTS Diagram
#
1
RUBBER REAR FOOTREST
92076-008
Unavailable
2
FOOTREST BAR REAR
34027-013
Unavailable
3
WASHER SPRING 10MM
461F1000
$0.67
4
NUT-HEX-FINE,10MM
314B1000
$0.67
5~7
SWITCH ASSY-ENG STOP
46027-006
Unavailable
6
WASHER SPRING 3MM
461F0300
$0.46
7
SCREW-PAN-CROS,3X6
220B0306
$0.63
8
PEDAL GR CHG RH OPT
13156-037
Unavailable
9
PEDAL-BRAKE
43001-034
$29.17
10
BOLT-BRAKE PEDAL
92001-092
$14.63
11
WASHER BRAKE PEDAL
92022-085
$3.92
12
WASHER-PLAIN,10MM
411B1000
$0.93
13
SPRING-BRAKE PEDAL
43005-014
$4.65
14
NUT-HEX-FINE,10MM
315B1000
$0.58
15
BRACKET-CABLE
32067-012
$4.57
16
CABLE-REAR BRAKE
54022-019
$15.81
17
LAMP-FRONT TURN SIG
23040-032
$55.29
18
WASHER-PLAIN,10MM
411B1000
Unavailable
19
DAMPER RUBBER
92075-058
Unavailable
20
BULB,6V 8W
92069-042
$7.65
21
LENS TURN SIGNAL LAMP
23048-011
$16.56
22
SCREW OVL CNTSNK 3X15
222B0315A
$2.93
23
WASHER PLAIN 10MM
410B1000
$0.58
24
WASHER SPRING 10MM
461F1000
$0.67
25
NUT-HEX-FINE,10MM
315B1000
$0.58
26
LAMP-REAR TURN SIGNA
23043-030
$44.51
27
BRACKET-TRN.SGNL.RLY
27023-001
Unavailable
28
RELAY-TURN SIGNAL
27002-009
Unavailable
29
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
30
WASHER SPRING 6MM
461F0600
$0.69
31
SCREW-PAN-CROS,6X16
220B0616
$2.84
32
TAIL PIECE
18048-013
$35.36
33
SPARK ARRESTER COMP
18033-044
$37.37
34
BRACKET-MUFFLER
18024-016
$7.04
35
BOLT,6X10
112G0610
$0.58
36
WASHER LOCK 6MM
464H0600
Unavailable
37
BOLT-HEX HEAD,10X35
110B1035
$3.78
38
WASHER PLAIN 10MM
410B1000
$0.58
39
WASHER SPRING 10MM
461F1000
$0.67
40
NUT 10MM
312B1000
$1.10
41
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
42
WASHER SPRING 8MM
461F0800
$0.40
43
TAIL PIECE
18048-016
Unavailable
44
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
