Description

Price

1

CAP OIL TANK

52003-009

Unavailable

2

"0" RING,36MM

670B3036

$1.03

4

COLLAR

92027-103

$3.58

5

DAMPER RUBBER

92075-051

$3.92

6

GAUGE OIL LEVEL

52015-001

Unavailable

7

BOLT-UPSET

112G0625

$3.62

8

WASHER SPRING 6MM

461F0600

$0.69

9

WASHER,6.5X20X1.6

92022-125

$1.40

10

DAMPER RUBBER-MUFFLER

18063-005

$5.21

11

COLLAR

92027-102

$1.08

12

WASHER,8X26X2.3

92022-1564

$4.31

13

WASHER SPRING 8MM

461F0800

$0.40

14

NUT,8MM

311B0800

$0.67

15

BOLT-UPSET

112G0618

$1.01

16

WASHER PLAIN 8MM

411B0800

$0.93

17

GASKET,10,2X15X1.5T

11009-1146

Unavailable

18

CONNECTOR BANJO

92061-003

Unavailable

19

BOLT OIL TANK BANJO

92060-001

Unavailable

20

CLAMP,TUBE

92037-010

$3.92

21

PIPE

92059-064

Unavailable

22

GROMMET-OIL PIPE

92071-041

Unavailable

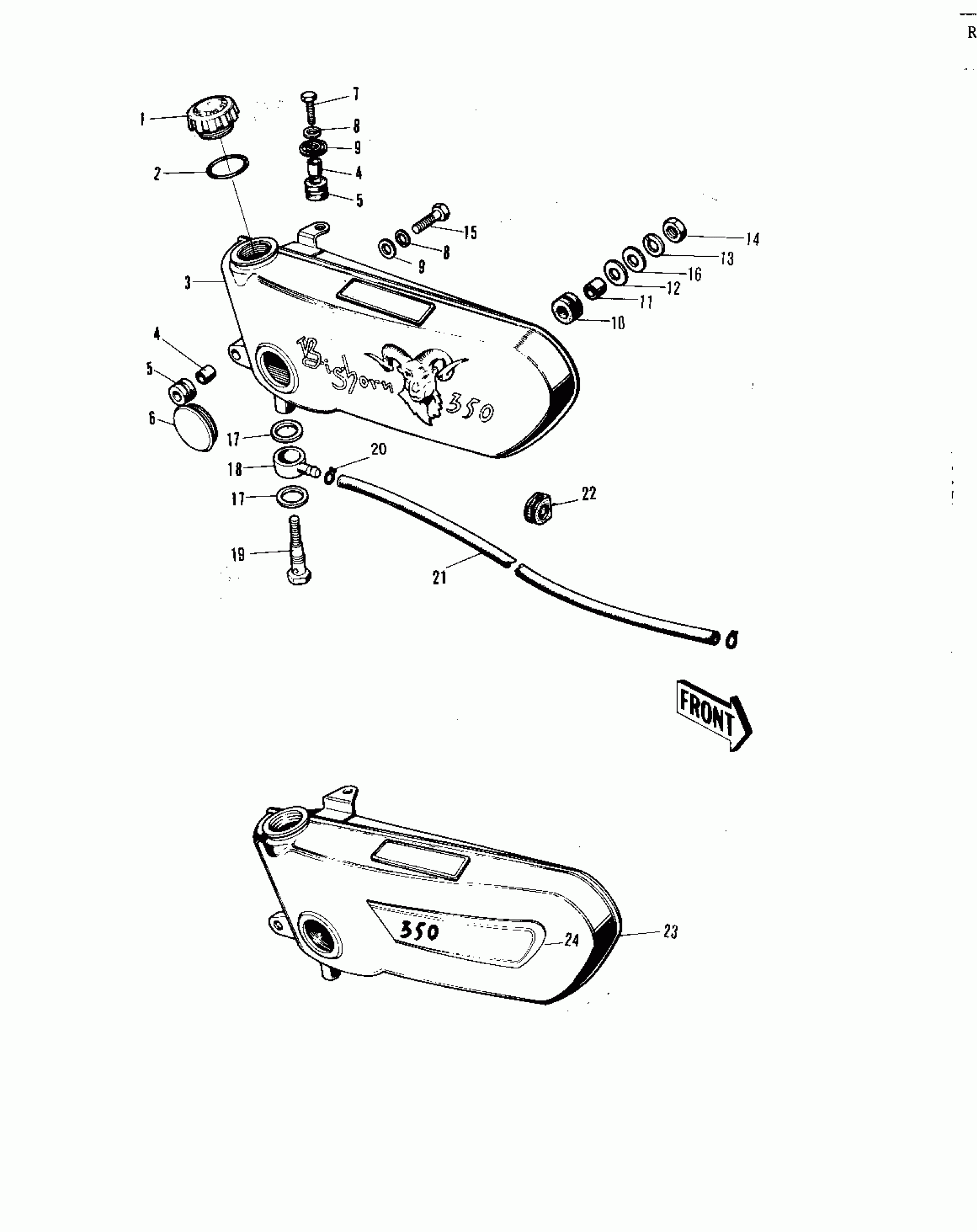

Kawasaki F5-A OIL TANK Diagram

CAP OIL TANK

"0" RING,36MM

COLLAR

DAMPER RUBBER

GAUGE OIL LEVEL

BOLT-UPSET

WASHER SPRING 6MM

WASHER,6.5X20X1.6

DAMPER RUBBER-MUFFLER

COLLAR

WASHER,8X26X2.3

WASHER SPRING 8MM

NUT,8MM

BOLT-UPSET

WASHER PLAIN 8MM

GASKET,10,2X15X1.5T

CONNECTOR BANJO

BOLT OIL TANK BANJO

CLAMP,TUBE

PIPE

GROMMET-OIL PIPE
