Description

Price

1

GUIDE KICK SPRING

13070-001

Unavailable

2

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

3

SPRING KICKSTARTER

92082-002

Unavailable

4

COLLAR

92027-126

$3.08

5

SHIM-KICK SHAFT,0.3T

92022-149

Unavailable

5

SHIM-KICK SHAFT,0.5T

92022-150

Unavailable

5

SHIM-KICK SHAFT,0.7T

92022-151

Unavailable

6

HOLDER-KICK GEAR

13077-003

Unavailable

7

SPRING

92081-093

Unavailable

8

SHAFT-KICKSTARTER

13066-026

Unavailable

9

RATCHET

13078-004

Unavailable

10-1

RING-SNAP,24MM

92033-026

$8.79

11

GEAR-KICKSTARTER

13068-022

Unavailable

12

WASHER,TOOTHED,25.5X32X1

92024-033

$8.19

13-18

PEDAL-KICKSTARTER

13058-027

Unavailable

13

BOSS-KICK PEDAL

13061-008

Unavailable

14

BOLT-HEX HEAD,10MM

92001-085

Unavailable

15

COLLAR

92027-101

Unavailable

17

BALL-STEEL,1/4

600A0800

$0.62

18

SPRING,KICK PEDAL

92081-020

$4.26

19

BOLT-HEX HEAD,10X25

114B1025

$3.85

20

DAMPER,KICK PEDAL

13063-004

$10.94

21

STOPPER-KICKSTARTER

13072-010

Unavailable

22

GUIDE-KICKSTARTER

13206-006

Unavailable

23

WASHER-KICK STOPPER

92031-006

Unavailable

24

BOLT-UPSET,6X16

112G0616

$1.10

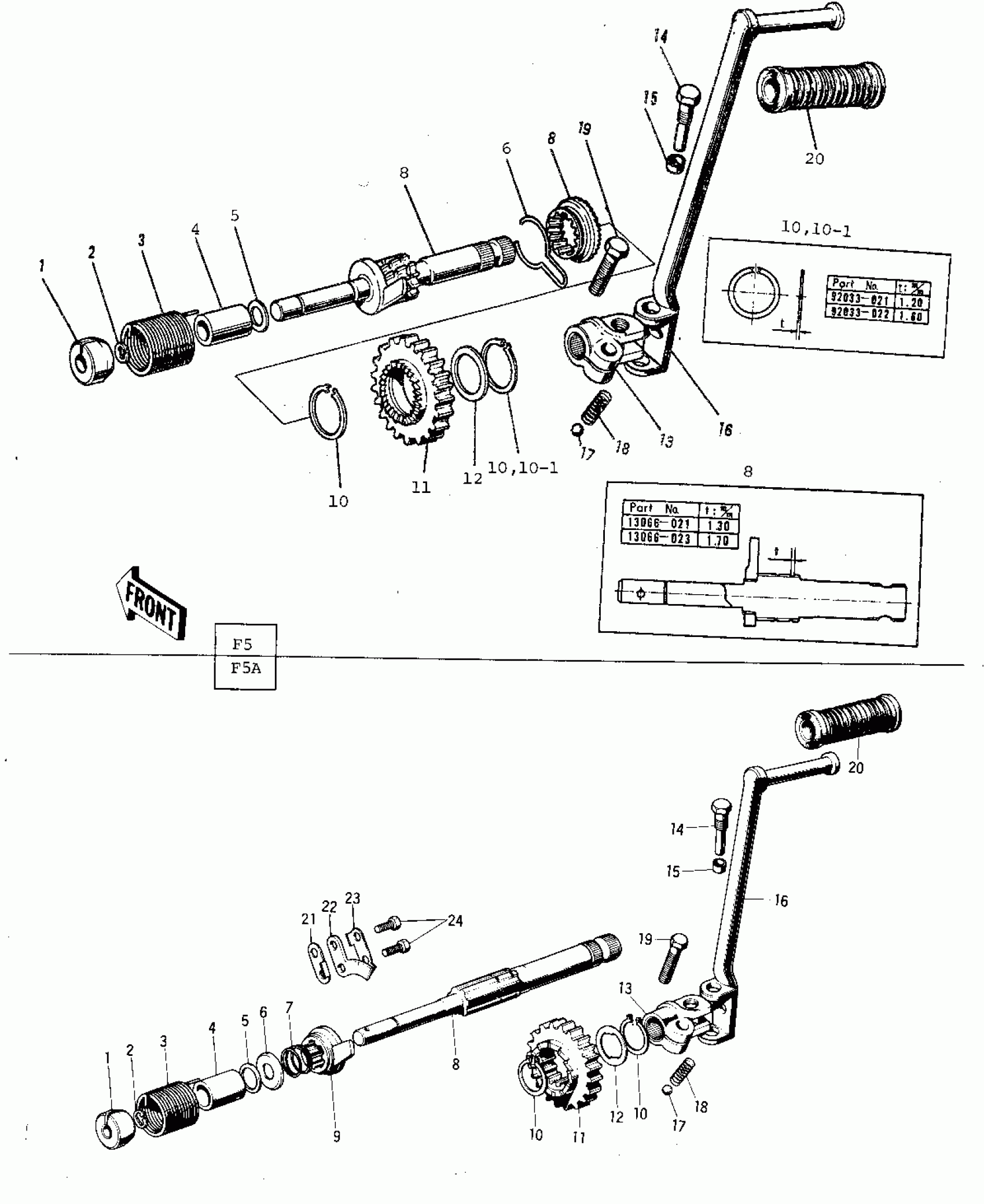

Kawasaki F5-A KICKSTARTER MECHANISM Diagram

GUIDE KICK SPRING

CIRCLIP-TYPE-E,10MM

SPRING KICKSTARTER

COLLAR

SHIM-KICK SHAFT,0.3T

SHIM-KICK SHAFT,0.5T

SHIM-KICK SHAFT,0.7T

HOLDER-KICK GEAR

SPRING

SHAFT-KICKSTARTER

RATCHET

RING-SNAP,24MM

GEAR-KICKSTARTER

WASHER,TOOTHED,25.5X32X1

PEDAL-KICKSTARTER

BOSS-KICK PEDAL

BOLT-HEX HEAD,10MM

COLLAR

BALL-STEEL,1/4

SPRING,KICK PEDAL

BOLT-HEX HEAD,10X25

DAMPER,KICK PEDAL

STOPPER-KICKSTARTER

GUIDE-KICKSTARTER

WASHER-KICK STOPPER

BOLT-UPSET,6X16
