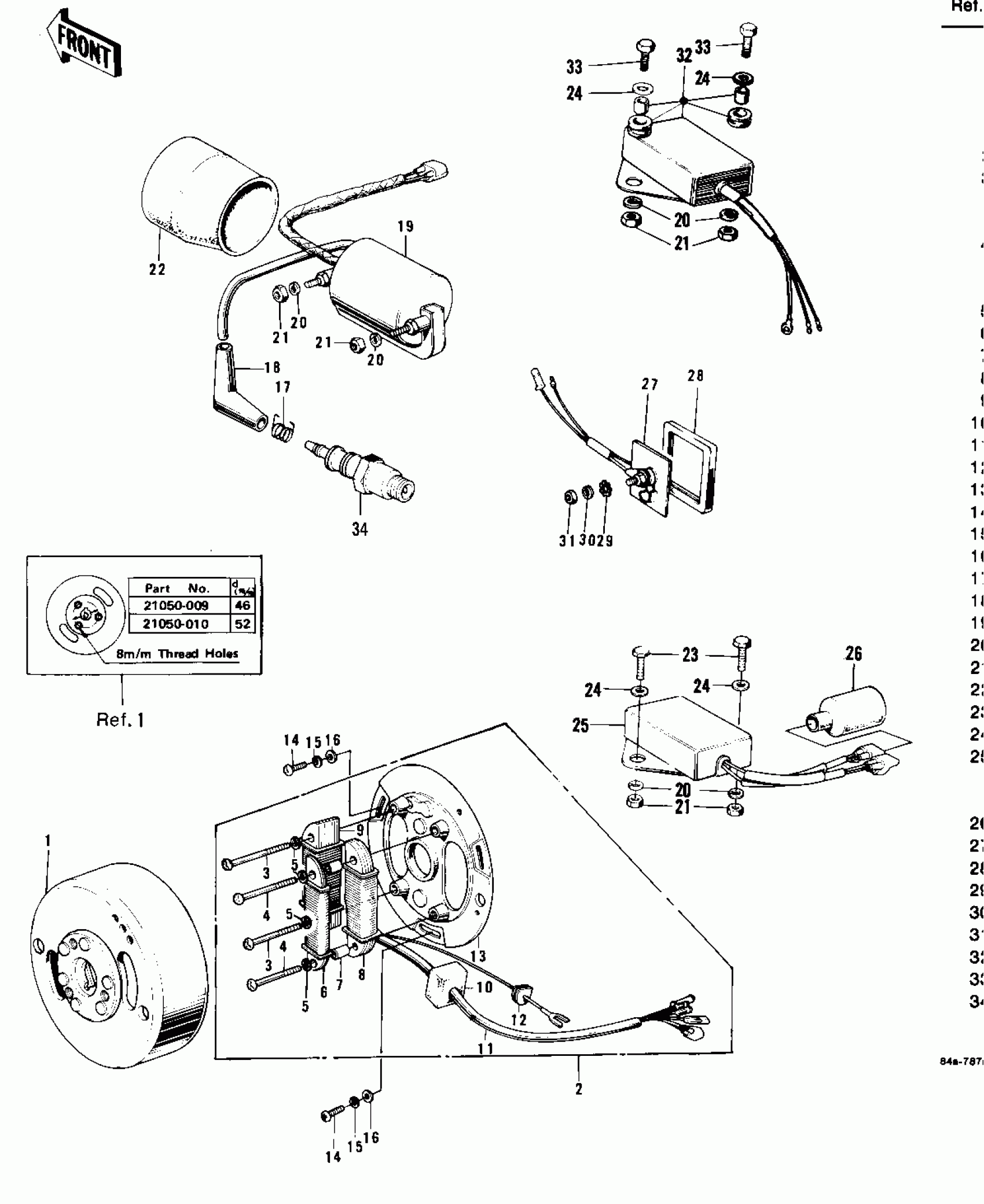

Kawasaki F5-A IGNITION/GENERATOR/REGULATOR Diagram

#

Description
Price

1

FLYWEEL

21050-015

$491.17

1

FLYWEEL

21050-015

$491.17

1

FLYWEEL

21050-015

$491.17

2

STATOR

21003-011

Unavailable

3

SCREW-PAN-CROS

220E0430

$2.95

3

SCREW-PAN-CROS

220E0430

$2.95

4

SCREW-PAN HEAD,4X35

220E0435A

$8.56

4

SCREW-PAN HEAD,4X35

220E0435A

$8.56

5

WASHER SPRING 4MM

461F0400

Unavailable

6

.COIL-PULSER

21157-001

Unavailable

7

COLLAR

21033-002

$3.05

8

.COIL-PRIMARY

21049-011

Unavailable

9

.COIL-LIGHTING

21047-012

Unavailable

10

.GROMMET ENG RUBBER A

92071-014

Unavailable

11

.WIRING HARNESS-MAGNET

21029-020

Unavailable

12

GROMMET WIRING HARN C

21017-005

Unavailable

13

.BASE-MAGNETO

21048-013

Unavailable

14

SCREW-PAN-CROS

220B0520

$0.68

15

WASHER SPRING 5MM

461F0500

$0.69

16

WASHER PLAIN 5MM

410B0500

$0.46

17

TERMINAL,SPARK PLUG CAP

92101-001

$1.69

18

CAP-SPARK PLUG

21130-009

$22.10

19

COIL-IGNITION

21121-039

$270.77

20

WASHER SPRING 6MM

461F0600

$0.69

21

NUT 6MM

311B0600

$0.93

22

RUBBER CAP-COIL

92073-016

$7.40

23

BOLT-UPSET 6X14

112B0614

Unavailable

24

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

25

IGNITION UNIT

21119-013

$597.03

25

IGNITION UNIT

21119-013

$597.03

26

COVER WIRING HARNESS

26009-003

Unavailable

27

RECTIFIER

21061-5001

$29.98

28

MAT-RECTIFIER

32103-020

Unavailable

29

WASHER-PLAIN

92022-163

$0.58

30

WASHER SPRING 5MM

461F0500

$0.69

31

NUT-HEX

311B0500

$0.47

32

REGULATOR-VOLTAGE

21066-010

$177.99

33

BOLT-UPSET

112G0618

$1.01

34

SPK PLG L20VMC

L20VMC

Unavailable

34

SPK PLG B10H15

B10H15

$1.20

34

SPK PLG B10H

B10H

$2.25
