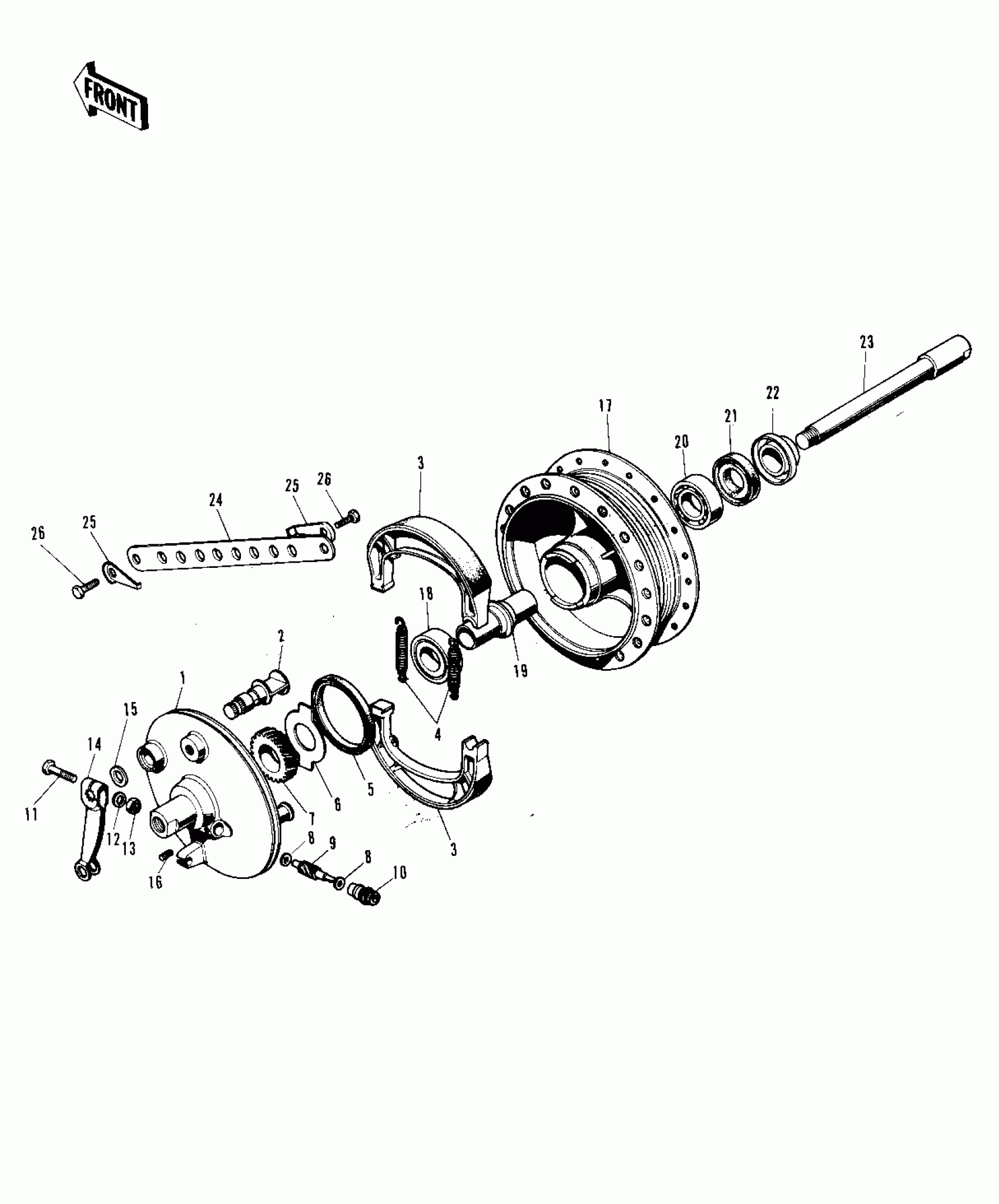

Kawasaki F5-A FRONT HUB/BRAKE Diagram

#

Description
Price

1~16

PANEL-ASY,FR BRK

41035-024

$109.33

1

PANEL-FRONT BRAKE

41043-025

$65.37

2

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

3

SHOE,BRAKE

42019-011

$37.39

4

SPRING,BRAKE SHOE

42020-004

$8.51

5

OIL SEAL F BRK PANEL

92050-010

$20.98

6

RECIEVER GEAR

41064-003

Unavailable

7

GEAR-SPEEDOMETER

41059-011

Unavailable

8

WASHER,5.1X9X0.4

41063-001

$4.69

9

PINION-SPEEDOMETER

41060-010

$16.29

10

BUSH SPEEDMETER CABLE

41062-001

$10.59

11

BOLT HEX HEAD 6X38

110B0638

$3.19

11

BOLT-UPSET,6X40

112G0640

Unavailable

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

13

NUT 6MM

311B0600

$0.93

14

LEVER,REAR BRAKE CAM

42029-037

Unavailable

15

SEAL,BRAKE CAM

41051-001

$4.26

16

PIN,SPRING

41082-001

$3.92

17~21

DRUM-ASSY,FR BRK,BUFF

41034-048-80

$259.52

18

BEARING BALL #6202Z

601B6202Z

Unavailable

18

SPACER FR HUB BEARING

41039-004

$9.58

20

BEARING-BALL,#6202C3

601B6202

$8.64

21

OIL SEAL RR BRK DRUM

92050-008

Unavailable

22

COLLAR FRONT HUB R.H

41069-004

$6.31

23

AXLE-FRONT

41068-029

$26.75

24

TORQUE LINK-FRNT BRK

43007-022

Unavailable

25

WASHER-LOCK

92088-012

Unavailable

26

BOLT-HEA HEAD,8X20

92001-086

Unavailable
