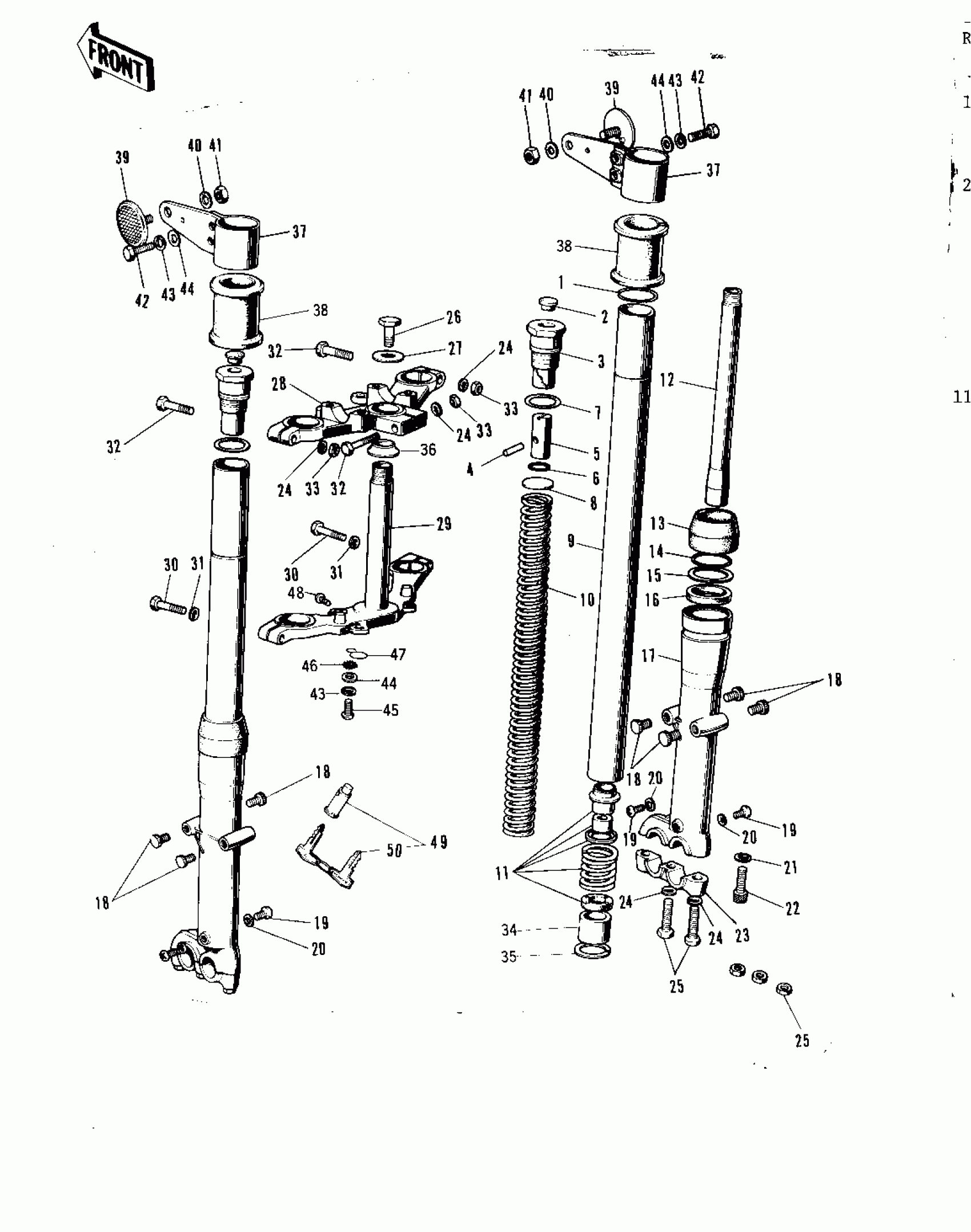

Kawasaki F5-A FRONT FORK Diagram
#
1~35
FRONT FORK ASSY
44001-056
Unavailable
1~35
FRONT FORK ASSY
44001-065
$501.18
1
CIRCLIP
44044-009
Unavailable
2~6
BOLT-FORK TOP
44041-030
$58.95
2
CAP,RUBBER
14039-001
$4.74
7
'O' RING FORK TOP
44046-015
$9.40
8
WASHER-FORK SPRG SEA
44029-015
$0.71
9
TUBE-FORK INNER
44013-022
Unavailable
10
SPRING-FORK
44026-028
$29.30
11, 12
CYLINDER-FORK
44022-003
$110.12
13
DUST SHIELD
44010-017
Unavailable
14
CIRCLIP OIL SEAL FIT
44044-005
Unavailable
15
WASHER OIL SEAL FIT
44043-023
Unavailable
16
OIL SEAL,FORK
44009-020
$60.50
17
TUBE,LH,FORK OUTER
44005-030-80
$234.47
18
CAP
44062-002
Unavailable
19
SCREW PAN HEAD 4X8
220B0408
$0.67
20
GASKET,FORK DRAIN PLUG
44045-002
$5.18
21
GASKET FORK CYL BOLT
44045-030
Unavailable
22
BOLT FORK CYLINDER
44041-027
$5.55
23
HOLDER-FRONT AXLE
44063-001
$23.59
24
WASHER SPRING 8MM
461F0800
$0.40
25
NUT,8MM
311B0800
$0.67
26
BOLT STRNG STEM HEAD
44041-007
$16.04
27
WASHER STRNG STEM HD
44043-016
$10.99
28
HEAD-STEERING STEM
44039-032
Unavailable
29
STEM-STEERING
44037-032
$151.03
30
BOLT-HEX HEAD,12X36
113B1236A
$5.16
31
WASHER-SPRING,12MM
461F1200
$0.96
32
BOLT
92001-1578
$8.19
33
NUT,8MM
311B0800
$0.67
34
PISTON FORK
44018-003
$15.50
35
CIRCLIP FORK PISTON
44044-008
$9.78
36
RACE,STEERING STEM BEARING
92047-010
$10.51
37
BRACKET-HEAD LAMP
23064-001
Unavailable
38
DAMPER RUBBER
92075-059
Unavailable
39
REFLECTOR-REFLEX
28012-004
$7.07
39
REFLECTOR REFLEX
28001-004
Unavailable
40
WASHER SPRING 5MM
461F0500
$0.69
41
NUT-HEX
311B0500
$0.47
42
BOLT-UPSET
112G0618
$1.01
43
WASHER SPRING 6MM
461F0600
$0.69
44
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
45
BOLT-UPSET 6X14
112B0614
Unavailable
46
WASHER LOCK 6MM
464H0600
Unavailable
47
CLAMP,CABLE
92037-046
$4.97
48
RIVET
92099-001
$3.89
49
LOCK ASSY,STEERING
27016-5025
Unavailable
50
KEY SET NO.235
27008-034-35
Unavailable
50
KEY SET NO.236
27008-034-36
$7.21
50
KEY SET NO.237
27008-034-37
$7.22
50
KEY SET NO.238
27008-034-38
Unavailable
50
KEY SET NO.239
27008-034-39
Unavailable
50
KEY SET NO.321
27008-034-21
Unavailable
50
KEY SET NO.322
27008-034-22
$17.01
50
KEY SET NO.323
27008-034-23
$7.04
50
KEY SET NO.324
27008-034-24
$16.85
50
KEY SET NO.140
27008-034-40
Unavailable
50
KEY SET NO.141
27008-034-41
$9.17
50
KEY SET NO.142
27008-034-42
$16.85
50
KEY SET NO.143
27008-034-43
$7.58
