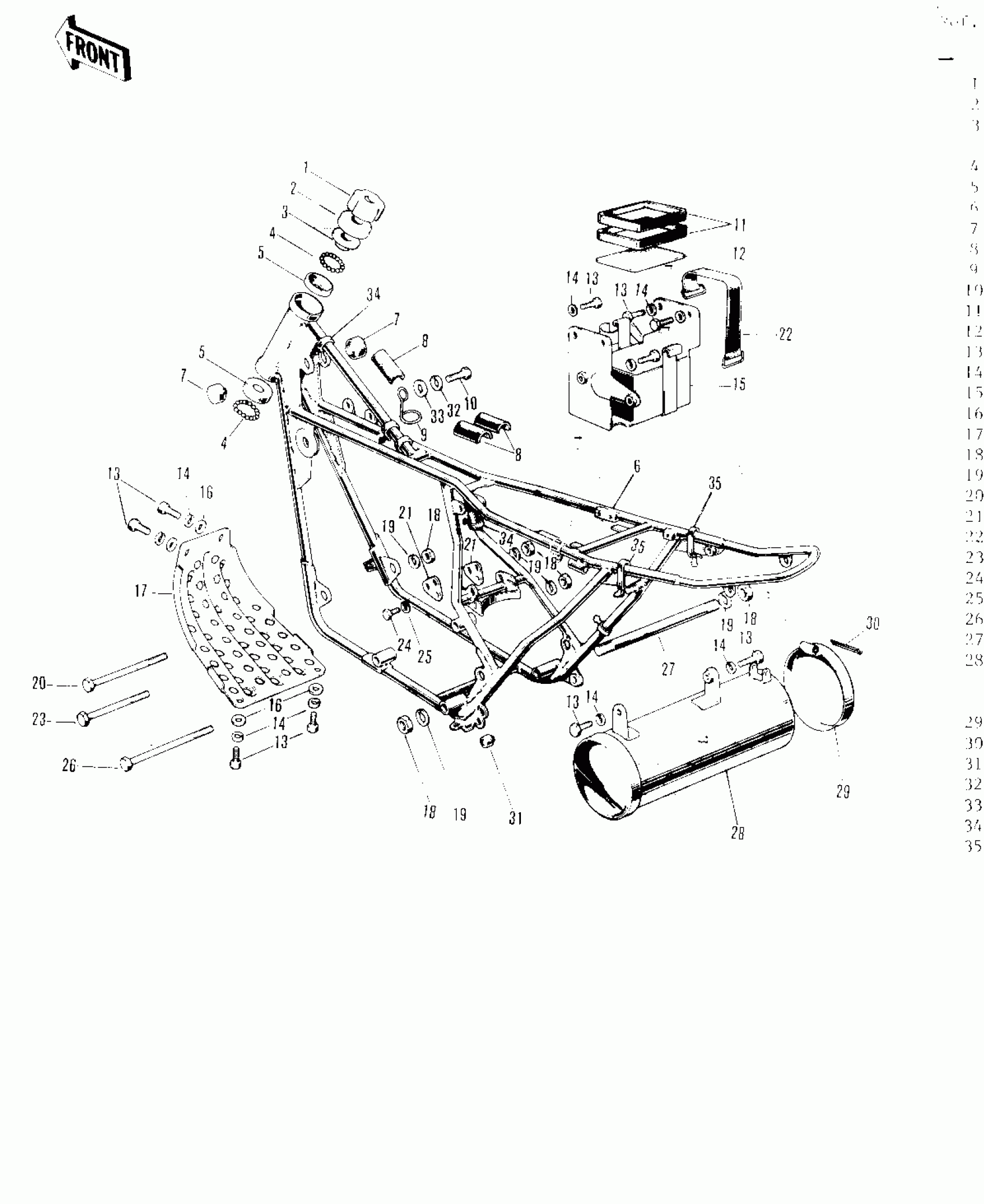

Kawasaki F5-A FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

NUT STEERING STEM LCK

92090-006

$15.04

2

CAP STEERING STEM

46098-005

Unavailable

3

CONE STERNG BERG UPP

92047-003

Unavailable

4

BALL-STEEL,1/4

600A0800

$0.62

5

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

6

FRAME

32002-032

Unavailable

7

DAMPER RUBB FUEL TANK

92075-050

$6.61

8

MAT FUEL TANK

51067-002

Unavailable

9

CLAMP

92037-108

Unavailable

10

BOLT,6X10

112G0610

$0.58

11

MAT-BATTERY

32103-018

Unavailable

12

MAT-BATTERY

32103-017

Unavailable

13

BOLT-UPSET,6X12

112G0612

$1.45

14

WASHER SPRING 6MM

461F0600

$0.69

15

CASE-BATTERY

32097-016

$21.71

16

WASHER,6.5X20X1.6

92022-125

$1.40

17

GUARD-ENGINE

55011-011

Unavailable

18

NUT-HEX-FINE

314B1200

$2.87

19

WASHER-SPRING,12MM

461F1200

$0.96

20

BOLT-HEX HEAD,12X163

113B12163A

$9.07

21

PLATE-ENGINE MOUNT

32030-020

$5.45

22

BAND

92072-012

$7.34

23

BOLT, HEX HEAD,12X151

113B12151A

$7.29

24

BOLT,8X20

115G0820

$5.14

25

WASHER SPRING 8MM

461F0800

$0.40

26

BOLT HEX HEAD 12X254

113B12254A

$12.29

27

STUD

92006-002

Unavailable

28

BOX-TOOL

32098-014

$28.82

29

CAP-TOOL CASE

32099-005

Unavailable

30

PIN COTTER 2.0X30

550D2030

$1.51

31

PLUG RUBBER

92074-005

Unavailable

32

WASHER SPRING 6MM

461F0600

$0.69

33

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

34

BAND RUBBER

92072-013

Unavailable

35

BAND RUBBER

92072-018

Unavailable
