Description

Price

1

BAR ASSY,FOOTREST

34002-051

$51.48

2

BRACKET-FOOTREST BAR

34007-009

Unavailable

4

NUT-LOCK,12MM

92019-009

$7.29

5

BOLT-UPSET

112G0618

$1.01

6

WASHER SPRING 6MM

461F0600

$0.69

7

WASHER,6.5X20X1.6

92022-125

$1.40

8

COLLAR

92027-103

$3.58

9

RUBBER-FOOTREST

92076-023

Unavailable

10

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

11

SPRING FOOTREST PEG

34006-002

Unavailable

12

WASHER FOLDING PEG

92022-049

Unavailable

13

PEDAL-BRAKE,BLACK

43001-036-10

$38.26

14

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

15

NUT-HEX-FINE,10MM

315B1000

$0.58

16

STAND-SIDE

34024-025

$60.02

17

SPRING MAIN STAND

34023-005

$10.92

18

PIN-COTTER,3.0X30

550D3030

$2.51

19

WASHER BRAKE PEDAL

92022-085

$3.92

20

SPRING-BRAKE PEDAL

43005-013

$9.17

21

PIN COTTER 2.0X15

550D2015

$1.04

22

PIN R BRK CABLE JOINT

92043-034

Unavailable

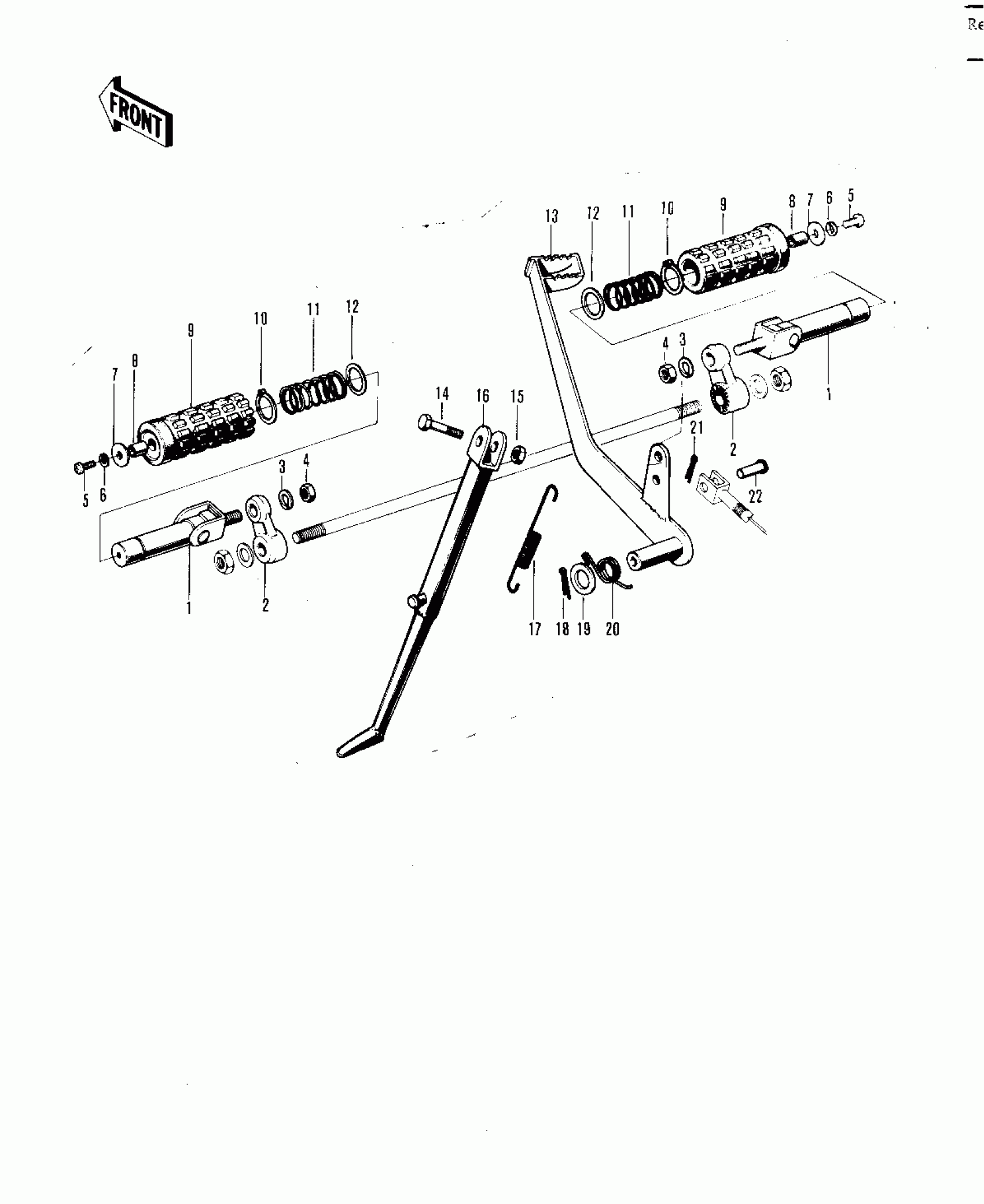

Kawasaki F5-A FOOTRESTS/STAND/BRAKE PEDAL Diagram

BAR ASSY,FOOTREST

BRACKET-FOOTREST BAR

NUT-LOCK,12MM

BOLT-UPSET

WASHER SPRING 6MM

WASHER,6.5X20X1.6

COLLAR

RUBBER-FOOTREST

CIRCLIP-TYPE-C,16MM

SPRING FOOTREST PEG

WASHER FOLDING PEG

PEDAL-BRAKE,BLACK

BOLT,HEX HEAD 10X35

NUT-HEX-FINE,10MM

STAND-SIDE

SPRING MAIN STAND

PIN-COTTER,3.0X30

WASHER BRAKE PEDAL

SPRING-BRAKE PEDAL

PIN COTTER 2.0X15

PIN R BRK CABLE JOINT
