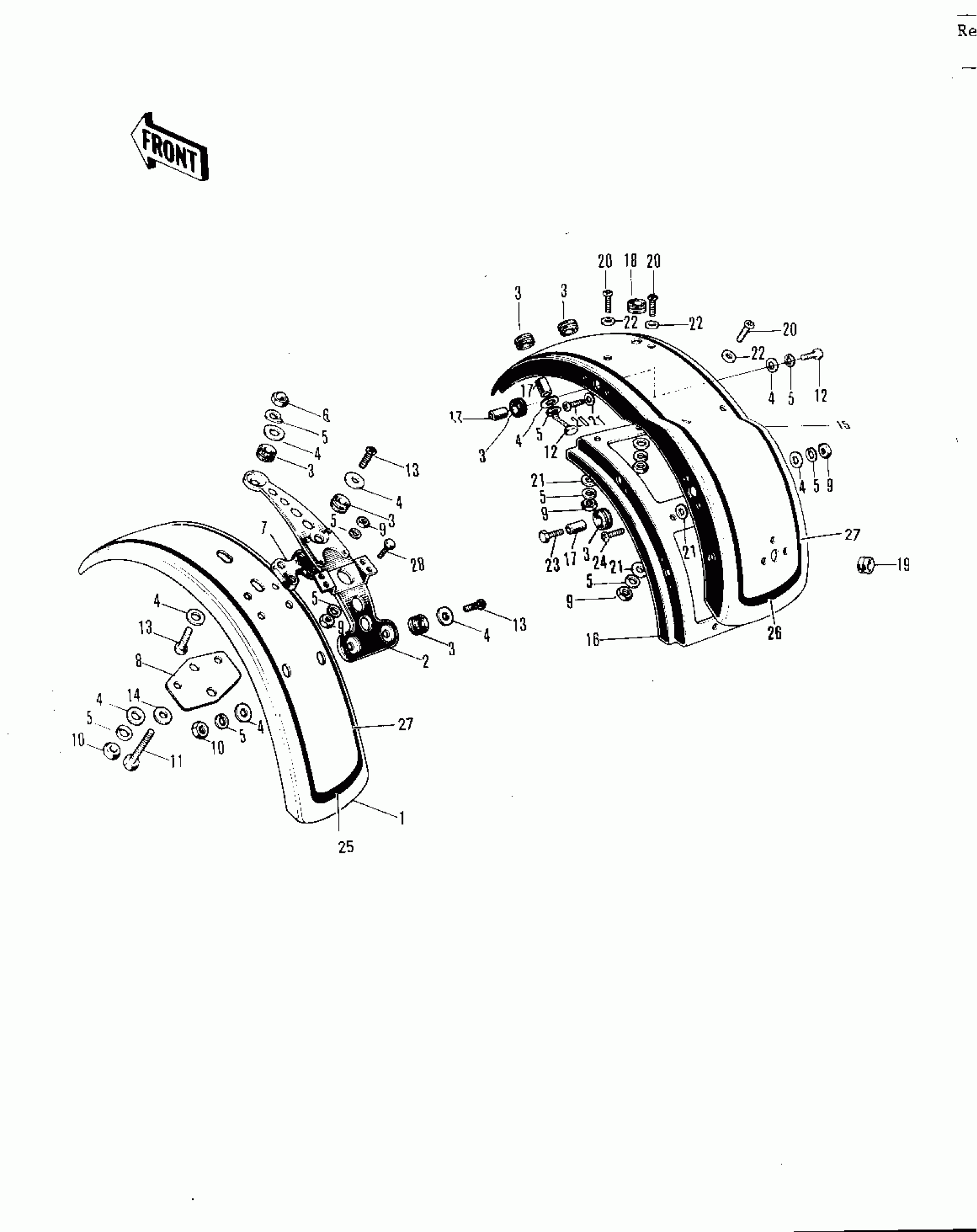

Kawasaki F5-A FENDERS Diagram
#
Description
Price
1
FENDER-FR,GREEN
35004-048-70
Unavailable
2
BRACKET-FRONT FENDER
35012-011
Unavailable
3
DAMPER RUBBER
92075-051
$3.92
4
WASHER,6.5X20X1.6
92022-125
$1.40
5
WASHER SPRING 6MM
461F0600
$0.69
6
NUT,6MM
92015-009
Unavailable
7
DAMPER RUBBER-F.FEND
35007-002
Unavailable
8
PLATE-FRNT FENDER FI
35013-009
Unavailable
9
NUT 6MM
311B0600
$0.93
10
NUT 6MM
312B0600
$0.72
11
BOLT-HEX HEAD,6X42
92003-063
Unavailable
12
BOLT-UPSET
112G0618
$1.01
13
SCREW-PAN HEAD,6X18
220E0618
$3.19
14
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
15
FENDER-RR,L.GREEN
35022-046-70
$110.60
16
BRACE-REAR FENDER
35034-010
Unavailable
17
COLLAR
92027-103
$3.58
18
GROMMET HARNESS 10MM
92071-010
Unavailable
19
GROMMET,10MM
92071-019
$3.89
20
SCREW-PAN-CROS,6X14
220B0614
$1.48
21
WASHER PLAIN 6MM
411B0600
$2.84
22
WASHER PLAIN
92022-024
$3.65
23
BOLT HEX HEAD 6X18
110N0618
Unavailable
24
SCREW PAN HEAD 6X14
220E0614
$3.19
25
EMBLEM-FRONT FENDER
56027-034
$2.98
26
EMBLEM-REAR FENDER
56027-036
$3.85
27
EMBLEM-FENDER
56027-037
$3.85
28
BOLT-UPSET
112G0625
$3.62
