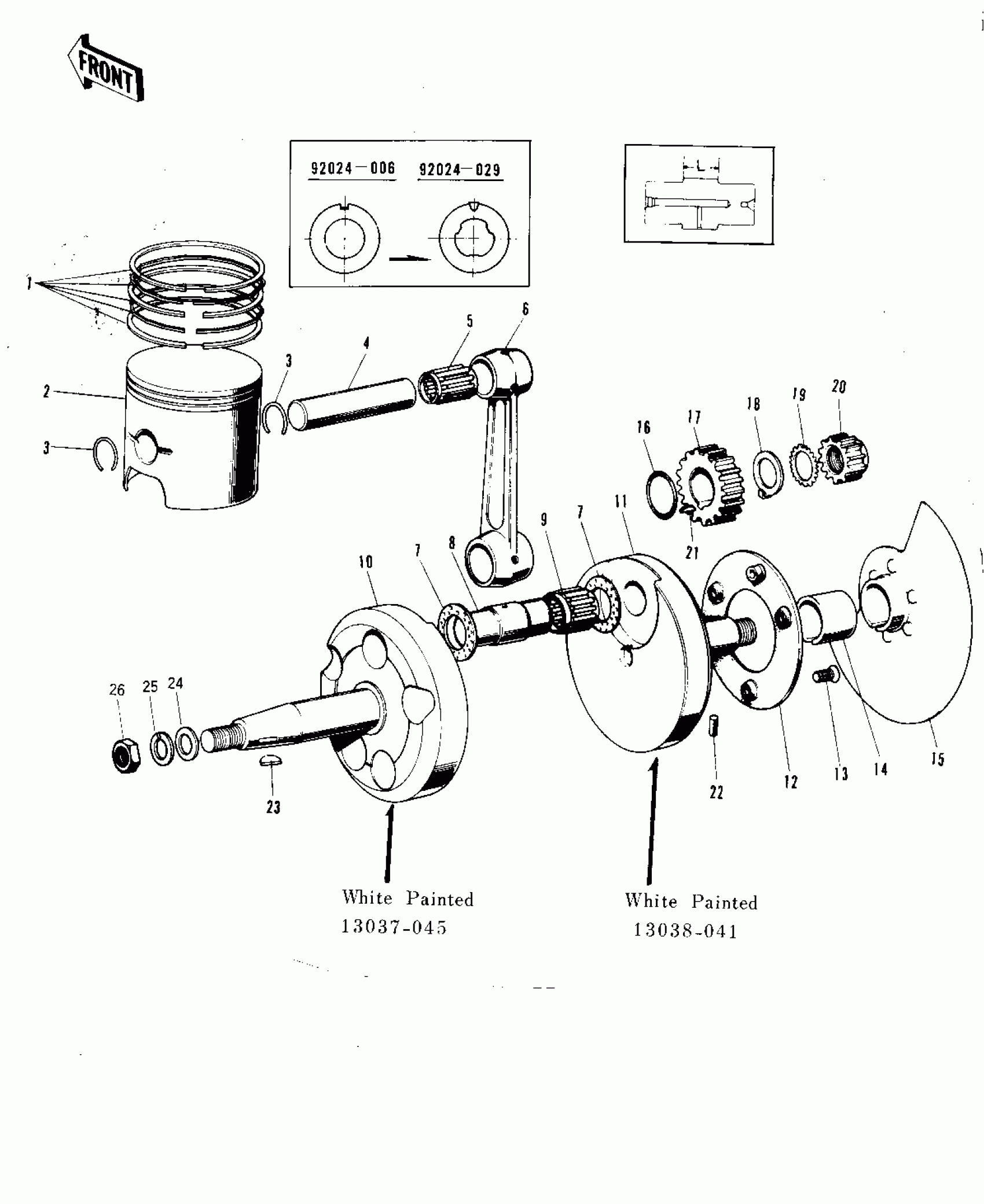

Kawasaki F5-A CRANKSHAFT/PISTON/ROTARY VALVE Diagram

#

Description
Price

1

RING SET,STD

13008-024

Unavailable

2

PISTON,STD

13001-039

Unavailable

3

CIRCLIP-PISTON PIN

92036-015

$4.95

4

PIN-PISTON

13002-016

Unavailable

5

BEARING-SMALL END

13033-1010

$25.15

6~9

CONNECTING ROD SET

13044-017

Unavailable

6~13

CRANK&CONROD ASSY

13036-036

Unavailable

7

WASHER-CONROD SIDE

92026-069

Unavailable

8

CRANK PIN

13035-026

Unavailable

9

NEEDLE BRG-BIG END

13034-032

Unavailable

10

CRANKSHAFT,L.H

13037-045

Unavailable

11

CRANKSHAFT,R.H

13038-045

Unavailable

12

HOLDER-CRANKSHAFT OI

13045-006

Unavailable

13

SCREW OVL CNTSNK 5X10

92012-002

Unavailable

14

CALLAR-CRANKSHAFT

92027-097

$19.04

15

VALVE-ROTARY DISC

12001-020

Unavailable

16

"0" RING,22MM

670B3022

$3.44

17

GEAR,PRIMARY 22T

13097-1040

Unavailable

18

WASHER-LOCK,18MM

92024-029

Unavailable

20

PINION-OIL PUMP

16084-011

$81.16

21

WOODRUFF KEY

510A5100

$2.70

22

ROLLER,4X12

610A0412

$5.52

23

KEY,WOODRUFF

92038-001

$4.96

24

WASHER-PLAIN,14MM

92022-172

Unavailable

25

WASHER SPRING 14MM

461F1400

Unavailable

26

NUT 14MM

92015-043

Unavailable
