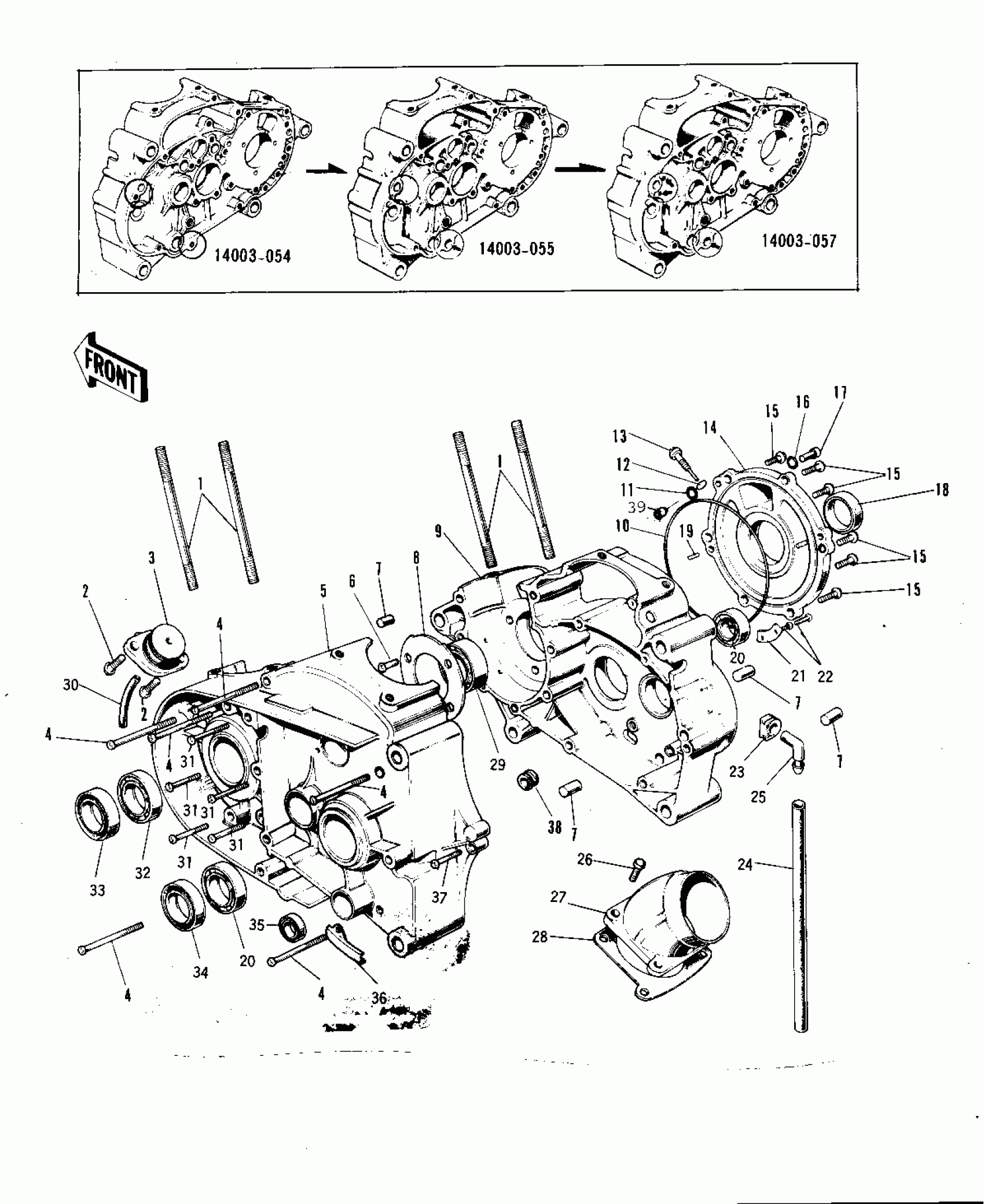

Kawasaki F5-A CRANKCASE Diagram

#

Description
Price

1

STUD 10X75

172G1075

Unavailable

2

SCREW-PAN-CROS,6X16

220B0616

$2.84

3

PUMP-FUEL DRAIN

16137-002

Unavailable

4

SCREW-PAN-CROS,6X75

220B0675

$4.66

5

CRANKCASE SET

14001-065

Unavailable

6

SCREW-CSK-CROS,6X16

221B0616

$0.59

7

PIN,DOWEL,10X14

92043-1037

$0.74

8

HOLDER-CRANK BEARING

14014-019

Unavailable

9

CRANKCASE,R.H

14003-054

Unavailable

9

CRANKCASE SET

14001-065

Unavailable

10

"0" RING,134.5MM

92055-039

Unavailable

11

O RING,5MM

670B1505

$3.26

12

"0" RING,5MM

92055-011

Unavailable

13

NOZZLE OIL INJECTION

92062-004

Unavailable

14

COVER-ROTARY DISC VLV

14019-044

Unavailable

15

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

16

"0" RING,CHECK VALVE

92055-037

Unavailable

17

VALVE-CHECK

16128-006

$13.78

18

OIL SEAL TB35488

653B354808

$17.18

19

ROLLER,5X12

610A0512

$4.78

20

BEARING-BALL,#6205C3

601B6205

$19.57

21

HOLDER-MISSION BERNG

14014-020

Unavailable

22

SCREW-PAN-CROS,6X14

220B0614

$1.48

23

GROMMET,BREATHER

92071-042

$4.26

24

PIPE-BREATHER

92059-061

Unavailable

25

BREATHER ASSY

14069-1001

$24.64

26

BOLT-UPSET,6X20

112G0620

$2.12

26

BOLT-UPSET,6X20

112G0620

Unavailable

27

INLET PIPE

11015-021

Unavailable

28

GASKET-INLET PIPE

11017-005

Unavailable

29

BEARING-BALL

92045-016

$50.30

30

PIPE FUEL OVERFLOW

92059-031

Unavailable

31

SCREW PAN HEAD 6X50

220B0650

$1.25

32

BEARING-BALL,#6305C3

601B6305

$25.78

33

SEAL-OIL

92049-1250

$18.74

34

SEAL-OIL,TB3040

92050-033

$21.74

35

SEAL-OIL,SB12205

92049-004

$9.58

36

COVER-WIRING HARNESS

14076-001

Unavailable

37

SCREW PAN HEAD 6X30

220B0630

$3.41

39

NOZZLE,OIL METERING

92062-008

Unavailable
