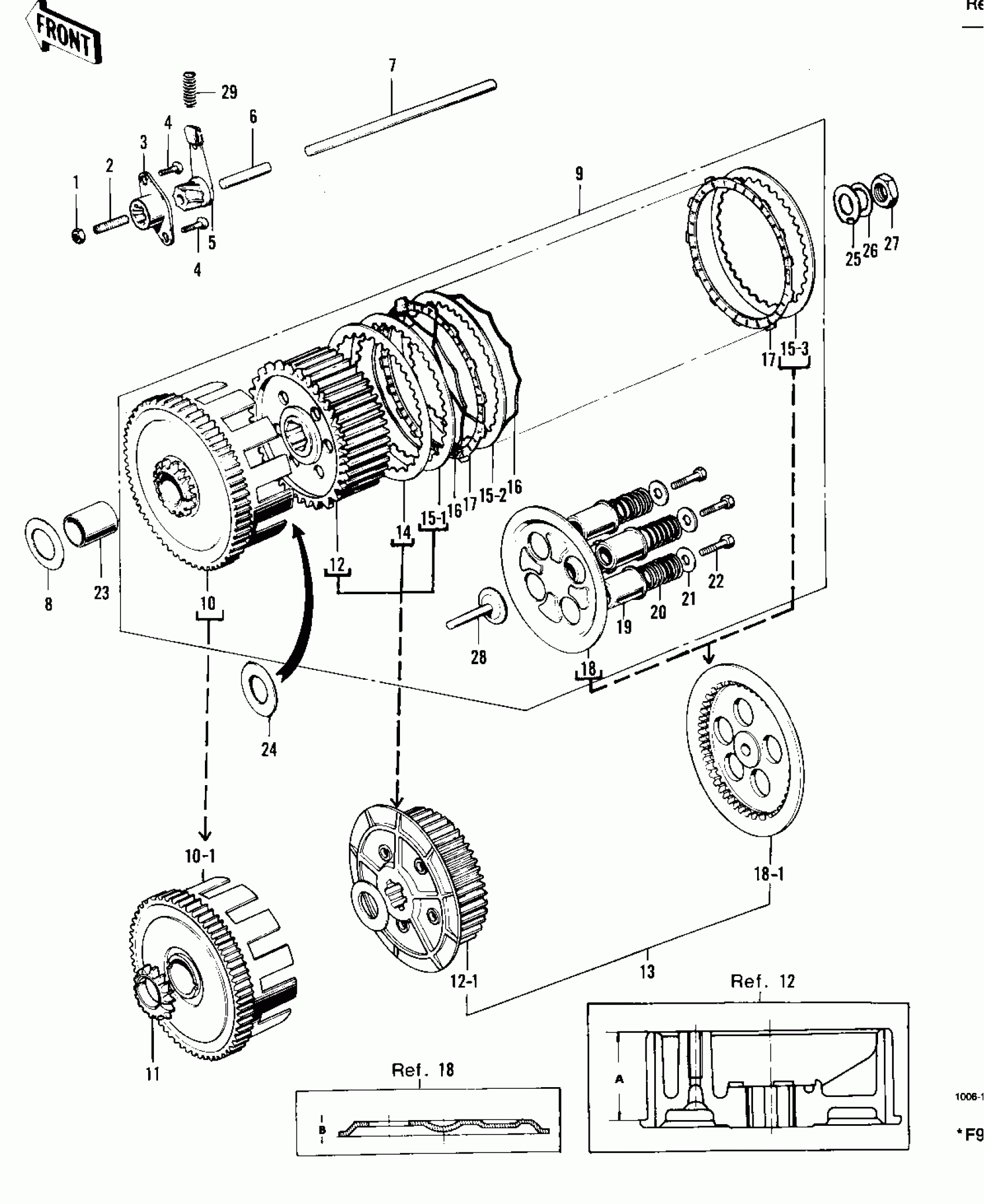

Kawasaki F5-A CLUTCH Diagram
#
1
NUT 6MM
311B0600
$0.93
2
SCREW SLOTTED
291Z0622
$5.93
2
SCREW-CLUTCH ADJUST
92014-011
Unavailable
3
RELEASE OUTER-CLUTCH
13118-005
Unavailable
4
SCREW-PAN-CROS,6X14
220B0614
$1.48
5
RELEASE INNER-CLUTCH
13102-010
Unavailable
6
PUSH ROD-CLUTCH,SHOR
13116-013
Unavailable
7
PUSH ROD-CLUTCH,LONG
13116-012
Unavailable
8
WASHER,25.5X38X1
92022-145
$7.31
9
CLUTCH ASSY
13081-029
Unavailable
9
CLUTCH ASSY
13081-035
Unavailable
9
CLUTCH-ASSY
13081-042
Unavailable
10
UNAVAILABLE IN PRICE BOOK
13095-021
Unavailable
10-1
.HOUSING-CLUTCH
13095-027
Unavailable
11
PINION-KICKSTARTER
13075-007
Unavailable
12
HUB CLUTCH
13087-014
Unavailable
12
HUB-CLUTCH
13087-030
Unavailable
12-1
HUB-CLUTCH
13087-030
Unavailable
12-1
HUB-CLUTCH
13087-030
Unavailable
13
.HUB SET-CLUTCH
13084-005
Unavailable
14
PLATE CLUTCH OUTER
13090-011
Unavailable
15-1
PLATE-CLUTCH,T=1.6
13089-013
$13.16
15-2
PLATE-CLUTCH,T=1.6
13089-013
$13.16
15-3
PLATE-CLUTCH,T=1.6
13089-013
$13.16
16
RING-CLUTCH STEEL
13229-003
Unavailable
16
RING-CLUTCH STEEL
13229-003
Unavailable
17
.PLATE-CLUTCH FRICTIO
13088-021
Unavailable
18
PLATE-CLUTCH SPRING
13187-005
Unavailable
18
PLATE-CLUTCH SPRING
13187-005
Unavailable
18-1
PLATE-CLUTCH SPRING
13187-005
Unavailable
19
GUIDE CLUTCH SPRING
13092-005
Unavailable
20
SPRING CLUTCH
92081-042
$7.76
21
HOLDER CL SPG6.5X20X2
13091-009
Unavailable
22
BOLT-UPSET
112G0618
$1.01
23
BUSHING 25X30X34L
92028-081
Unavailable
24
SPACER,25.5X47X2.5
92026-022
$9.91
25
WASHER PL 19X36.5X0.
92022-074
Unavailable
26
WASHER LOCK 18MM
463G1800
$3.33
27
NUT,18MM
92015-019
$7.22
28
PUSHER-CLTCH SPRG PLT
13116-011
Unavailable
29
SPRING,CLUTCH RELEASE
92081-069
$7.51
