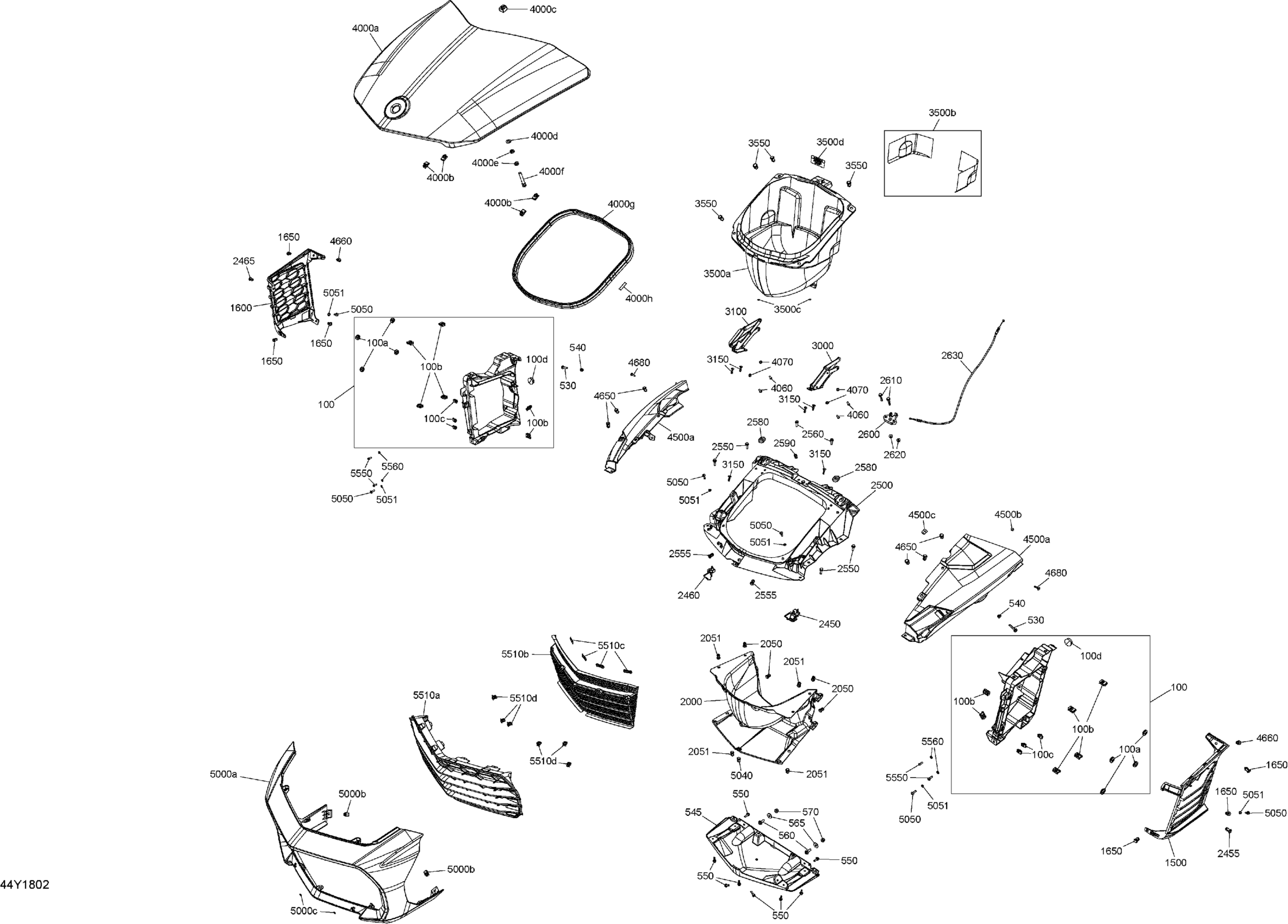

Can-Am On-Road F3 STD SE6, 2018 09- Storage Compartments Diagram

#

Description
Price

100

LH Breakaway Lateral Tower Leg | Includes 100 to 100f

708200437

$78.99

100

RH Breakaway Lateral Tower Leg | Includes 500 to 500f

708200438

$78.99

100a

Grommet

709000582

$4.69

100b

Panel Nut M6 X 1.0

250100208

$1.46

100c

Panel Nut M5 X 0.8

250100176

$4.09

100d

Black, Nylon Cap

414916600

$4.69

530

Hex. Flange Screw M6 X 30

207663054

$4.44

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

545

Front Skid Plate

708200405

$29.99

550

Hex. Flange Screw M6 X 20

207662044

$2.00

560

Hex. Flange Screw M8 X 25

207682534

$2.11

565

Flat Washer M8

234082430

$2.11

570

Hex. Flange Elastic Nut M8

233281434

$2.11

1500

LH Front Lateral Vent

708200406

$33.99

1600

RH Side Vent

708200859

$34.99

1650

Tuflok Plastic Rivet

293150230

$1.47

2000

Front Air Duct Module

708200362

$88.99

2050

Tuflok Plastic Rivet

293150230

$1.47

2051

Tuflok Plastic Rivet

293150230

$1.47

2450

LH Front Union Link

708200493

$9.69

2455

Tuflok Plastic Rivet

293150230

$1.47

2460

RH Front Union Link

708200494

$9.69

2465

Tuflok Plastic Rivet

293150230

$1.47

2500

Sub-Frame Type Structure | Includes 2500 to 2500b

708200446

$78.99

2500a

Panel Nut M5 X 0.8

250100176

$4.09

2550

Hex. Flange Screw M6 X 20

207662034

$2.11

2555

Tuflok Plastic Rivet

293150230

$1.47

2560

Hexagonal Head Screw

210262050

$2.11

2580

Oval Washer

705000321

$5.61

2590

Spring

705003911

$3.99

2600

Latch

705007379

$28.99

2610

Hex. Flange Screw M6 X 35

207663544

$0.90

2620

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2630

Hood Cable

517305742

$42.99

2640

Tie-Rap Clip

710002896

$4.39

3000

LH Hood Hinge | Includes 3000 to 3000h

708200673

$91.99

3000a

Flat Washer M5

234051670

$2.11

3100

RH Hood Hinge | Includes 3100 to 3100h

708200674

$91.99

3100a

Flat Washer M5

234051670

$2.11

3150

Torx Truss Screw M5 X 20

250000715

$2.11

3500a

Front Storage Bin

708200403

$69.99

3500b

Heat Shield Sheet

708200490

Unavailable

3500c

Stopper

705006633

$8.49

3550

Tuflok Plastic Rivet

293150230

$1.47

4000a

Steel Black Hood

708200379

$539.99

4000b

Panel Nut M5 X 0.8

250100176

$4.09

4000c

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

4000c1

Hex. Elastic Nut M8 Brass

232581200

$2.22

4000d

Flat Washer 8 mm

234081410

$0.83

4000e

Hex. Jam Nut M8

232180600

$0.67

4000f

Lug

705002223

$25.99

4000g

Neoprene Seal 3000Mm Long

219704371

$51.99

4000h

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

4060

Torx Truss Screw M5 X 16, T25

250000578

$2.11

4070

Flat Washer M5

234051670

$2.11

4500a

Steel Black, LH Vent Panel

708200450

$214.99

4500b

Polyurethane Stopper

705006634

$4.76

4500c

Rubber Pad

293830143

$18.49

4500a

Steel Black, RH Vent Panel

708200451

$214.99

4650

Tuflok Plastic Rivet

293150230

$1.47

4660

Tuflok Plastic Rivet

293150230

$1.47

4680

Torx Truss Screw M5 X 20

250000715

$2.11

5000a

Steel Black Front Fascia

708200400

$379.99

5000b

Panel Nut M5 X 0.8

250100176

$4.09

5040

Tuflok Plastic Rivet

293150230

$1.47

5050

Torx Truss Screw M5 X 20

250000715

$2.11

5051

Flat Washer M5

234051670

$2.11

5510a

Front Radiator Grille

708200443

$129.99

5510b

Front Deflector Grille

708200393

$75.99

5510c

Flat Clip

705004838

$7.73

5510d

Edge Clip

517302785

$0.88

5550

Torx Truss Screw M5 X 16, T25

250000578

$2.11

5560

Flat Washer M5

234051670

$2.11
