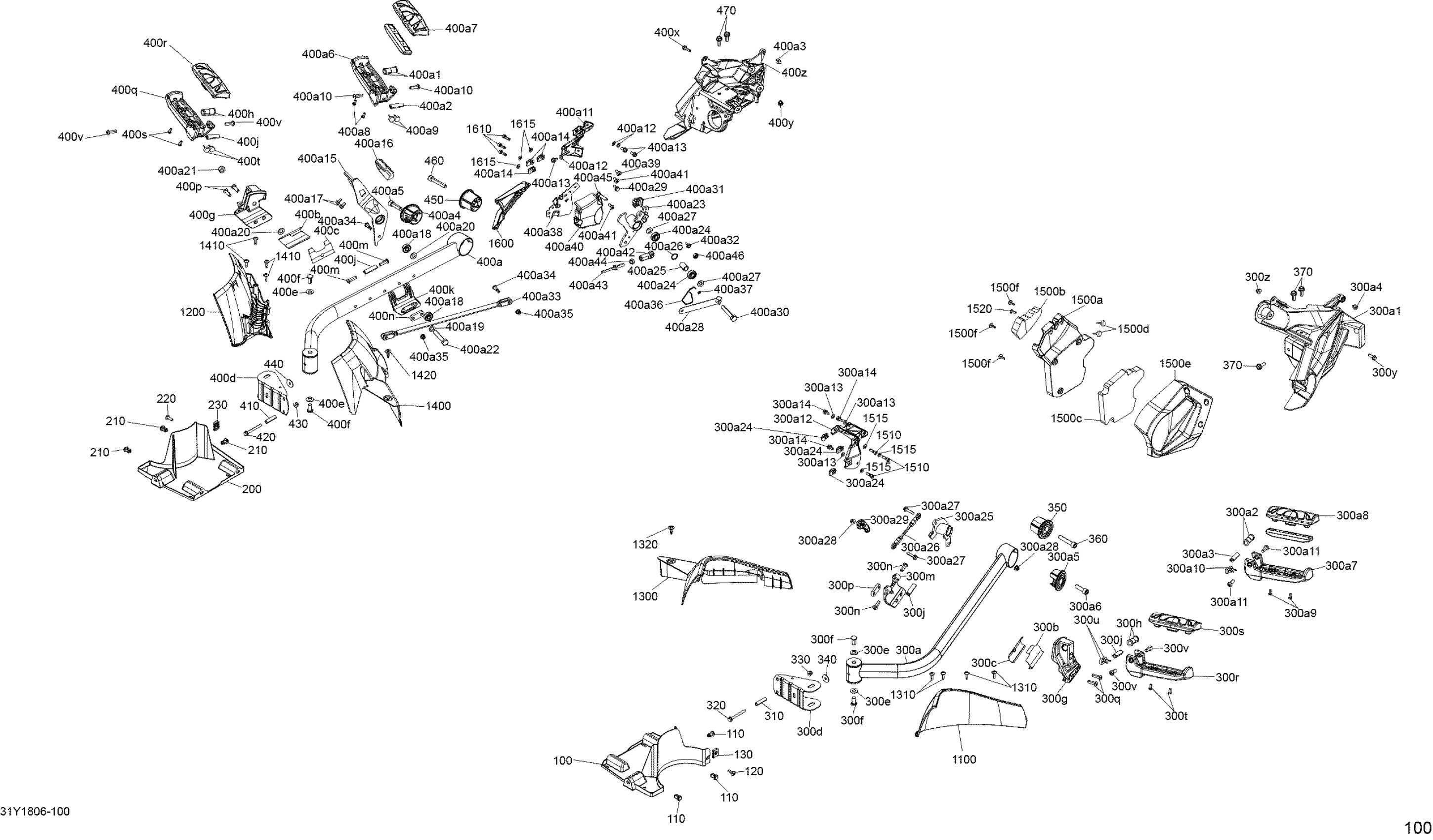

Can-Am F3 S SM6 & SE6, 2018 09- Body And Accessories - Footrest Diagram

LH Front Skid Plate

705007785

$28.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Panel Nut M6 X 1.0

250100208

$1.46

RH Front Skid Plate

705007786

$28.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Panel Nut M6 X 1.0

250100208

$1.46

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$119.99

LH YELLOW SUPPORT - Call your local BRP dealership | Package S Magnesium

705010834

Unavailable

LH SUPPORT LIQUID GOLD - Call your local BRP dealership | Option 10TH

705012450

Unavailable

LH Frame Protector Outside

705009449

$9.21

LH inner Protective Film

705014174

$6.50

Tube Support | Includes 150 to 150a

705008950

$22.99

Washer

506152582

$4.55

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

LH Slider Outside | Includes 160 to 160b

705007798

$84.99

Spacer Bushing

705008166

$5.59

Pivot Pin | Includes 220 to 220

705013628

$17.82

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

Socket Head Screw M8 X 25

250000830

$1.90

Back Plate

705008553

$24.99

Socket Head Screw M8 X 25

250000830

$1.90

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$50.99

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

Allen Plastite Screw #12

250000099

$2.19

Rubber Stopper

708000759

$4.19

Socket Head Screw M8 X 25

250000830

$1.90

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex. Flange Elastic Nut M6

233261466

$2.00

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$389.99

SUPPORT LH LIQUID GOLD - Call your local BRP dealership | Option 10TH

705012451

Unavailable

Spacer Bushing

705008166

$5.59

Pivot Pin | Includes 220 to 220

705013628

$17.82

Rubber Bumper

293830005

$8.09

Pivot Cap | Includes 540 to 540b

705010203

$27.99

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$50.99

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

Allen Plastite Screw #12

250000099

$2.19

Rubber Stopper

708000759

$4.19

Socket Head Screw M8 X 25

250000830

$1.90

LH Fairing Support

705008961

$16.49

Black, Flat Washer 6 mm

234061670

$1.25

Hex. Flange Screw M6 X 12

210261250

$1.90

Gear Shift Lever | SM6

707001699

$45.99

Adjustment Rod

707000455

$29.99

End Clutch Pedal

707000456

$8.89

Socket Head Screw M6 X 22, Scotch Grip

514054626

$4.44

Bearing

705600458

$19.99

Washer

503192496

$0.77

Washer

503183800

$3.28

Elastic Locking Nut M10

233601466

$2.11

Hex. Cap Screw M10 X 60

207006056

$7.51

Panel Nut M6 X 1.0

250100198

$2.11

Shifter Lever Rocker | SM6

707001573

$62.99

Linkage Rod | SM6

504152819

$53.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Shifter Arm

707000926

$42.99

Bearing

705600458

$19.99

Bushing

705600541

$15.36

O-Ring

293300191

$1.46

Washer

503183800

$3.28

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

Shifter Linkage Kit (295.9 mm) | SM6

219400627

Unavailable

Flange Screw M6 X 26

250000714

$3.91

Hex. Flange Elastic Nut M6

233261466

$2.00

Quick-Attach Bracket | SM6

707001753

$11.49

Push Nut

250100178

$0.63

Socket Head Screw M6 X 22, Scotch Grip

514054626

$4.44

Spacer

705008219

$13.49

Hex. Flange Screw M6 X 60

250000778

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

Washer M6

250200029

$2.50

Pivot Cap

705010202

$22.99

Socket Head Screw

205505560

$6.77

Hex Screw Washer Head M8 X 20

207582054

$3.17

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$119.99

RH Yellow Footrest Support | Package S Magnesium

705010853

$119.99

RH SUPPORT LIQUID GOLD - Call your local BRP dealership | Option 10TH

705012452

Unavailable

RH Outer Protective Film

705014177

$6.50

RH Inner Protective Film

705014175

$6.50

Tube Support | Includes 150 to 150a

705008950

$22.99

Washer

506152582

$4.55

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

RH Slider Outside | Includes 170 to 170b

705008158

$84.99

Spacer Bushing

705008166

$5.59

Pivot Pin | Includes 220 to 220

705013628

$17.82

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

Socket Head Screw M8 X 25

250000830

$1.90

Back Plate

705008553

$24.99

Socket Head Screw M8 X 25

250000830

$1.90

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$50.99

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

Allen Plastite Screw #12

250000099

$2.19

Rubber Stopper

708000759

$4.19

Socket Head Screw M8 X 25

250000830

$1.90

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex. Flange Elastic Nut M6

233261466

$2.00

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$409.99

SUPPORT RH LIQUID GOLD - Call your local BRP dealership | Option 10TH

705012453

Unavailable

Spacer Bushing

705008166

$5.59

Pivot Pin | Includes 220 to 220

705013628

$17.82

Rubber Bumper

293830005

$8.09

Pivot Cap | Includes 540 to 540b

705010203

$27.99

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$50.99

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

Allen Plastite Screw #12

250000099

$2.19

Rubber Stopper

708000759

$4.19

Socket Head Screw M8 X 25

250000830

$1.90

RH Fairing Support

705008962

$16.49

Black, Flat Washer 6 mm

234061670

$1.25

Hex. Flange Screw M6 X 12

210261250

$1.90

Panel Nut M6 X 1.0

250100198

$2.11

Brake Pedal | Includes 800 to 800a3

705601419

$104.99

Rubber Pad

705004933

$20.99

Hex. Flange Screw M6 X 12

210261250

$1.90

Bearing

705600458

$19.99

Washer

503192496

$0.77

Washer

503183800

$3.28

Elastic Locking Nut M10

233601466

$2.11

Hex. Cap Screw M10 X 60

207006056

$7.51

Master Cylinder Rocker | Includes 900 to 900d

705601308

$49.99

Bearing

705600458

$19.99

Bushing

705600541

$15.36

O-Ring

293300191

$1.46

Washer

503183800

$3.28

Locking Tab | Includes 940 to 940b

705601229

$25.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

Brake Master Cylinder Stopper

705601375

$12.10

Screw M4 X 16

250000725

$3.49

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$20.99

Flange Screw M6 X 26

250000714

$3.91

Hex. Flange Elastic Nut M6

233261466

$2.00

Quick-Attach Bracket

705601350

$13.16

Push Nut

250100178

$0.63

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.16

Torx Head Screw M6 X 16

250000717

$2.11

Switch Deflector

705601343

$13.99

Torx Head Screw M6 X 16

250000717

$2.11

ROD END - Call your local BRP dealership

705601506

$14.99

Piston Rod

705600468

$23.49

Hex. Nut M8

232081414

$0.72

Hexagonal Head Cap Screw M8 X 35

207283544

$2.85

Hex. Elastic Stop Nut M8

232581414

$0.56

Spacer

705008219

$13.49

Hex. Flange Screw M6 X 60

250000778

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

Washer M6

250200029

$2.50

Pivot Cap

705010202

$22.99

Socket Head Screw

205505560

$6.77

Hex Screw Washer Head M8 X 20

207582054

$3.17

LH Deflector

705007794

$43.99

RH Deflector

705007795

$43.99

LH Shell

705009027

$43.99

Torx Truss M5 X 20

250000586

$4.44

Tuflock Phillips Plastic Screw

414745900

$1.69

RH Shell

705009029

$43.99

Torx Truss M5 X 20

250000586

$4.44

Tuflock Phillips Plastic Screw

414745900

$1.69

LH Acoustic Fairing

705009144

$45.99

Acoustic Foam

705009344

$8.49

Acoustic Foam

705009162

$14.49

Rubber Stopper

708000759

$4.19

LH Engine Fairing

705007780

$45.99

Screw M4 X 16

250000725

$3.49

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

Stainless Flat Washer M6

234061600

$0.33

Dart, Fastex

293730024

$1.39

RH Engine Fairing

705007781

$45.99

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

Stainless Flat Washer M6

234061600

$0.33

Hex Screw Washer Head M8 X 20

207582054

$3.17
