Partiron

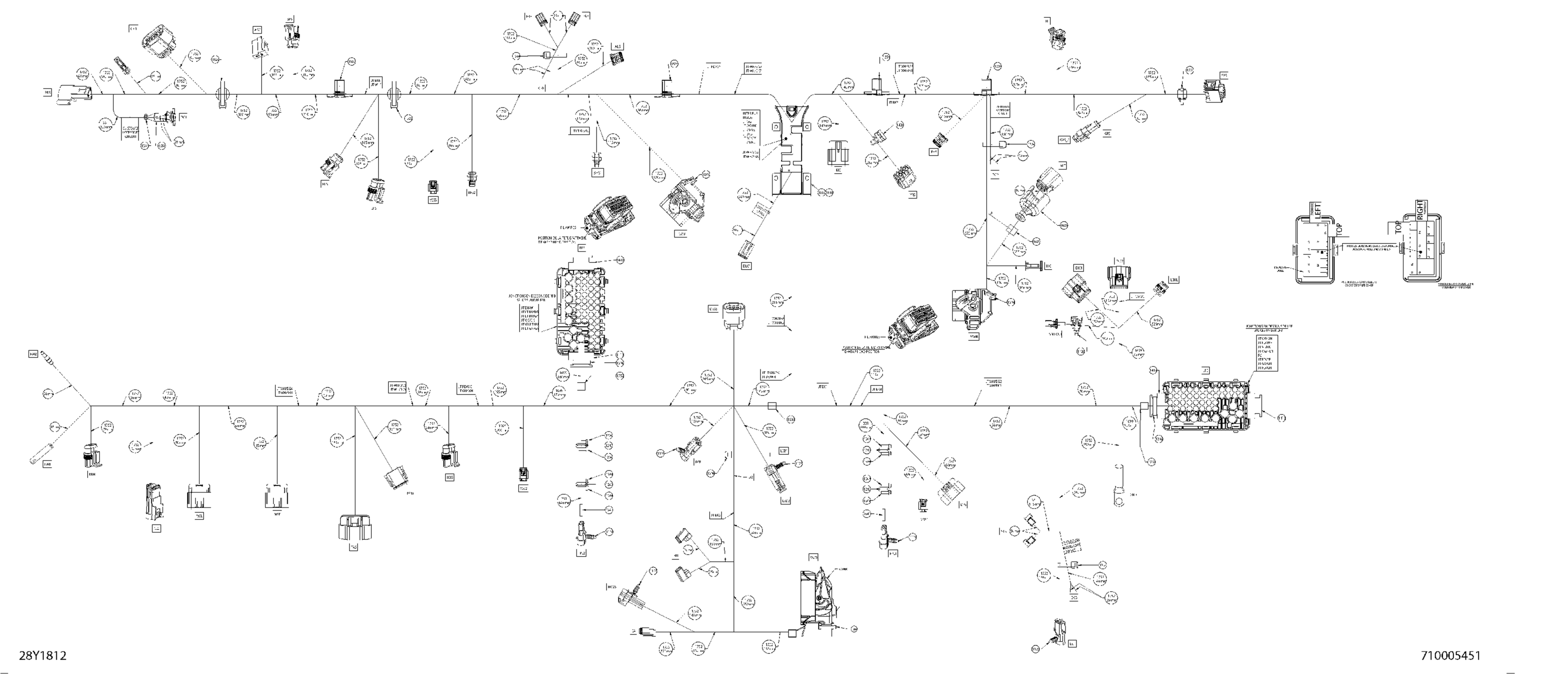

Can-Am F3 LTD SE6, 2018 Main Harness - 710005451 - T & LTD Diagram

#

Description
Price

1

Harness-frame

710005451

$1,109.99

ALS

Female Housing

515177441

$17.59

ALS

Female Terminal

278002857

$0.92

ALT

Housing

710003545

$23.49

ALT

Cap

710000080

$8.29

ALT

Seal Wire

710003546

$6.88

ALT

Female Terminal

710000335

$2.29

ASC

Female Terminal Housing

515176550

$7.86

ASC

Female Terminal

515175282

$7.86

BA

Female Terminal Housing, 2 Circuits

515175670

$8.39

BA

Female Lock, 2 Circuits

515175675

$4.55

BA

Female Terminal

278000632

$2.09

BFS1

Female Housing, 2 Circuits

515177192

$9.12

BFS1

Seal

710001233

$3.19

BFS1

Female Terminal

710001164

$8.89

BFS2

Female Housing, 2 Circuits

515177192

$9.12

BFS2

Seal

710001233

$3.19

BFS2

Female Terminal

710001164

$8.89

BLS

Female Housing, 2 Circuits

409209500

$15.27

BLS

Wire Seal

278001013

$3.28

BLS

Female Terminal

278001014

$3.28

CIC2

Housing

710001226

$13.49

CIC2

Lock

710001222

$2.09

CIC2

Cap

710001225

$9.19

CIC2

Seal

710001233

$3.19

CIC2

Seal Wire

710001332

$3.28

CIC2

Terminal

710001229

$3.19

CIC2

Terminal

710001228

$3.28

D2

Diode

409012700

$11.12

DC1

Female Terminal

409010700

$5.39

DESS

Housing Connector

515177287

$7.62

DESS

Lock

710001222

$2.09

DESS

Seal

710001233

$3.19

DESS

Terminal

710001229

$3.19

DIC1

Sealing Cap

278002860

$1.79

DLC1

Female Housing 6 Circuits

710002706

$20.49

DLC1

Lock

710002705

$4.44

DLC1

Plug

710005437

$3.17

DLC1

Female Terminal

710005438

$4.29

DLC1

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

PLUG - Call your local BRP dealership

710001884

$2.85

DPS

Seal

710003153

$0.99

DPS

Terminal

710001873

$2.09

DPS

Terminal

710001869

$2.85

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

F1L

Little Fuse, 15 Ampere

710000745

$8.49

F1R

Little Fuse, 15 Ampere

710000745

$8.49

F2L

Little Fuse, 10 Amperes

710000744

$8.79

F2R

Little Fuse, 10 Amperes

710000744

$8.79

F3L

Little Fuse, 10 Amperes

710000744

$8.79

F3R

Little Fuse, 15 Ampere

710000745

$8.49

F4L

Little Fuse, 20 Amperes

710000746

$8.49

F5L

Little Fuse, 5 Amperes

710000742

$8.79

F5R

Little Fuse, 25 Ampere

278002389

$4.55

F6L

Little Fuse, 15 Ampere

710000745

$8.49

F6R

Little Fuse, 10 Amperes

710000744

$8.79

F7L

Little Fuse, 10 Amperes

710000744

$8.79

F7R

Little Fuse, 10 Amperes

710000744

$8.79

F8L

Little Fuse, 15 Ampere

710000745

$8.49

FHS

Female Housing

515177441

$17.59

FHS

Female Terminal

278002857

$0.92

FLH

Female Housing, 3 Circuits

515175495

$16.18

FLH

Female Terminal

515175231

$4.39

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FP

Seal

710000643

$4.39

FP

Seal

278001482

$3.19

FP

Female Terminal

278001481

$3.49

FPL1

Male Terminal Housing, 2 Circuits

409209400

$16.86

FPL1

Wire Seal

515176621

$7.49

FPL1

Male Terminal

515176164

$7.16

FPL2

Male Terminal Housing, 2 Circuits

409209400

$16.86

FPL2

Wire Seal

515176621

$7.49

FPL2

Male Terminal

515176164

$7.16

FRH

Female Housing, 3 Circuits

515175495

$16.18

FRH

Female Terminal

515175231

$4.39

GPS

Male Terminal Housing, 2 Circuits

409209400

$16.86

GPS

Wire Seal

278001013

$3.28

GPS

Male Terminal | Europe Models

409012900

$3.28

GPS_C

Female Housing, 2 Circuits

409209500

$15.27

GPS_C

Plug

409013700

$4.55

HBS

Female Housing, 3 Circuits

409209600

$35.99

HBS

Plug

409013700

$4.55

HBS

Wire Seal

515176621

$7.49

HBS

Female Terminal

710001340

$5.89

HIC

Female Housing 6 Circuits

710002706

$20.49

HIC

Lock

710002705

$4.44

HIC

Plug

710005437

$3.17

HIC

Female Terminal

710005438

$4.29

HIC

Female Terminal

710005439

$4.44

HN

Female Terminal

710002398

$2.19

HN

Female Terminal

710002399

$2.40

HO2S1

Housing

710002466

$3.19

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

J1L

Fuse, 40 AMP

710001047

$11.80

J1R

Fuse 30 amp.

710001200

$7.20

J2L

Fuse, 25 AMP

710001046

$3.91

J2R

Fuse, 40 AMP

710001047

$11.80

J3L

Fuse, 40 AMP

710001047

$11.80

J3R

Fuse, 20 AMP

710001078

$1.90

J4L

Fuse, 40 AMP

710001047

$11.80

J4R

Fuse 30 amp.

710001200

$7.20

J5R

Fuse, 20 AMP

710001078

$1.90

KIC

Housing

710001231

$13.99

KIC

Seal Wire

710001332

$3.28

KIC

Terminal

710001223

$3.19

LBHL

Female Housing, 3 Circuits

409209600

$35.99

LBHL

Wire Seal

278001013

$3.28

LBHL

Female Terminal

278001014

$3.28

LCF

Female Housing, 2 Circuits

278000217

$9.59

LCF

Wire Seal

710000504

$4.39

LCF

Male Terminal

409004300

$5.61

LED 1

Seal Wire

710001153

$2.21

LED 1

Terminal

710001223

$3.19

LED 2

Female Housing, 2 Circuits

515177192

$9.12

LFB

Fusebox Ass'y

710005623

$49.49

LFB

Seal Plug

278002880

$7.86

LFB

Cap

710001631

$1.09

LFB

Wire Seal

278001065

$7.69

LFB

Wire Seal

278000218

$4.39

LFB

Seal Joint

710003134

$1.39

LFB

Terminal Joint

710001905

$2.09

LFB

Seal Joint

710003133

$0.90

LFB

Seal Joint

710003132

$0.90

LFB

Female Terminal

710000918

$7.69

LFB

Female Terminal

278002578

$1.04

LFB

Terminal

710001630

$2.09

LFB

Terminal

710001906

$2.54

LFB

M Terminal

710003135

$2.79

LFB

Terminal

710002438

$1.39

LFB

F Terminal

710003125

$3.39

LFB_C

Cover

710007491

$17.99

LFB_C

Logo Fuse LFB

710005945

$15.49

LFB_C

Little Fuse, 5 Amperes

710000742

$8.79

LFB_C

Little Fuse, 10 Amperes

710000744

$8.79

LFB_C

Little Fuse, 15 Ampere

710000745

$8.49

LFB_C

Little Fuse, 20 Amperes

710000746

$8.49

LFB_C

Little Fuse, 25 Ampere

278002389

$4.55

LPS

Female Housing, 3 Circuits

409209600

$35.99

LPS

Plug

409013700

$4.55

LPS

Wire Seal

515176621

$7.49

LPS

Female Terminal

710001340

$5.89

MSL

Housing

710001944

$15.35

MSL

Cap

710001225

$9.19

MSL

Seal Wire

710001332

$3.28

MSL

Seal

710001233

$3.19

MSL

Terminal

710001223

$3.19

MSL

Terminal

710001224

$3.19

MSR

Housing, Packard

710001929

$11.12

MSR

Cap

710001225

$9.19

MSR

Seal

710001233

$3.19

MSR

Terminal

710001224

$3.19

PBM

Female Terminal Housing, 12 Circuits

278002377

$49.99

PBM

Female Lock, 12 Circuits

409015700

$4.55

PBM

Sealing Cap

293000052

$3.19

PBM

Female Terminal

278000632

$2.09

PBM

Female Terminal

278001665

$4.55

PM1

Insulated Sheath

278001007

$3.58

PM1

Female Terminal

710000421

$6.11

PM2

Insulated Sheath

278001008

$3.28

PM2

Female Terminal

278002261

$7.55

PRS

Male Housing

278002378

$13.99

PRS

Male Lock, 3 Circuits

409207600

$3.19

PRS

Male Terminal

710001348

$12.99

R6

Resistance

515175241

$17.99

RBHL

Female Housing, 3 Circuits

409209600

$35.99

RBHL

Wire Seal

278001013

$3.28

RBHL

Female Terminal

278001014

$3.28

RCF

Female Housing, 2 Circuits

278000217

$9.59

RCF

Wire Seal

710000504

$4.39

RCF

Male Terminal

409004300

$5.61

RFB

Fusebox Ass'y

710005623

$49.49

RFB

Seal Plug

278002880

$7.86

RFB

Cap

710001631

$1.09

RFB

Wire Seal

278001065

$7.69

RFB

Wire Seal

278000218

$4.39

RFB

Terminal Joint

710001905

$2.09

RFB

Seal Joint

710003133

$0.90

RFB

Seal Joint

710003132

$0.90

RFB

Female Terminal

710000890

$4.55

RFB

Female Terminal

710000918

$7.69

RFB

Female Terminal

278002578

$1.04

RFB

Terminal

710001906

$2.54

RFB

M Terminal

710003135

$2.79

RFB

Terminal

710002438

$1.39

RFB

F Terminal

710003125

$3.39

RFB_C

Cover

710007491

$17.99

RFB_C

LOGO FUSE RFB - Call your local BRP dealership

710005624

Unavailable

RFB_C

Little Fuse, 10 Amperes

710000744

$8.79

RFB_C

Little Fuse, 15 Ampere

710000745

$8.49

RFB_C

Little Fuse, 20 Amperes

710000746

$8.49

RFB_C

Little Fuse, 5 Amperes

710000742

$8.79

RFB_C

Little Fuse, 25 Ampere

278002389

$4.55

RY1L

Relay

715900824

$21.99

RY1R

Relay

715900824

$21.99

RY2L

Relay

715900824

$21.99

RY2R

Relay

715900824

$21.99

RY3L

50 Amps Relay

710003143

$13.76

RY3R

50 Amps Relay

710003143

$13.76

RY4L

Relay

715900824

$21.99

RY4R

Relay

715900824

$21.99

RY5L

Relay, 30 AMP

515176774

$21.99

RY5R

Relay, 30 AMP

515176774

$21.99

RY6L

Relay, 30 AMP

515176774

$21.99

RY6R

Relay, 30 AMP

515176774

$21.99

SPS

Housing

710003731

$8.59

SPS

Plug

710001938

$2.46

SPS

Wire Seal

710001118

$1.16

SPS

Female Terminal

710003862

$2.43

SRV

Female Housing, 2 Circuits

409209500

$15.27

SRV

Wire Seal

515176621

$7.49

STS

Female Terminal

710002398

$2.19

STS

Female Terminal

710002399

$2.40

TAS

Housing

710001232

$14.29

TAS

Lock

710001222

$2.09

TAS

Seal

710001233

$3.19

TAS

Terminal

710001229

$3.19

TCMB

Cover, 48 positions

710001591

$12.18

TCMB

Housing

710003669

$35.99

TCMB

Plug

710001592

$2.21

TCMB

Plug

710001593

$2.21

TCMB

Female Terminal

710001589

$2.21

TCMB

Female Terminal

710001727

$3.19

VCM

RH Connector Cover

710002772

$4.55

VCM

Module Protector VCM

710002381

$20.99

VCM

Housing

710002768

$17.59

VCM

Plug

710001258

$3.29

VCM

Wire Seal

278000999

$3.19

VCM

Wire Seal

710001159

$6.35

VCM

Seal Wire

710001153

$2.21

VCM

Female Terminal

710000837

$5.39

VCM

Terminal

710002773

$2.09

VCM

Terminal

710002775

$0.74

VSS1

Housing

710003729

$22.49

VSS1

Female Terminal

710004243

$0.98

VSS2

Housing

710003729

$22.49

VSS2

Female Terminal

710004243

$0.98

VSS3

Housing

710003729

$22.49

VSS3

Female Terminal

710004243

$0.98

YRS

Housing

710003730

$14.83

YRS

Female Terminal

710004243

$0.98
