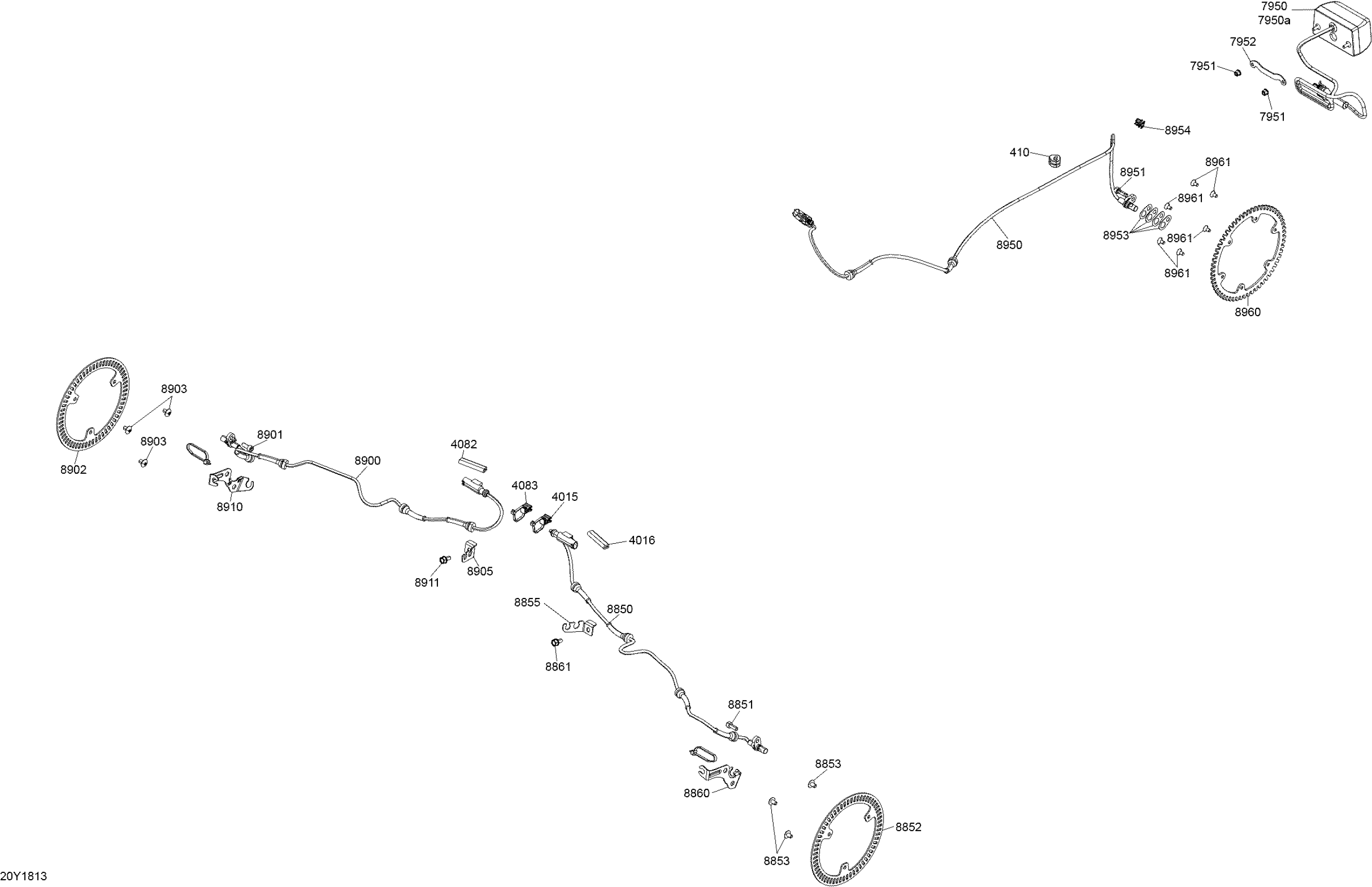

Can-Am F3 LTD SE6, 2018 Electrical Suspension F3 Diagram

#

Description
Price

410

Grommet

293720084

$6.00

4015

Tie-Rap Clip

710002896

$4.60

4016

Trim 1000Mm Long

219704354

$14.74

4082

Trim 1000Mm Long

219704354

$14.74

4083

Tie-Rap Clip

710002896

$4.60

7950

License Plate Light

710003348

$71.00

7950

License Plate Light

710003349

$71.00

7950a

Bulb 12V 10W | Not Shown

415129261

$2.00

7951

Elastic Flange Nut M5

233251494

$1.74

7952

Plate

710004815

$18.00

8850

Kit Speed Sensor

219800456

$87.00

8851

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8852

Front Sensor Wheel

705601512

$44.00

8853

Torx-truss M/s M6 X 10

250000995

$3.61

8855

LH Support Wire

710004860

$2.00

8860

Speed Sensor Holder

710003156

$11.00

8861

Hex. Flange Screw M6 X 12

210261250

$1.56

8900

Kit Speed Sensor

219800456

$87.00

8901

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8902

Front Sensor Wheel

705601512

$44.00

8903

Torx-truss M/s M6 X 10

250000995

$3.61

8905

RH Support Wire

710004861

$2.00

8910

Speed Sensor Holder

710003157

$11.00

8911

Hex. Flange Screw M6 X 12

210261250

$1.56

8950

Speed Sensor

706202361

$165.00

8951

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

8953

Shim

710002023

$3.00

8954

Cable Support

710004279

$4.00

8960

Sensor Wheel

705601372

$47.00

8961

Socket Head Screw M5 X 10

205851036

$7.00
