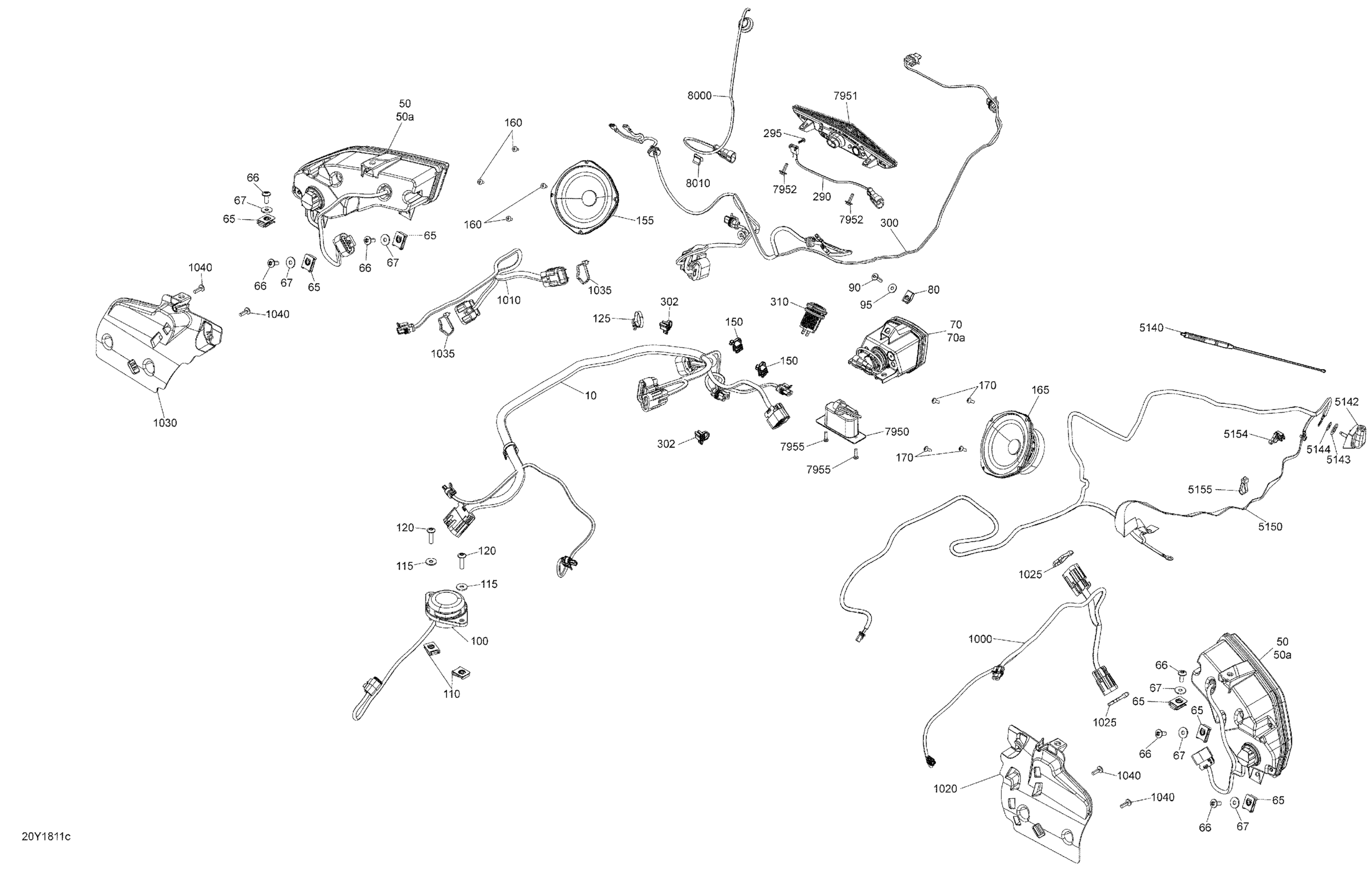

Can-Am F3 LTD SE6, 2018 Electrical Cargo F3 - LTD Diagram

#

Description
Price

10

Harness-cargo

710005460

$76.99

25

Switch

710004598

$132.49

26

Nut

710004108

$6.14

50

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

50

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

50a

Bulb 12V/10W, Amber

219800039

Unavailable

65

Panel Nut M6 X 1.0

250100208

$1.07

66

Torx Head Screw M6 X 16

250000717

$1.74

67

Flat washer M6

250200164

$0.83

70

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

70a

Bulb 12V 10W

219800322

$8.68

80

Panel Nut M5 X 0.8

250100176

$4.09

90

Torx Truss Screw M5 X 20

250000715

$2.00

95

Stainless Steel Flat Washer M5

234052670

$0.83

100

Passenger Detection Switch

710008103

$70.12

110

Panel Nut M6 X 1.0

250100208

$1.07

115

Stainless Steel Flat Washer

234062670

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

125

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

150

Clip Tie-Rap

710002899

$7.84

155

4.5" Speaker

710005433

$35.99

160

Torx Truss Screw K40 X 12

250000577

$2.00

165

4.5" Speaker

710005433

$35.99

170

Torx Truss Screw K40 X 12

250000577

$2.00

290

Open Detection

710005315

$18.54

295

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.54

300

Cargo Upper Harness | Package LTD

710005357

$38.99

302

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$5.94

310

USB Outlet

219400510

$40.92

1000

LH Cargo Harness

710004608

$27.99

1010

RH Cargo Harness

710004609

$27.99

1020

LH Connector Support

710004643

$12.99

1025

Tie-Rap 180 mm

414115200

$0.09

1030

RH Connector Support

710004644

$11.49

1035

Tie-Rap 180 mm

414115200

$0.09

1040

Torx Screw K50 X 16

250000720

$1.39

5140

Antenna

710005434

Unavailable

5142

Antenna Support

710005631

$58.99

5143

Flat Washer 10 mm

234001410

$0.98

5144

Flat Washer 5 mm, Stainless

234052600

$0.64

5150

Antenna Cable Ass'y

710005506

$105.99

5154

Clip Tie-Rap

293750063

$7.51

5155

Tie Wrap 142 mm

293750002

$0.88

7950

License Light | Includes 0an to 0an1

710001451

$76.49

7951

Rear Light

520001143

$74.60

7951

Non-fonctional Rear Tail-light

520001785

$121.99

7952

Screw M4 X 16

250000725

$2.87

7955

Flange Torx Screw K40 X 16

250000287

$1.74

8000

Trunk Light

710001533

$67.99

8010

Clip Bracket Connector (edge)

409210100

$1.94
