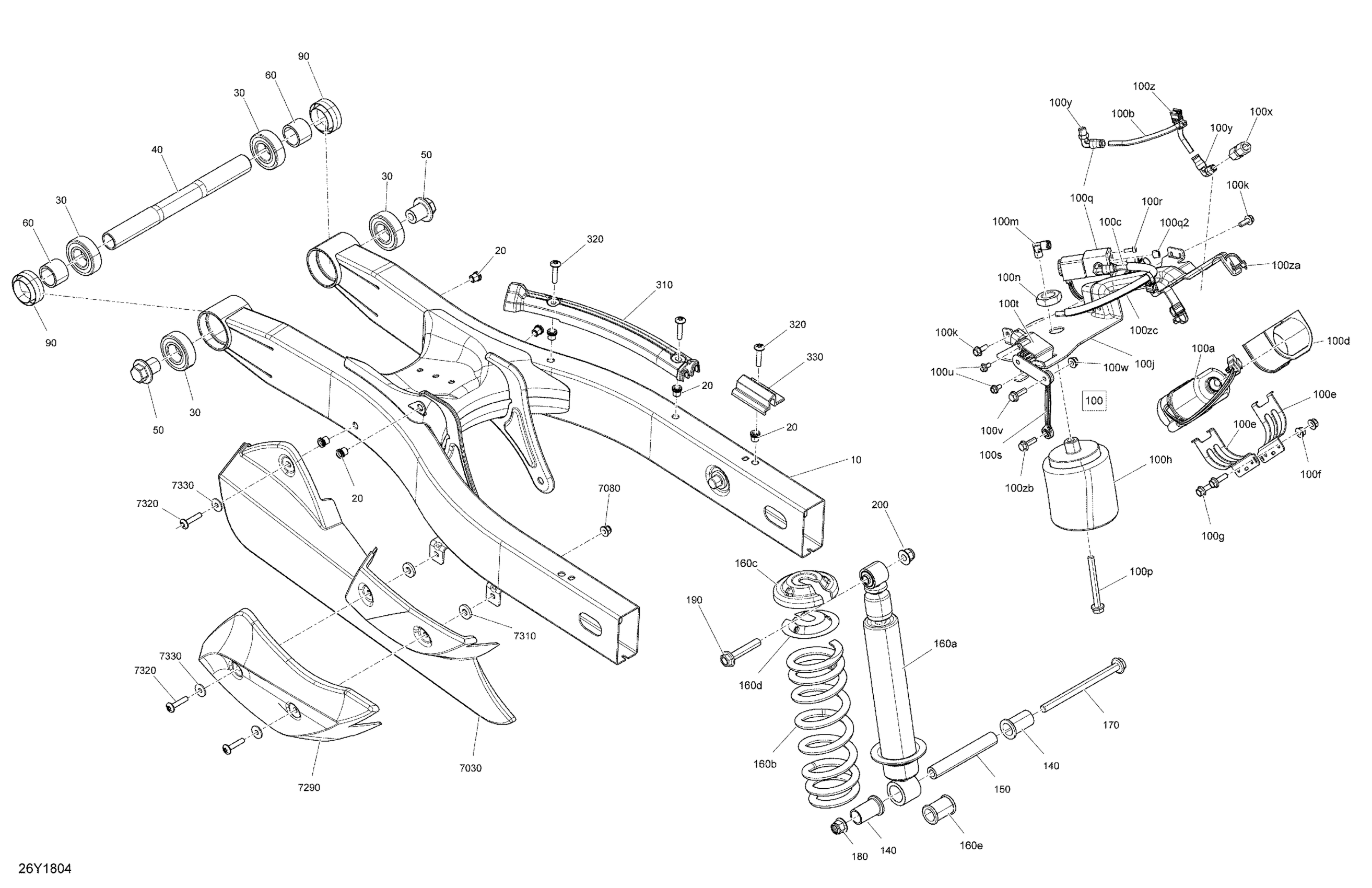

Can-Am F3 LTD SE6, 2018 Rear Suspension Diagram

#

Description
Price

10

Swing Arm

706001574

$456.00

20

Insert

293450275

$9.89

30

Ball Bearing

293350115

$11.15

40

Swing Arm Axle

706001182

$94.00

50

Bolt M20

706001579

$17.00

60

Spacer

706001152

$9.00

90

Sleeve

706001366

$1.00

100

Air Damper Kit

219800175

$291.00

100a

Compressor

706001349

$436.89

100b

Hose 4.32Mm 3000Mm Long

219704415

$44.17

100c

Hose 1/4

706001211

$17.66

100d

Compressor Isolator

706000631

$13.22

100e

Compressor Bracket

503193103

$4.42

100f

Hex. Flange Nut M6

233061414

$1.34

100g

Hex. Flange Screw M6 X 20

207662044

$1.66

100h

Air Damper Kit

219800175

$291.00

100j

Plate | Package LTD

706001767

$18.00

100k

Hex. Forming Screw M6 X 10

210261050

$1.42

100m

Elbow 90°

706001018

$29.00

100n

Jam Nut M20

250100119

$4.00

100p

Hex. Flange Screw M8 X 75

207687544

$7.23

100q

Pressure Collector Ass'y | Included 100r to 100r4

706002169

$300.00

100q2

Plug 1/8”-27

504151921

$3.97

100r

Socket Head Screw M4 X 12

205041254

$2.02

100s

Tie Rod

706202505

$24.00

100t

Position Sensor | Package LTD

710004600

$155.00

100u

Hex. Flange Screw M5 X 10

207551044

$3.38

100v

Hex. Flange Screw M6 X 20

207662044

$1.66

100w

Hex. Flange Nut M6

233061414

$1.34

100x

Ckeck Valve

706000831

$39.00

100y

Elbow 90°

706000928

$26.12

100z

Clip Tie-Rap

710002899

$8.45

100za

Tie-Rap 180 mm

414115200

$0.09

100zb

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

100zc

Tubing 6 Mm 3000Mm Long

219704425

$13.14

140

Spacer

706000410

$14.00

150

Shock Absorber Shaft

706000409

$50.00

160a

Shock

706001706

$137.00

160b

Spring

706001707

$50.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160e

Urethane Cushion

503191609

$18.00

170

Hex. Flange Screw M10 X 140

230604034

$7.00

180

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

190

Hex. Flange Screw M10 X 55

207605554

$8.00

310

Protector

710004281

$26.00

320

Torx Truss Screw M6 X 30

250000843

$1.74

330

Hose Support

710002145

$8.00

7030

Lower Belt Guard

705002092

$49.00

7080

Hex. Flange Elastic Nut M6

233261494

$1.26

7290

Belt Guard Moulding

705009446

$36.00

7310

Adhesive Spacer

705003696

$4.00

7320

Stainless, Torx Screw M6 X 30

250000842

$1.74

7330

Stainless Steel Flat Washer

234062670

$1.74
