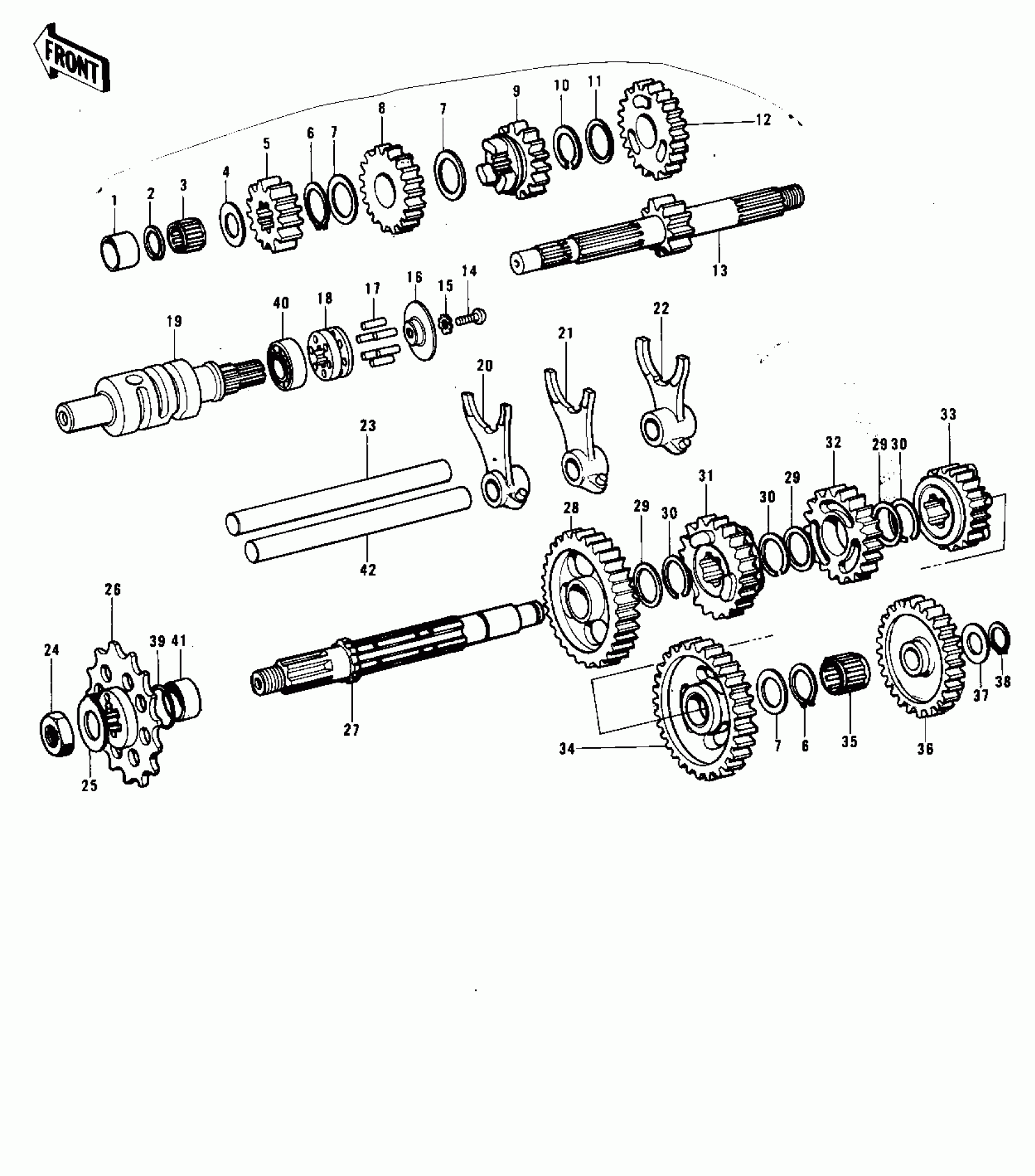

Kawasaki F12MX TRANSMISSION/CHANGE DRUM & FORKS ('73 F Diagram
#
1
BUSHING,23X30X13
92028-132
$38.06
2
CIRCLIP 17MM
92033-009
Unavailable
3
BEARING,BALL,KT17231
92046-035
$12.33
4
WASHER,17.3X28X1
92022-255
$8.58
5
2ND GEAR,DRIVE SHAFT
13130-035
Unavailable
6
CIRCLIP-TYPE-C,19MM
480J1900
$1.28
7
WASHER,20.5X25.5X0.5
92022-252
$6.22
8
4TH GEAR,DRIVE SHAFT
13134-019
Unavailable
9
3RD GEAR,DRIVE SHAFT
13132-034
Unavailable
10
CIRCLIP
92033-027
$4.94
11
WASHER
92022-254
$3.25
12
TOP GEAR,DRIVE SHAFT
13136-045
Unavailable
13
SHAFT,DRIVE
13127-044
Unavailable
14
SCREW
92011-031
$1.61
15
WASHER LOCK 6MM
464H0600
Unavailable
16
HOLDER,CHANGE DRUM PIN
13142-014
$20.79
17
PIN,DOWEL,4X16.8
92042-029
$5.71
18
DISC,CHNG DRUM OPRTNG
13145-003
Unavailable
19
DRUM,GEAR CHANGE
13141-037
Unavailable
20
FORK,SELECTOR
13140-055
Unavailable
21
FORK,SELECTOR
13140-056
Unavailable
22
FORK,SELECTOR
13140-057
Unavailable
23
ROD,CLUTCH RELEASE
13209-012
Unavailable
24
NUT,18MM
92015-019
$7.22
25
WASHER,LOCK,18MM
92024-067
Unavailable
26
ENGINE SPROCKET 15T
13144-050
Unavailable
26
ENGINE SPROCKET 14T
13144-051
Unavailable
28
2ND GEAR,OUTPUT SHAF
13131-042
Unavailable
29
WASHER
92022-253
$4.55
30
RING-SNAP,24MM
92033-026
$8.79
31
4TH GEAR,OUTPUT SHAF
13135-023
Unavailable
32
3RD GEAR,OUTPUT SHAFT
13133-034
Unavailable
33
TOP GEAR,OUTPUT SHAF
13137-028
Unavailable
34
LOW GEAR,OUTPUT SHAF
13129-049
Unavailable
35
BEARING-NEEDLE,KT202614
92046-1170
$18.16
36
IDLE GEAR
13073-010
Unavailable
37
WASHER-THRUST
92022-197
Unavailable
38
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
39
RING-O
92055-035
$5.00
40
BEARING-BALL,#6203ZC3
601B6203Z
$27.81
41
COLLAR-ENG SPROKET
92027-163
Unavailable
42
ROD,SHIFT
13209-013
Unavailable
