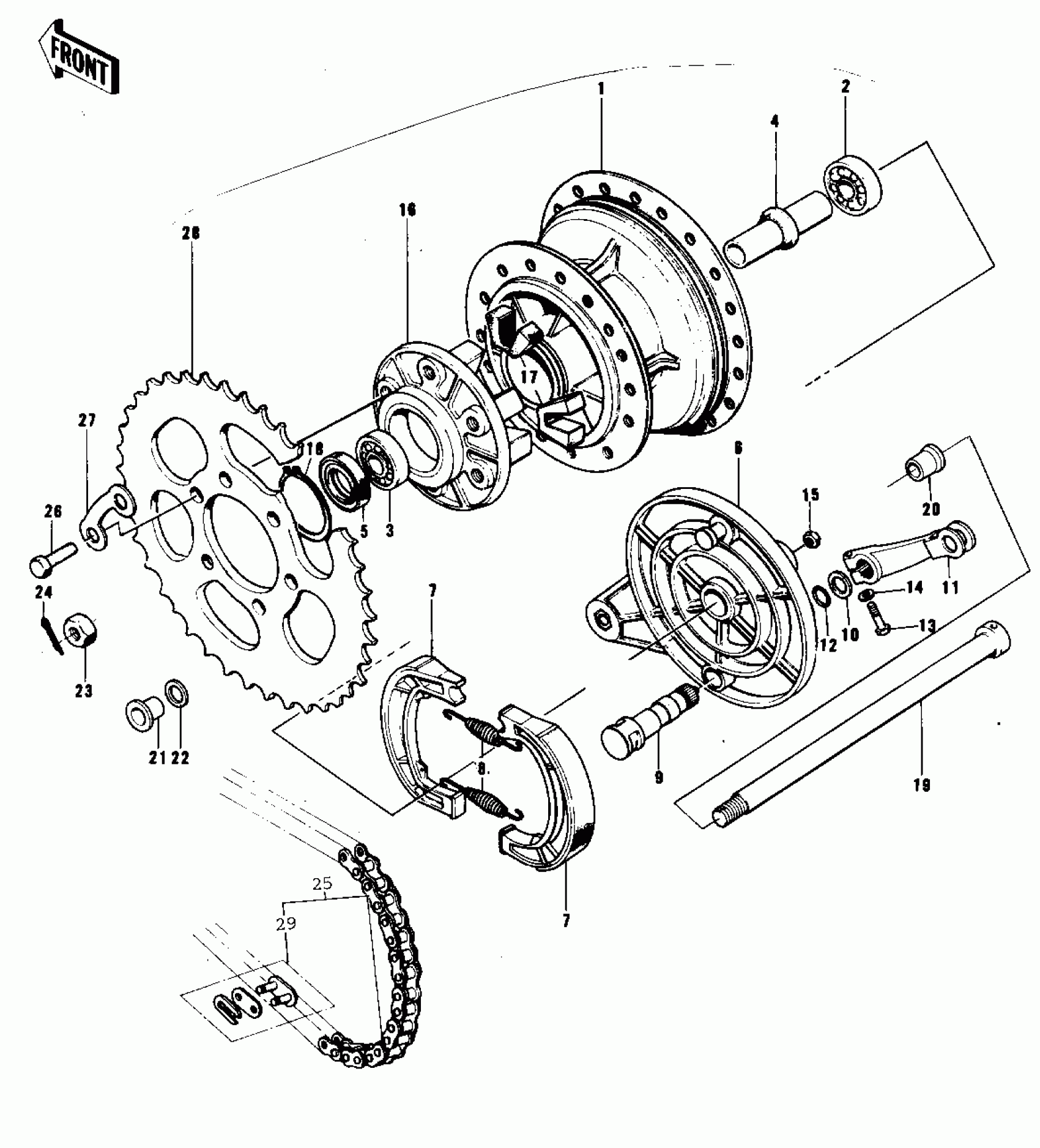

Kawasaki F12MX REAR HUB/BRAKE/CHAIN ('73 F12MX 450) Diagram

#

Description
Price

1~5

DRUM ASSY REAR BRAKE

42005-036

$507.66

2

BEARING,BALL, #6202

92045-027

Unavailable

3

BEARING,BALL, #6302

92045-028

Unavailable

4

COLLAR,REAR HUB BRNG

42010-024

$21.53

5

OIL SEAL,TB22427

653A22427

$7.29

6~15

COUPLING ASSY,REAR BRAKES

42006-035

Unavailable

7

SHOE,BRAKE

42019-011

$37.39

8

SPRING,BRAKE SHOE

42020-004

$8.51

9

CAM SHAFT,BRAKE CAM

42026-013

$48.22

10

WASHER

92022-258

Unavailable

11

LEVER,REAR BRAKE CAM

42029-037

Unavailable

12

O RING,15MM

670B2015

$1.49

13

BOLT-UPSET,6X40

112G0640

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

15

NUT 6MM

311B0600

Unavailable

16~18

UNAVAILABLE IN PRICE BOOK

42008-015

Unavailable

17

SHOCK DAMPER

42014-022

$13.08

18

CIRCLIP,50MM

480J5000

$8.88

19

AXLE,REAR

42031-044

$39.93

20

COLLAR,REAR AXLE

42032-041

$7.12

21

COLLAR,REAR AXLE

42032-042

$6.59

22

WASHER

92022-260

$8.75

23

NUT-CASTLE,14MM

320B1400

Unavailable

24

PIN-COTTER,3.0X25

550D3025

Unavailable

25

DR CHAIN 520X102

92057-023

$77.61

26

BOLT-HEA HEAD,8X20

92001-086

Unavailable

27

WASHER-LOCK

92088-013

$23.27

28

REAR SPROCKET,43T

42041-129

$144.74

29

92058-1051 (Canada)

92058-020

$9.93
